类似于百度图谱jQuery特效

版权：原创 更新时间：1年以上
[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 类似于百度图谱jQuery特效 的示例演示效果:

当前平台(PC电脑)
  • 平台:
整屏预览

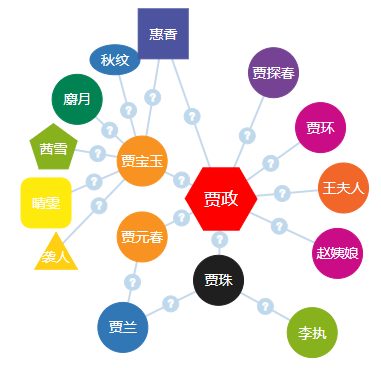

部分效果截图:

类似于百度图谱jQuery特效

HTML代码(index.html):

<!DOCTYPE html>
<html>

<head>
<meta http-equiv="Content-Type" content="text/html; charset=UTF-8">
<title>jQuery</title>
<script id="others_raphael_210" type="text/javascript" class="library" src="js/raphael-min.js"></script>
<script id="jquery_172" type="text/javascript" class="library" src="js/jquery-1.7.2.min.js"></script>
<link href="css/zzsc.css" rel="stylesheet" type="text/css" />
</head>

<body>
<center>
<table>
	<tr>
		<td valign="top">
		<div id="svg-container-view">
		</div>
		</td>
	</tr>
</table>
</center>
<script type="text/javascript" src="js/zzsc.js"></script>
</body>
</html>

JS代码(zzsc.js):

var Relation = (function(){
	var _uuid = 0;
	function CloudRelation(opt){
	'use strict';
	var _DEFAULT ={
	node:'',width:600,height:400,mode:'edit'}
;
	this.cfg = this.merge(_DEFAULT,opt);
	this.eventHandlers = [];
	this.cache ={
}
;
	this._init();
}
CloudRelation.prototype ={
	constructor:CloudRelation,_init:function(){
	var self = this,cfg = self.cfg,w=cfg.width,h=cfg.height;
	node = self.dom().get(cfg.node);
	node.width(w);
	node.height(h);
	var divId = 'cloudSpectrum-'+self._guid();
	node.html('<div id="'+divId+'"></div>');
	self.paper = Raphael(divId,w,h);
	//self.paper.rect(0,0,w,h,10).attr({
	'stroke':"#666"}
);
	//Rapheal插件扩展Raphael.fn.connection = function (obj1,obj2,nodeOption){
	var line;
	if (obj1.line && obj1.from && obj1.to){
	line = obj1;
	obj1 = line.from;
	obj2 = line.to;
}
var bb1 = obj1.getBBox(),bb2 = obj2.getBBox(),po = [{
	x:bb1.x + bb1.width / 2,y:bb1.y + bb1.height / 2}
,{
	x:bb2.x + bb2.width / 2,y:bb2.y + bb2.height / 2}
,{
	x:bb2.x + bb2.width / 2,y:bb2.y + bb2.height / 2}
],poc ={
	x:(po[1].x + po[0].x)/2,y:(po[1].y + po[0].y)/2}
;
	//var path = ["M",x1.toFixed(3),y1.toFixed(3),"L",x2,y2,x3,y3,x4.toFixed(3),y4.toFixed(3)].join(",");
	var path = ["M",po[0].x,po[0].y,"L",po[1].x,po[1].y].join(",");
	if (line && line.line){
	line.line.toBack().attr({
	path:path}
);
	line.lineNode.attr({
	x:poc.x,y:poc.y,cx:poc.x,cy:poc.y}
);
}
else{
	var color = typeof line == "string" ? line:"#000";
	return{
	line:this.path(path).toBack().attr({
	'stroke':'#C6D9EC','stroke-width':'2px',fill:"none"}
),from:obj1,to:obj2,lineNode:self.paper.set().push(this.circle(poc.x,poc.y,8).attr({
	fill:'#BED8EC',stroke:'#C6D9EC'}
),this.text(poc.x,poc.y,'?').attr({
	stroke:'#fff',cursor:'pointer'}
)),lineOpt:nodeOption}
;
}
}
;
}
,render:function(data){
	var self = this,cfg = self.cfg,dom = self.dom(),r = self.paper;
	self.connections = [],self.shapes = [];
	//svg形状集合 self.flatData = [];
	//平面数据(非树状) self.data = data;
	self.cache ={
}
;
	self.cache.w = cfg.width;
	//画布宽 self.cache.h = cfg.height;
	//画布高 self.objects ={
}
;
	//所有元素缓存var shapes = self.shapes,cache = self.cache,objs = self.objects,flatData = self.flatData;
	//样式var CENTER_STYLE ={
	'fill':'#5782C2','stroke':'#5782C2'}
,TEXT_STYLE ={
	'fill':'#fff','font-size':'14px','font-weight':'400'}
;
	//极径var min = Math.round(Math.max(cache.w,cache.h)/6),circleRadius = Math.round(min/4);
	self.circleRadius = circleRadius;
	var _stack = [],levelStack=[],level=1;
	_stack.push(data);
	draw(_stack);
	//绘制var ms=false,tar,mar,tardata,delay = false;
	function dragger(){
	if(this.data('setIndex') && this.data('dataIndex') != undefined){
	tar = shapes[this.data('setIndex')];
	tardata = flatData[this.data('dataIndex')];
	var btar = tar.getBBox();
	mar ={
}
;
	ms = true;
	mar.ox = btar.x;
	mar.oy = btar.y;
	mar.cox = btar.x + btar.width / 2;
	mar.coy = btar.y + btar.height / 2;
}
}
function move(dx,dy){
	if(ms){
	var finalx = mar.cox + dx,finaly = mar.coy + dy;
	var att ={
	'x':finalx,'y':finaly,'cx':finalx,'cy':finaly}
;
	if(!delay){
	tar.attr(att);
	tardata.theta = Raphael.rad(Raphael.angle(finalx,finaly,cache.w/2,cache.h/2));
	tardata.radius = self._computeLength(cache.w/2,cache.h/2,finalx,finaly);
	delay = true;
	setTimeout(function(){
	delay = false;
}
,40);
}
for (var i = connections.length;
	i--;
	){
	r.connection(connections[i]);
}
r.safari();
}
}
function up(){
	if(ms){
	ms = false;
}
}
for(var i = 0,ii = shapes.length;
	i < ii;
	i++){
	var color = Raphael.getColor();
	var s = shapes[i];
	s.attr({
	cursor:"pointer"}
);
	if(cfg.mode == 'edit'){
	s.attr({
	cursor:"move"}
);
	s.drag(move,dragger,up);
	//拖动}
(function(sha){
	sha.mouseover(function (){
	sha.stop().animate({
	transform:"s1.2 1.2"}
,500,"backOut");
}
).mouseout(function (){
	sha.stop().animate({
	transform:""}
,500,"backOut");
}
);
	if(cfg.mode == 'view'){
	sha.click(function(e){
	var di = this.data('dataIndex');
	self._publish('nodeClick',{
	x:e.pageX,y:e.pageY,id:flatData[di].id}
);
}
);
}
else{
	sha.dblclick(function(e){
	var di = this.data('dataIndex');
	self._publish('nodeClick',{
	x:e.pageX,y:e.pageY,id:flatData[di].id}
);
}
);
}
}
)(s);
}
var connections = [];
	connect(data,data.childNodes);
	function connect(parent,children,pc){
	var pobj = objs[parent.id];
	if(children.length > 0){
	for(var i=0;
	i<children.length;
	i++){
	if(children[i]){
	var child = children[i],id = child.id,obj = objs[id];
	connections.push(r.connection(shapes[pobj.index],shapes[obj.index],{
	pid:parent.id,id:id}
));
	connect(child,child.childNodes);
}
}
}
}
for (var i = 0,ii = connections.length;
	i < ii;
	i++){
	var cs = connections[i];
	(function(cln,opt){
	if(cln){
	cln.mouseover(function (){
	cln.stop().animate({
	'transform':"s1.2 1.2"}
,500,"backOut");
}
).mouseout(function (){
	cln.stop().animate({
	'transform':""}
,500,"backOut");
}
);
	cln.click(function(e){
	var clickX = e.pageX;
	var clickY = e.pageY;
	self._publish('relationClick',{
	x:clickX,y:clickY,id:opt.id,parentId:opt.pid}
);
}
);
}
}
)(cs.lineNode,cs.lineOpt);
}
/** * 遍历绘制节点 *@param 栈(先进后出) */
function draw(stack){
	var pc = 0;
	while(stack.length>0){
	var node = stack.shift();
	if(node){
	if(node.parent == 0){
	//根节点var x = cache.w/2,y = cache.h/2;
	//中心点var idx = self.shapes.length;
	var sha = drawShape(node.shape+'',[x,y],circleRadius*1.2);
	sha.attr({
	'fill':node.color,'stroke':node.color}
).data('setIndex',idx);
	shapes.push(r.set().push(sha,r.text(x,y,node.name).attr(TEXT_STYLE).data('setIndex',idx).data('dataIndex',idx)));
	objs[node.id] ={
	'x':x,'y':y,'theta':0,'index':0}
;
	node.theta = 0;
	node.radius = 0;
	flatData.push(self.clone(node));
	//第一层节点if(node.childNodes.length > 0){
	levelStack.push(node.childNodes.length);
}
drawChildNode({
	x:x,y:y}
,node.childNodes);
	stack = stack.concat(node.childNodes);
	level++;
}
else{
	var pos = objs[node.id];
	//var x = pos.x,y = pos.y;
	//var rad = Math.round(circleRadius),idx = self.shapes.length;
	if(pc == levelStack[0]){
	levelStack.shift();
	pc = 0;
	level++;
	levelStack.push(node.childNodes.length);
}
else{
	if(levelStack[1]){
	levelStack[1] = levelStack[1] + node.childNodes.length;
}
else{
	levelStack[1] = node.childNodes.length;
}
}
drawChildNode(pos,node.childNodes);
	stack = stack.concat(node.childNodes);
	pc++;
}
}
}
}
/** * 绘制子节点 *@param pos 父节点位置对象,x,y坐标和极角 *@param chidren 子节点数组 *@param angle 极角 */
function drawChildNode(pos,children){
	if(!children.length){
	return;
}
var len = children.length,averWeight = self._getAverageWeight(children);
	if(pos.theta !== undefined){
	//var averAngle = Math.atan(circleRadius*2.2/polarRadius);
	//var averAngle = Math.PI/6;
	//var a0 = Math.PI/2 - averAngle*(len-1)/2 - pos.theta;
	var averAngle = Math.PI/len;
	if(level == 2){
	averAngle = Math.PI/10;
}
if(level == 3){
	if(averAngle>Math.PI/24){
	averAngle = Math.PI/24;
}
}
var a0 = averAngle*(len-1)/2 - pos.theta;
	//var rad =polarRadius + cache.level*circleRadius;
	for(var i=0;
	i<len;
	i++){
	//var rad =polarRadius*children[i].weight/averWeight;
	drawSingleNode(children[i],pos,(level*3.5)*circleRadius,-a0+i*averAngle);
}
}
else{
	//第一层子节点场合var averAngle = 2*Math.PI/len;
	for(var i=0;
	i<len;
	i++){
	//var rad =polarRadius*children[i].weight/averWeight;
	drawSingleNode(children[i],pos,(level*3.5)*circleRadius,i*averAngle);
}
}
}
/** * 绘制单个节点 *@param pos 父节点位置对象 *@param rad 极径 *@param angle 极角 */
function drawSingleNode(node,pos,rad,angle){
	if(objs[node.id]){
	return;
}
var index = flatData.length;
	var p,idx = self.shapes.length;
	if(cfg.mode == 'edit'){
	p = self._polarToXY(pos,rad,angle);
}
else{
	p = self._polarToXY(pos,node.radius,node.theta);
}
var nodeShape;
	if(cfg.mode == 'edit'){
	nodeShape = drawShape('3',p,circleRadius).attr({
	'fill':node.color,'stroke':node.color}
).data('setIndex',idx);
}
else{
	nodeShape = drawShape(node.shape+'',p,circleRadius).attr({
	'fill':node.color,'stroke':node.color}
).data('setIndex',idx);
}
shapes.push(r.set().push(nodeShape,r.text(p[0],p[1],node.name).attr(TEXT_STYLE).data('setIndex',idx).data('dataIndex',index)));
	objs[node.id] ={
	'x':p[0],'y':p[1],'theta':angle,'index':idx}
;
	node.theta = angle;
	node.radius = rad;
	flatData.push(self.clone(node));
}
function drawShape(shapeType,p,circleRadius){
	var shape;
	switch(shapeType){
	case '1':shape = r.rect(p[0]-circleRadius,p[1]-circleRadius,circleRadius*2,circleRadius*2);
	break;
	case '2':shape = r.ellipse(p[0],p[1],circleRadius,circleRadius*0.6);
	break;
	case '3':shape = r.circle(p[0],p[1],circleRadius);
	break;
	case '4':shape = drawPentagonal(p[0],p[1],circleRadius);
	break;
	case '5':shape = drawTriangle(p[0],p[1],circleRadius);
	break;
	case '6':shape = drawHexagon(p[0],p[1],circleRadius);
	break;
	case '7':shape = r.rect(p[0]-circleRadius,p[1]-circleRadius,circleRadius*2,circleRadius*2,10);
	break;
	default:shape = r.circle(p[0],p[1],circleRadius);
	break;
}
;
	return shape;
}
//三角形function drawTriangle(x,y,rad){
	var cos = rad*Math.cos(Math.PI/3),sin = rad*Math.sin(Math.PI/3);
	var x1 = x-sin,y1 = y+cos,x2 = x+sin,y2 = y+cos,x3 = x,y3 = y-rad;
	var path = ['M',x1,y1,'L',x2,y2,'L',x3,y3].join(' ');
	return r.path(path);
}
//五角形function drawPentagonal(x,y,rad){
	var cos36 = rad*Math.cos(36*Math.PI/180),sin36 = rad*Math.sin(36*Math.PI/180),cos18 = rad*Math.cos(18*Math.PI/180),sin18 = rad*Math.sin(18*Math.PI/180);
	var x1 = x-sin36,y1 = y+cos36,x2 = x+sin36,y2 = y+cos36,x3 = x+cos18,y3 = y-sin18,x4 = x,y4 = y-rad,x5 = x-cos18,y5 = y-sin18;
	var path = ['M',x1,y1,'L',x2,y2,'L',x3,y3,'L',x4,y4,'L',x5,y5].join(' ');
	return r.path(path);
}
//六角形function drawHexagon(x,y,rad){
	var cos30 = rad*Math.cos(Math.PI/6),sin30 = rad*Math.sin(Math.PI/6);
	var x1 = x-sin30,y1 = y+cos30,x2 = x+sin30,y2 = y+cos30,x3 = x+rad,y3 = y,x4 = x+sin30,y4 = y-cos30,x5 = x-sin30,y5 = y-cos30,x6 = x-rad,y6 =y;
	var path = ['M',x1,y1,'L',x2,y2,'L',x3,y3,'L',x4,y4,'L',x5,y5,'L',x6,y6].join(' ');
	return r.path(path);
}
}
,save:function(){
	var self = this,result=[];
	for(var i=self.flatData.length-1;
	i>=0;
	i--){
	var item = self.flatData[i];
	result.push(item);
}
return result;
}
,preview:function(){
	var self = this,data=self.data,flatData=self.flatData;
	function iterate(nodes){
	for(var i=0,ii=nodes.length;
	i<ii;
	i++){
	var cur = nodes[i];
	for(var j=0;
	j<flatData.length;
	j++){
	if(cur.id == flatData[j].id){
	cur.theta = flatData[j].theta;
	cur.radius = flatData[j].radius;
}
iterate(cur.childNodes);
}
}
}
iterate([data]);
	return data;
}
,on:function(type,func){
	var self = this;
	self.eventHandlers[type] = func;
}
,_publish:function(type,data){
	var self = this,handlers = self.eventHandlers;
	if(handlers[type]){
	handlers[type].call(null,data);
}
}
,//generate global unique id_guid:function(){
	return ++_uuid;
}
,//极坐标转直角坐标_polarToXY:function(pos,rad,angle){
	var self = this,cache = self.cache,x = cache.w/2,y = cache.h/2,radis = self.circleRadius;
	//var a = Raphael.angle(x,y,pos.x+radis*Math.cos(angle),pos.y+radis*Math.sin(angle))*Math.PI/180;
	return [x+rad*Math.cos(angle),y+rad*Math.sin(angle)];
}
,//计算长度_computeLength:function(x1,y1,x2,y2){
	return Math.sqrt((x1-x2)*(x1-x2)+(y1-y2)*(y1-y2));
}
,//取得平均权值_getAverageWeight:function(arr){
	if(!arr.length) return 0;
	var sum=0;
	for(var i=0,ii=arr.length;
	i<ii;
	i++){
	sum += arr[i].weight;
}
return sum/arr.length}
,//mergemerge:function(obj1,obj2){
	return obj2;
}
,clone:function(obj){
	var objClone = new Object();
	for(var key in obj){
	if (Object.prototype.toString.call(obj[key]) == '[object Array]'){
	objClone[key] = [];
}
else{
	objClone[key] = obj[key];
}
}
return objClone;
}
,util:{
	substitute:function(str,obj){
	if (!(Object.prototype.toString.call(str) === '[object String]')){
	return '';
}
if(!(Object.prototype.toString.call(obj) === '[object Object]' && 'isPrototypeOf' in obj)){
	return str;
}
// https://developer.mozilla.org/en/JavaScript/Reference/Global_Objects/String/replacereturn str.replace(/\{
	([^{
}
]+)\}
/g,function(match,key){
	var value = obj[key];
	return ( value !== undefined) ? ''+value:'';
}
);
}
}
,//dom封装dom:function(){
	function Dom(){
	this.elements=[];
	EventTarget.call(this);
}
Dom.prototype ={
	constructor:Dom,_events:[],get:function(selector,parent){
	var element;
	if(typeof arguments[0]=="string"){
	element=arguments[0];
	var prefix=element.slice(0,1);
	if(prefix == '#'){
	element = document.getElementById(element.slice(1));
	this.elements.push(element);
}
else{
	if(document.querySelectorAll){
	this.elements.concat(document.querySelectorAll(element,parent.elements));
}
else{
	var es = document.body.getElementsByTagName('*');
	for (var i = 0,j = es.length;
	i < j;
	i++){
	if (element.indexOf(es[i].className) != -1){
	this.elements.push(es[i]);
}
}
}
}
}
else{
	element=this;
	this.elements.push(element);
}
return this;
}
,each:function(fn){
	for(var i=0,l=this.elements.length;
	i<l;
	i++){
	fn.call(this,this.elements[i],i);
}
return this;
}
,css:function(prop,v){
	if(v){
	this.each(function(el){
	el.style[prop]=v;
}
);
}
else{
	return this.elements[0].style[prop];
}
}
,width:function(v){
	if(v){
	this.elements[0].style.width = v;
	return this;
}
else{
	return this.elements[0].offsetWidth;
}
}
,height:function(v){
	if(v){
	this.elements[0].style.height = v;
	return this;
}
else{
	return this.elements[0].offsetHeight;
}
}
,html:function(ele){
	this.elements[0].innerHTML = ele;
}
,show:function(){
	this.each(function(el){
	el.style.display = 'block';
}
);
}
,hide:function(){
	this.each(function(el){
	el.style.display = 'none';
}
);
}
,ua:{
	ie:navigator.userAgent.indexOf("IE") < 0 ? false:true,firefox:navigator.userAgent.indexOf("Firefox") < 0 ? false:true,chrome:navigator.userAgent.indexOf("Chrome") < 0 ? false:true}
,bind:function(type,func){
	var me = this;
	this._events[type] = func;
	for(var i=0,l=this.elements.length;
	i<l;
	i++){
	var item = this.elements[i];
	if(item.addEventListener){
	item.addEventListener(type,proxyHandler,false);
}
else if (element.attachEvent){
	item.attachEvent('on'+type,proxyHandler);
}
}
function proxyHandler(event){
	event = event || window.event;
	var eve = new _Event(event);
	eve.type = event.type;
	eve.target = event.target || event.srcElement;
	eve.pageX = event.clientX || event.pageX;
	eve.pageY = event.clientY || event.pageY;
	eve.button = event.button&1?1:(event.button&2?3:(event.button&4?2:0));
	me._events[type].call(me,eve);
}
function _Event(eve){
	this.eve = eve;
}
return this;
}
,triggle:function(type,data){
	this.each(this._elements,function(i,item){
	if(item.fireEvent){
	item.fireEvent(type,data);
}
else if(item.dispatchEvent(event)){
	item.dispatchEvent(type,data);
}
}
);
}
}
;
	function EventTarget(){
	this.handlers ={
}
;
}
EventTarget.prototype ={
	constructor:EventTarget,on:function(type,handler){
	this.handlers[type] = [];
}
,fire:function(){
	if(!event.target){
	event.target = this;
}
if(this.handlers[event.type instanceof Array]){
	var handlers = this.handlers[event.type];
	for(var i = 0,len = handlers.length;
	i < len;
	i++){
	handlers[i](event);
}
}
}
,removeHandler:function(type,handler){
	if(this.handlers[type] instanceof Array){
	var handlers = this.handlers[type];
	for(var i = 0,le = handlers.length;
	i < len;
	i++){
	if(handlers[i] === handler){
	break;
}
handlers.splice(i,1);
}
}
}
}
;
	return new Dom();
}
}
;
	return CloudRelation;
}
)();
	//demo-----------------------------------------------var json ={
	"id":"300002","name":"贾政","parent":"0","type":"people","color":"#ff0000","shape":6,"weight":15,"childNodes":[{
	"id":"400008","name":"王夫人","parent":"300002","weight":10,"type":"place","color":"#F16729","shape":3,"childNodes":[],"theta":6.19362957852902,"radius":122.99288597313267}
,{
	"id":"400009","name":"赵姨娘","parent":"300002","weight":8,"type":"people","color":"#CA0D86","shape":3,"childNodes":[],"theta":0.4367522381672722,"radius":128.62980688052275}
,{
	"id":"400010","name":"贾珠","parent":"300002","weight":15,"type":"people","color":"#1F1F1F","shape":3,"childNodes":[{
	"id":"500001","name":"李执","parent":"400010","weight":15,"type":"people","color":"#87B11D","shape":3,"childNodes":[],"theta":0.9716902261718676,"radius":161.77903724144645}
,{
	"id":"500002","name":"贾兰","parent":"400010","weight":15,"type":"people","color":"#3277B5","shape":3,"childNodes":[],"theta":2.2233862545605643,"radius":161.63360848278398}
],"theta":1.6011731246062646,"radius":81.34371938233886}
,{
	"id":"400011","name":"贾元春","parent":"300002","weight":15,"type":"people","color":"#F89322","shape":3,"childNodes":[{
	"id":"500002","name":"贾兰","parent":"400011","weight":15,"type":"people","color":"#F16729","shape":3,"childNodes":[],"theta":2.2233862545605643,"radius":161.63360848278398}
],"theta":2.6927937030769655,"radius":87.5}
,{
	"id":"400012","name":"贾宝玉","parent":"300002","weight":15,"type":"people","color":"#F89322","shape":3,"childNodes":[{
	"id":"500003","name":"袭人","parent":"400012","weight":15,"type":"people","color":"#FFCF14","shape":5,"childNodes":[],"theta":2.8049934407051724,"radius":175}
,{
	"id":"500004","name":"晴雯","parent":"400012","weight":15,"type":"people","color":"#FFEA0D","shape":7,"childNodes":[],"theta":3.1191527060641517,"radius":175}
,{
	"id":"500005","name":"茜雪","parent":"400012","weight":15,"type":"people","color":"#87B11D","shape":4,"childNodes":[],"theta":3.433311971423131,"radius":175}
,{
	"id":"500006","name":"麝月","parent":"400012","weight":15,"type":"people","color":"#008253","shape":3,"childNodes":[],"theta":3.7474712367821104,"radius":175}
,{
	"id":"500007","name":"秋纹","parent":"400012","weight":15,"type":"people","color":"#3277B5","shape":2,"childNodes":[],"theta":4.06163050214109,"radius":175}
,{
	"id":"500008","name":"惠香","parent":"400012","weight":15,"type":"people","color":"#4C549F","shape":1,"childNodes":[{
	"id":"300002","name":"贾政","parent":"500008","weight":15,"type":"people","color":"#F16729","shape":3,"childNodes":[],"theta":0,"radius":0}
],"theta":4.375789767500069,"radius":175}
],"theta":3.5903916041026207,"radius":87.5}
,{
	"id":"400013","name":"贾探春","parent":"300002","weight":15,"type":"people","color":"#764394","shape":3,"childNodes":[],"theta":5.1065177117467995,"radius":136.79398387991748}
,{
	"id":"400014","name":"贾环","parent":"300002","weight":15,"type":"people","color":"#CA0D86","shape":3,"childNodes":[],"theta":5.6609480473483424,"radius":122.51813628166745}
],"theta":0,"radius":0}
;
	var nodeData ={
	"content":[{
	"docName":"站长素材","docScore":"","docUrl":"","docId":"138877","createDate":"2013-04-02 08:54:28"}
,{
	"docName":"站长脚本","docScore":"","docUrl":"","docId":"130711","createDate":"2013-03-30 08:40:06"}
,{
	"docName":"站长之家","docScore":"","docUrl":"","docId":"134046","createDate":"2013-04-01 08:29:50"}
,{
	"docName":"jQuery特效”","docScore":"","docUrl":"","docId":"142958","createDate":"2013-04-03 08:19:56"}
],"totalcount":15}
;
	var relation = new Relation({
	node:'#svg-container-view',width:600,height:400,mode:'view'}
);
	relation.render(json);
	relation.on('nodeClick',function(e){
	//e:{
	x:967,y:371,id:"500001",parentId:"400010"}
showNews(e);
}
);
	relation.on('relationClick',function(e){
	//e:{
	x:967,y:371,id:"500001",parentId:"400010"}
showNews(e);
}
);
	function showNews(e){
	var cd = nodeData.content,template = '<li class="newsItem"><a target="_blank" href="{
	docUrl}
" title="{
	docName}
">{
	docName}
</a></li>';
	$('#newsPanel').remove();
	$('<div id="newsPanel"><span class="arrow"></span><span class="arrow2"></span><ul></ul><span class="close">×</span></div>').appendTo($(document.body));
	var np = $('#newsPanel'),ul = np.find('ul');
	for(var i=cd.length-1;
	i>=0;
	i--){
	$(relation.util.substitute(template,cd[i])).appendTo(ul);
}
np.css({
	left:e.x+20,top:e.y-np.height()/2-10}
);
	var close = np.find('.close');
	close.on('click',function(){
	np.remove();
}
);
}

CSS代码(zzsc.css):

button{border:1px solid #ccc;cursor:pointer;display:block;margin:auto;position:relative;top:100px;}
#forkongithub a{background:#000;color:#fff;text-decoration:none;font-family:arial,sans-serif;text-align:center;font-weight:bold;padding:5px 40px;font-size:1rem;line-height:2rem;position:relative;transition:0.5s;}
#forkongithub a:hover{background:#060;color:#fff;}
#forkongithub a::before,#forkongithub a::after{content:"";width:100%;display:block;position:absolute;top:1px;left:0;height:1px;background:#fff;}
#forkongithub a::after{bottom:1px;top:auto;}
@media screen and (min-width:800px){#forkongithub{position:absolute;display:block;top:0;right:0;width:200px;overflow:hidden;height:200px;}
#forkongithub a{width:200px;position:absolute;top:60px;right:-60px;transform:rotate(45deg);-webkit-transform:rotate(45deg);box-shadow:4px 4px 10px rgba(0,0,0,0.8);}
}
#newsPanel{position:absolute;left:0;top:0;background:#fff;border:1px #000 solid;padding:10px;width:300px;font-size:14px;}
#newsPanel .arrow{position:absolute;width:0;height:0;border:15px dashed transparent;border-right:15px solid #000;top:50%;margin-top:-15px;margin-left:-40px;}
#newsPanel .arrow2{position:absolute;width:0;height:0;border:15px dashed transparent;border-right:15px solid #fff;top:50%;margin-top:-15px;margin-left:-39px;}
#newsPanel ul,#newsPanel li{margin:0;padding:0;}
#newsPanel li{list-style:none;display:block;margin-top:4px;margin-bottom:4px;width:280px;height:16px;overflow:hidden;text-overflow:ellipsis;}
#newsPanel a{text-decoration:none;}
#newsPanel .close{position:absolute;right:10px;top:0;width:10px;height:10px;font-size:20px;cursor:pointer;}
附件:下载该文件资源,减少时间成本(增值服务)
File Source
.rar
69.33 KB
立即下载(CNY 2.9￥)
打赏 收藏
分享
分享到QQ 分享到微博 微信扫一扫
留言
该资源可下载
File Source
.rar
69.33 KB
立即下载
卢影希
了解
打赏作者 鼓励作者
Html CSS3特效
最新结算
jquery虚拟键盘中文打字效果js代码
类型: .rar 金额: CNY 2.31￥ 状态: 待结算 详细>
jquery虚拟键盘中文打字效果js代码
类型: .rar 金额: CNY 0.29￥ 状态: 待结算 详细>
HTML5实现CSS滤镜图片切换特效代码
类型: .rar 金额: CNY 2.31￥ 状态: 待结算 详细>
jQuery头像裁剪插件cropbox js代码
类型: .rar 金额: CNY 0.29￥ 状态: 待结算 详细>
jQuery头像裁剪插件cropbox js代码
类型: .rar 金额: CNY 2.31￥ 状态: 待结算 详细>
CSS3制作3D图片立方体旋转特效
类型: .rar 金额: CNY 2.31￥ 状态: 待结算 详细>
CSS3制作3D图片立方体旋转特效
类型: .rar 金额: CNY 0.29￥ 状态: 待结算 详细>
CSS3制作3D图片立方体旋转特效
类型: .rar 金额: CNY 2.31￥ 状态: 待结算 详细>
CSS3制作3D图片立方体旋转特效
类型: .rar 金额: CNY 0.29￥ 状态: 待结算 详细>
jQuery+css3实现信封效果
类型: .rar 金额: CNY 0.29￥ 状态: 待结算 详细>
我们力求给您提供有用的文章,再此基础上,会附加营收资源,不做任何广告,让平台可以更好发展 若您发现您的权利被侵害，或使用了您的版权，请发邮件联系 sunlifel@foxmail.com ggbig觉得 : 不提供源码的文章不是好文章
合作伙伴
帮助中心
联系我们
  • QQ：21499807
  • 邮箱：sunlifel@foxmail.com
  • QQ扫一扫加QQ
    QQ扫一扫
Copyright 2023-2024 ggbig.com·皖ICP备2023004211号-1
打赏文章
