以下是 JS+CSS3实现苹果iwatch计时器 的示例演示效果:

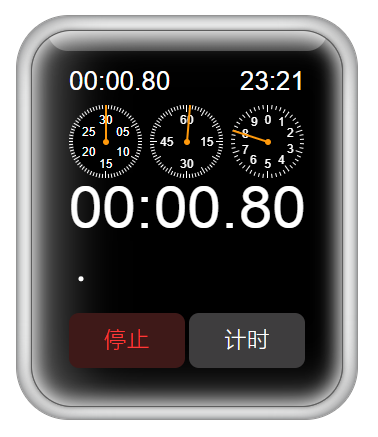

部分效果截图:
HTML代码(index.html):
<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>牛人js防苹果iwatch计时器</title>
<link href="css/zzsc.css" rel="stylesheet" type="text/css">
</head>
<body>
<div class="container">
<div class="frame">
<div class="go pause" id="watch">
<div class="blur-top"></div>
<div class="face">
<div class="row-1">
<div class="timer">
<span id="timer_min">00</span>
<span>:</span>
<span id="timer_sec">01</span>
<span>.</span>
<span id="timer_mil">44</span>
</div>
<div class="time">
<span id="time_mins">14</span>
<span>:</span>
<span id="time_hours">17</span>
</div>
</div>
<div class="row-2">
<div class="clock c c1">
<i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i>
<span class="inner-cover"></span>
<i></i><i></i><i></i>
<span class="outer-cover"></span>
<div class="ns ns1">
<b>05</b><b>10</b><b>15</b><b>20</b><b>25</b><b>30</b>
</div>
<span class="pin"></span>
<span class="hand"></span>
</div>
<div class="clock c c2">
<i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i>
<span class="inner-cover"></span>
<i></i><i></i><i></i><i></i><i></i><i></i>
<span class="outer-cover"></span>
<div class="ns ns2">
<b>15</b><b>30</b><b>45</b><b>60</b>
</div>
<span class="pin"></span>
<span class="hand"></span>
</div>
<div class="clock d c3">
<i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i><i></i>
<span class="inner-cover"></span>
<i></i><i></i><i></i><i></i><i></i>
<span class="outer-cover"></span>
<div class="ns ns3">
<b>1</b><b>2</b><b>3</b><b>4</b><b>5</b><b>6</b><b>7</b><b>8</b><b>9</b><b>0</b>
</div>
<span class="pin"></span>
<span class="hand"></span>
</div>
</div>
<div class="row row-3">
<div class="lap_timer">
<span id="lap_min">00</span>
<span>:</span>
<span id="lap_sec">00</span>
<span>.</span>
<span id="lap_mil">63</span>
</div>
</div>
<div class="canvasContainer">
<canvas id="graph" width="185" height="73"></canvas>
</div>
<div id="avg_time"></div>
<div class="lap_numbers_container">
<div id="lap_numbers"></div>
</div>
<div class="ctrls">
<a class="" href="#start" id="start">开始</a>
<a href="#stop" id="stop" class="hide">停止</a>
<a href="#reset" id="reset" class="">重置</a>
<a class="hide" href="#lap" id="lap">计时</a>
</div>
</div>
</div>
</div>
</div>
<script type="text/javascript" src="js/zzsc.js"></script>
</body>
</html>JS代码(zzsc.js):
if (document.location.search.match(/type=embed/gi)){
window.parent.postMessage('resize',"*");
}
window.requestAnimFrame = (function (callback){
return window.requestAnimationFrame || window.webkitRequestAnimationFrame || window.mozRequestAnimationFrame || window.oRequestAnimationFrame || window.msRequestAnimationFrame ||function (callback){
window.setTimeout(callback,1000 / 60);
}
;
}
)();
var graph ={
'state':{
'pause':false,'inUse':false,'lapNum':1}
,'markerStyle':{
'green':'#67d276','red':'#f73748'}
,'coords':{
'x':5,'y':50,'prev':{
'x':0,'y':60}
}
,'msc':{
'fastestLap':0,'slowestLap':99999999,'startTime':0}
}
;
//����Ԫ��var lap_mil = document.getElementById('lap_mil'),lap_sec = document.getElementById('lap_sec'),lap_min = document.getElementById('lap_min'),timer_mil = document.getElementById('timer_mil'),timer_sec = document.getElementById('timer_sec'),timer_min = document.getElementById('timer_min'),watch = document.getElementById('watch'),avg_time = document.getElementById('avg_time');
//ͼ��Ԫ��var canvas = document.getElementById('graph'),ctx = canvas.getContext('2d'),lap = document.getElementById('lap'),lap_numbers = document.getElementById('lap_numbers');
//��������var clock,lapClock,interval,lapOffset,lapTotal,laps = [],breakLoop = 0;
var reset = 0;
var iWatch = function (){
var startButton = addAction("start",start),stopButton = addAction("stop",stop),resetButton = addAction("reset",reset),lapButton = addAction("lap",lap);
reset();
function addAction(action,handler){
var a = document.getElementById(action);
a.addEventListener("click",function (event){
handler();
event.preventDefault();
}
);
return a;
}
function start(){
if (!interval){
offset = Date.now();
watch.classList.add('go');
watch.classList.remove('pause');
startButton.classList.add('hide');
stopButton.classList.remove('hide');
resetButton.classList.add('hide');
lapButton.classList.remove('hide');
interval = setInterval(update,1);
graph.state.pause = false;
if (!graph.state.inUse){
breakLoop = 0;
graph.animate(canvas,ctx,graph.msc.startTime);
graph.state.inUse = true;
}
}
}
function stop(){
if (interval){
watch.classList.add('pause');
startButton.classList.remove('hide');
stopButton.classList.add('hide');
resetButton.classList.remove('hide');
lapButton.classList.add('hide');
clearInterval(interval);
interval = null;
graph.state.pause = true;
}
}
function reset(){
clock = 0;
lapClock = 0;
lapOffset = 0;
lapTotal = 0;
watch.classList.remove('go');
watch.classList.remove('pause');
render();
graph.resetGraph(ctx,canvas);
}
function lap(){
//��ʱ var temp = clock - lapTotal;
lapTotal += temp;
lapOffset = clock;
var val = graph.recordLap(graph.coords);
var current ={
'time_ms':temp,'lap_number':val.lap_number,'x':graph.coords.prev.x,'y':graph.coords.prev.y}
laps.push(current);
}
function update(){
clock += delta();
lapClock = clock - lapOffset;
render();
}
function render(){
var t_ms = (clock / 1000).toFixed(2),t_sec = parseInt(clock / 1000),t_min = parseInt(clock / 1000 / 60);
if (t_sec > 59){
t_sec = t_sec - (60 * t_min);
}
timer_mil.innerHTML = (t_ms ? (t_ms > 9 ? t_ms:"0" + t_ms):"00").slice(-2);
// ms timer_sec.innerHTML = (t_sec ? (t_sec > 9 ? t_sec:"0" + t_sec):"00");
// sec timer_min.innerHTML = (t_min ? (t_min > 9 ? t_min:"0" + t_min):"00");
// min var l_ms = (lapClock / 1000).toFixed(2),l_sec = parseInt(lapClock / 1000),l_min = parseInt(lapClock / 1000 / 60);
if (l_sec > 59){
l_sec = l_sec - (60 * l_min);
}
lap_mil.innerHTML = (l_ms ? (l_ms > 9 ? l_ms:"0" + l_ms):"00").slice(-2);
// ms lap_sec.innerHTML = (l_sec ? (l_sec > 9 ? l_sec:"0" + l_sec):"00");
// sec lap_min.innerHTML = (l_min ? (l_min > 9 ? l_min:"0" + l_min):"00");
// min}
function delta(){
var now = Date.now(),t = now - offset;
offset = now;
return t;
}
// public API this.start = start;
this.stop = stop;
this.reset = reset;
this.lap = lap;
}
;
var clock = function (){
var d = new Date(),time_hours = document.getElementById('time_hours'),time_mins = document.getElementById('time_mins');
setInterval(function (){
setTime();
}
,1000);
function setTime(){
var hrs = d.getHours();
var mins = d.getMinutes();
time_hours.innerHTML = (hrs > 9 ? hrs:"0" + hrs);
time_mins.innerHTML = (mins > 9 ? mins:"0" + mins);
}
setTime();
}
graph.animate = function (canvas,c,startTime){
if (breakLoop == 1){
breakLoop = 0;
return;
}
if (!graph.state.pause){
var linearSpeed = 20;
var newY = linearSpeed * (startTime += 10) / 1000;
var offset = 0;
if (laps.length > 5){
offset = (laps.length - 5) * 35;
}
if (newY < 50){
graph.coords.y = 50 - newY;
}
if (reset == 1){
//startTime = (new Date()).getTime();
startTime = 0;
reset = 0;
}
// �����ԭ c.clearRect(0,0,canvas.width,canvas.height);
// Draw average if (graph.state.lapNum > 2){
var totalY = 0,totalTime = 0;
for (var key in laps){
if (laps.hasOwnProperty(key)){
var lap = laps[key];
totalY += lap.y;
totalTime += lap.time_ms;
}
}
var meanY = totalY / laps.length;
var avgTime = totalTime / laps.length;
// Write average time avgTime = Math.round(parseFloat(avgTime / 1000));
avg_time.innerHTML = Math.round(parseFloat(avgTime)) + 's';
// Draw mean line c.beginPath();
c.setLineDash([2]);
c.strokeStyle = '#ffac39';
c.moveTo(0,meanY - 0.5);
c.lineTo(canvas.width,meanY - 0.5);
c.stroke();
c.closePath();
}
// Draw Connect Line c.beginPath();
c.strokeStyle = '#fff';
c.setLineDash([0]);
if (graph.state.lapNum !== 1){
c.moveTo(graph.coords.prev.x - offset,graph.coords.prev.y);
c.lineTo(graph.coords.x - offset,graph.coords.y);
}
c.stroke();
c.closePath();
//Draw Previous Markers for (var key in laps){
if (laps.hasOwnProperty(key)){
var lap = laps[key];
c.beginPath();
c.strokeStyle = '#fff';
c.fillStyle = '#fff';
c.arc(lap.x - offset,lap.y,2.5,0,2 * Math.PI,false);
c.fill();
c.closePath();
//Draw lap lap number c.beginPath();
ctx.font = '14px helvetica';
ctx.fillText(lap.lap_number,lap.x - offset - 5,canvas.height - 10);
c.closePath();
//Draw Previous Line if (lap.lap_number > 1){
c.beginPath();
c.strokeStyle = '#fff';
c.moveTo(laps[key - 1].x - offset,laps[key - 1].y);
c.lineTo(lap.x - offset,lap.y);
c.stroke();
c.closePath();
}
}
}
//Draw Marker c.beginPath();
if (graph.state.lapNum == 1){
c.fillStyle = '#fff';
c.strokeStyle = '#fff';
}
else{
if (graph.coords.y > graph.msc.fastestLap){
c.fillStyle = graph.markerStyle.green;
c.strokeStyle = graph.markerStyle.green;
}
else if (graph.coords.y < graph.msc.slowestLap){
c.fillStyle = graph.markerStyle.red;
c.strokeStyle = graph.markerStyle.red;
}
else{
c.fillStyle = '#fff';
c.strokeStyle = '#fff';
}
}
c.arc(graph.coords.x - offset,graph.coords.y,2.5,0,2 * Math.PI,false);
c.fill();
c.closePath();
}
requestAnimFrame(function (){
graph.animate(canvas,c,startTime);
}
);
}
graph.recordLap = function (c){
graph.coords.prev.x = c.x;
graph.coords.prev.y = c.y;
reset = 1;
graph.coords.x += 35;
if (graph.state.lapNum == 1){
graph.msc.fastestLap = c.y;
}
else{
if (c.y > graph.msc.fastestLap){
graph.msc.fastestLap = c.y;
}
else if (c.y < graph.msc.slowestLap){
graph.msc.slowestLap = c.y;
}
}
graph.state.lapNum++;
return{
'x':c.x,'y':c.y,'lap_number':graph.state.lapNum - 1}
;
}
graph.resetGraph = function (ctx,canvas){
ctx.clearRect(0,0,canvas.width,canvas.height);
lap_numbers.innerHTML = '';
avg_time.innerHTML = '';
graph.state.inUse = false;
//graph.state.pause = false;
graph.state.lapNum = 1;
graph.coords.x = 5;
graph.coords.y = 50;
graph.coords.prev.x = 0;
graph.coords.prev.y = 50;
graph.msc.fastestLap = 0;
graph.msc.slowestLap = 99999999;
graph.msc.startTime = 0;
graph.state.lapNum = 1;
reset = 1;
laps = [];
breakLoop = 1;
}
// Initiateclock();
var iWatch = new iWatch();
CSS代码(zzsc.css):
body{font-family:helvetica;-webkit-font-smoothing:antialiased;-moz-osx-font-smoothing:grayscale;}
h3{font-weight:100;font-size:30px;text-align:center;padding-top:10px;color:#000;}
.hide{display:none !important;}
.container{position:fixed;top:50%;left:50%;margin-left:-161px;margin-top:-250px;}
.frame{width:342px;height:405px;margin:0 auto;border-radius:53px;box-shadow:inset 0 0 15px 1px #7f8082,inset 0 0 4px 0px #7f8082;position:relative;box-sizing:border-box;border:1px solid #949494;overflow:hidden;}
#watch{width:310px;height:375px;position:absolute;top:15px;left:15px;background-color:#000;border-radius:40px;overflow:hidden;/* box-shadow:0 0 0 1px #5d5d5d,0 0 0 1px #727272,inset 0 0 18px 4px #fff;*/
box-shadow:0 0 0 1px #5d5d5d,0 0 6px 1px #5d5d5d,0 0 0 1px #727272,inset 0 0 20px 3px #fff,inset 35px -10px 50px 0px rgba(255,255,255,0.3),279px 326px 45px -18px rgba(153,153,153,0.6),270px -321px 45px -18px rgba(153,153,153,0.5),-266px 326px 45px -18px rgba(153,153,153,0.4),-264px -330px 45px -18px rgba(153,153,153,0.5);box-sizing:border-box;}
.blur-top{position:absolute;top:-30px;left:5%;width:90%;height:50px;border-radius:20px;background:linear-gradient( rgba(255,255,255,0.9),rgba(255,255,255,0.25));}
.face{width:236px;height:280px;position:absolute;top:35px;left:37px;}
.row-1 > div{width:50%;float:left;color:#fff;margin-bottom:8px;font-weight:100;font-size:26px;}
.row-1 .timer{text-align:left;}
.row-1 .timer > span{float:left;}
.row-1 .time{text-align:right;float:right;}
.row-1 .time > span{float:right;}
.row-2 .clock{width:73px;height:73px;float:left;border-radius:75px;position:relative;}
.c2{margin-left:8px;margin-right:8px;}
.c1 .bl:nth-child(38){display:none;}
i{width:73px;height:1px;background-color:#fff;position:absolute;top:36px;transform-origin:50% 50%;}
.c i:nth-child(1){transform:rotate(5deg);}
.c i:nth-child(2){transform:rotate(10deg);}
.c i:nth-child(3){transform:rotate(15deg);}
.c i:nth-child(4){transform:rotate(20deg);}
.c i:nth-child(5){transform:rotate(25deg);}
.c i:nth-child(6){transform:rotate(170deg);}
.c i:nth-child(7){transform:rotate(35deg);}
.c i:nth-child(8){transform:rotate(40deg);}
.c i:nth-child(9){transform:rotate(45deg);}
.c i:nth-child(10){transform:rotate(50deg);}
.c i:nth-child(11){transform:rotate(55deg);}
.c i:nth-child(12){transform:rotate(165deg);}
.c i:nth-child(13){transform:rotate(65deg);}
.c i:nth-child(14){transform:rotate(70deg);}
.c i:nth-child(15){transform:rotate(75deg);}
.c i:nth-child(16){transform:rotate(80deg);}
.c i:nth-child(17){transform:rotate(85deg);}
.c i:nth-child(18){transform:rotate(180deg);}
.c i:nth-child(19){transform:rotate(95deg);}
.c i:nth-child(20){transform:rotate(100deg);}
.c i:nth-child(21){transform:rotate(105deg);}
.c i:nth-child(22){transform:rotate(110deg);}
.c i:nth-child(23){transform:rotate(115deg);}
.c i:nth-child(24){transform:rotate(160deg);}
.c i:nth-child(25){transform:rotate(125deg);}
.c i:nth-child(26){transform:rotate(130deg);}
.c i:nth-child(27){transform:rotate(135deg);}
.c i:nth-child(28){transform:rotate(140deg);}
.c i:nth-child(29){transform:rotate(145deg);}
.c i:nth-child(30){transform:rotate(175deg);}
.c i:nth-child(31){transform:rotate(155deg);}
.c i:nth-child(32){transform:rotate(120deg);}
.c i:nth-child(33){transform:rotate(60deg);}
.c i:nth-child(35){transform:rotate(30deg);}
.c i:nth-child(36){transform:rotate(150deg);}
.c i:nth-child(37){transform:rotate(90deg);}
.c i:nth-child(38){transform:rotate(120deg);}
/** Second Clock **/
.d i:nth-child(1){transform:rotate(3.6deg);}
.d i:nth-child(2){transform:rotate(10.8deg);}
.d i:nth-child(3){transform:rotate(147.6deg);}
.d i:nth-child(4){transform:rotate(25.2deg);}
.d i:nth-child(5){transform:rotate(32.4deg);}
.d i:nth-child(6){transform:rotate(39.6deg);}
.d i:nth-child(7){transform:rotate(46.8deg);}
.d i:nth-child(8){transform:rotate(154.8deg);}
.d i:nth-child(9){transform:rotate(61.2deg);}
.d i:nth-child(10){transform:rotate(68.4deg);}
.d i:nth-child(11){transform:rotate(75.6deg);}
.d i:nth-child(12){transform:rotate(82.8deg);}
.d i:nth-child(13){transform:rotate(176.4deg);}
.d i:nth-child(14){transform:rotate(97.2deg);}
.d i:nth-child(15){transform:rotate(104.4deg);}
.d i:nth-child(16){transform:rotate(111.6deg);}
.d i:nth-child(17){transform:rotate(118.8deg);}
.d i:nth-child(18){transform:rotate(169.2deg);}
.d i:nth-child(19){transform:rotate(133.2deg);}
.d i:nth-child(20){transform:rotate(140.4deg);}
.d i:nth-child(22){transform:rotate(18deg);/* 147.6*/
}
.d i:nth-child(23){transform:rotate(54deg);/* 154.8*/
}
.d i:nth-child(24){transform:rotate(90deg);/*162*/
}
.d i:nth-child(25){transform:rotate(126deg);/*169.2*/
}
.d i:nth-child(26){transform:rotate(162deg);/*176.4*/
}
.inner-cover,.outer-cover{position:absolute;background:#000;border-radius:100%;}
.inner-cover{width:65px;height:65px;top:4px;left:4px;}
.outer-cover{width:59px;height:59px;top:7px;left:7px;}
.ns b{position:absolute;color:#fff;font-family:helvetica;font-weight:100;font-size:12px;/*-webkit-font-smoothing:antialiased;*/
}
/* Clock 1 Numbers */
.ns1 b:nth-child(1){top:20px;left:47px;}
.ns1 b:nth-child(2){top:40px;left:47px;}
.ns1 b:nth-child(3){top:52px;left:30px;}
.ns1 b:nth-child(4){top:40px;left:13px;}
.ns1 b:nth-child(5){top:20px;left:13px;}
.ns1 b:nth-child(6){top:8px;left:30px;}
/* Clock 2 Numbers */
.ns2 b:nth-child(1){top:30px;left:50px;}
.ns2 b:nth-child(2){top:52px;left:30px;}
.ns2 b:nth-child(3){top:30px;left:10px;}
.ns2 b:nth-child(4){top:8px;left:30px;}
/* Clock 3 Numbers */
.ns3 b:nth-child(1){top:10px;left:47px;}
.ns3 b:nth-child(2){top:21px;left:56px;}
.ns3 b:nth-child(3){top:37px;left:56px;}
.ns3 b:nth-child(4){top:48px;left:47px;}
.ns3 b:nth-child(5){top:52px;left:33.5px;}
.ns3 b:nth-child(6){top:48px;left:19px;}
.ns3 b:nth-child(7){top:38px;left:11px;}
.ns3 b:nth-child(8){top:22px;left:11px;}
.ns3 b:nth-child(9){top:10px;left:20px;}
.ns3 b:nth-child(10){top:8px;left:33.5px;}
.pin{position:absolute;width:6px;height:6px;background-color:#ff990c;border-radius:4px;top:50%;left:50%;margin-top:-3px;margin-left:-3px;}
.hand{position:absolute;width:37.5px;height:2px;background-color:#ff990c;top:50%;left:50%;margin-top:-1px;margin-left:-1px;/*animation:rotate 60s infinite linear;*/
transform-origin:1px 50%;transform:rotate(-90deg);}
.go .c1 .hand{animation:rotate 21600s infinite linear;}
.go .c2 .hand{animation:rotate 60s infinite linear;}
.go .c3 .hand{animation:rotate 1s infinite linear;}
.go.pause .c1 .hand{animation-play-state:paused;}
.go.pause .c2 .hand{animation-play-state:paused;}
.go.pause .c3 .hand{animation-play-state:paused;}
.reset .c1 .hand{transform:rotate(-90deg);}
.reset .c2 .hand{transform:rotate(-90deg);}
.reset .c3 .hand{transform:rotate(-90deg);}
@keyframes rotate{0%{transform:rotate(-90deg);}
100%{transform:rotate(270deg);}
}
.lap_timer{width:100%;color:#fff;margin:0;padding:0;margin-bottom:8px;font-family:helvetica;font-weight:100;font-size:60px;line-height:60px;text-align:center;/*-webkit-font-smoothing:antialiased;*/
clear:both;}
.lap_timer span{float:left;width:8%;text-align:center;}
#lap_min,#lap_sec,#lap_ms{width:28%;}
.ctrls{clear:both;}
.ctrls a{display:block;float:left;text-align:center;width:49%;font-family:helvetica;font-weight:200;font-size:22px;letter-spacing:1px;text-align:center;text-decoration:none;padding:12px 0 14px;border-radius:10px;/*-webkit-font-smoothing:antialiased;*/
background-color:#0f351e;color:#78d698;}
.ctrls #stop{background-color:#3e1918;color:#ff3939;}
.ctrls #reset{margin-left:2%;background-color:#3e3d3e;color:#fff;}
.ctrls #lap{margin-left:2%;background-color:#3e3d3e;color:#fff;}
.canvasContainer{width:180px;height:50px;margin:0 auto;/*overflow:hidden;*/
position:relative;clear:both;float:left;}
canvas{margin:0;margin-left:7px;padding:0;border:none;position:absolute;top:0;left:0;bottom:0;right:0;}
#avg_time{width:55px;float:left;text-align:right;color:#ff990c;font-size:20px;padding-top:22px;}
.lap_numbers_container{height:20px;width:185px;position:relative;overflow:hidden;clear:both;margin-bottom:5px;}
#lap_numbers{position:absolute;top:0;left:0;}
#lap_numbers span{color:#fff;width:20px;font-size:14px;display:block;float:left;text-align:center;margin-left:15px;}
#lap_numbers span:first-child{margin-left:0px;}
分享到QQ
分享到微博
微信扫一扫
