jquery Android屏幕解锁js特效代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 jquery Android屏幕解锁js特效代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

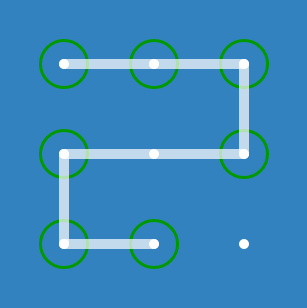

部分效果截图:

HTML代码(index.html):

<!doctype html>
<html>
<head>
<meta charset="utf-8">
<title>jquery Android屏幕解锁</title>
<link href="patternLock.css"  rel="stylesheet" type="text/css" />
<script src="jquery-1.9.1.min.js"></script>
<script src="patternLock.js"></script>
<script type="text/javascript">
$(document).ready(function(){
	var lock = new PatternLock("#patternContainer");
});
</script>
</head>

<body>
<center>
<div id="patternContainer"></div>
</center>
</body>
</html>

JS代码(patternLock.js):

/*patternLock.js v 0.1.2Author:Sudhanshu YadavCopyright (c) 2013 Sudhanshu Yadav - ignitersworld.com,released under the MIT license.Demo on:ignitersworld.com/lab/patternLock.html*/
;
	(function (){
	var isTouchSupported = !! ('ontouchstart' in window),touchStart = isTouchSupported ? "touchstart":"mousedown",touchEnd = isTouchSupported ? "touchend":"mouseup",touchMove = isTouchSupported ? "touchmove":"mousemove",nullFunc = function (){
}
,objectHolder ={
}
;
	//internal functions function readyDom(iObj){
	var holder = iObj.holder,option = iObj.option,matrix = option.matrix,margin = option.margin,radius = option.radius;
	html = ['<ul class="patt-wrap" style="padding:' + margin + 'px">'];
	for (var i = 0,ln = matrix[0] * matrix[1];
	i < ln;
	i++){
	html.push('<li class="patt-circ" style="margin:' + margin + 'px;
	width:' + (radius * 2) + 'px;
	height:' + (radius * 2) + 'px;
	-webkit-border-radius:' + radius + 'px;
	-moz-border-radius:' + radius + 'px;
	border-radius:' + radius + 'px;
	"><div class="patt-dots"></div></li>');
}
html.push('</ul>');
	holder.html(html.join('')).css({
	'width':(matrix[1] * (radius * 2 + margin * 2) + margin * 2) + 'px','height':(matrix[0] * (radius * 2 + margin * 2) + margin * 2) + 'px'}
);
	//select pattern circle iObj.pattCircle = iObj.holder.find('.patt-circ');
}
//return height and angle for lines function getLengthAngle(x1,x2,y1,y2){
	var xDiff = x2 - x1,yDiff = y2 - y1 return{
	length:Math.ceil(Math.sqrt(xDiff * xDiff + yDiff * yDiff)),angle:Math.round((Math.atan2(yDiff,xDiff) * 180) / Math.PI)}
}
var startHandler = function (e,obj){
	e.preventDefault();
	var iObj = objectHolder[obj.token];
	//check if pattern is visible or not if (!iObj.option.patternVisible){
	iObj.holder.addClass('patt-hidden');
}
//assign events $(this).on(touchMove + '.pattern-move',function (e){
	moveHandler.call(this,e,obj);
}
);
	$(document).one(touchEnd,function (){
	endHandler.call(this,e,obj);
}
);
	//set pattern offset var wrap = iObj.holder.find('.patt-wrap'),offset = wrap.offset();
	iObj.wrapTop = offset.top,iObj.wrapLeft = offset.left;
	//reset pattern obj.reset();
}
,moveHandler = function (e,obj){
	e.preventDefault();
	var x = e.pageX || e.originalEvent.touches[0].pageX,y = e.pageY || e.originalEvent.touches[0].pageY,iObj = objectHolder[obj.token],li = iObj.pattCircle,patternAry = iObj.patternAry,lineOnMove = iObj.option.lineOnMove,posObj = iObj.getIdxFromPoint(x,y),idx = posObj.idx,pattId = iObj.mapperFunc(idx) || idx;
	if (patternAry.length > 0){
	var laMove = getLengthAngle(iObj.lineX1,posObj.x,iObj.lineY1,posObj.y);
	iObj.line.css({
	'width':(laMove.length + 10) + 'px','transform':'rotate(' + laMove.angle + 'deg)'}
);
}
if (idx){
	if (patternAry.indexOf(pattId) == -1){
	var elm = $(li[idx - 1]);
	elm.addClass('hovered');
	//push pattern on array patternAry.push(pattId);
	//add start point for line var margin = iObj.option.margin,radius = iObj.option.radius,newX = (posObj.i - 1) * (2 * margin + 2 * radius) + 2 * margin + radius;
	newY = (posObj.j - 1) * (2 * margin + 2 * radius) + 2 * margin + radius;
	if (patternAry.length != 1){
	//to fix line var lA = getLengthAngle(iObj.lineX1,newX,iObj.lineY1,newY);
	iObj.line.css({
	'width':(lA.length + 10) + 'px','transform':'rotate(' + lA.angle + 'deg)'}
);
	if (!lineOnMove) iObj.line.show();
}
//to create new line var line = $('<div class="patt-lines" style="top:' + (newY - 5) + 'px;
	left:' + (newX - 5) + 'px"></div>');
	iObj.line = line;
	iObj.lineX1 = newX;
	iObj.lineY1 = newY;
	//add on dom iObj.holder.append(line);
	if (!lineOnMove) iObj.line.hide();
}
}
}
,endHandler = function (e,obj){
	e.preventDefault();
	var iObj = objectHolder[obj.token],li = iObj.pattCircle,pattern = iObj.patternAry.join('');
	//remove hidden pattern class and remove event iObj.holder.off('.pattern-move').removeClass('patt-hidden');
	if(!pattern) return;
	iObj.option.onDraw(pattern);
	//to remove last line iObj.line.remove();
	if (iObj.rightPattern){
	if (pattern == iObj.rightPattern){
	iObj.onSuccess();
}
else{
	iObj.onError();
	obj.error();
}
}
}
;
	function InternalMethods(){
}
;
	InternalMethods.prototype ={
	constructor:InternalMethods,getIdxFromPoint:function (x,y){
	var option = this.option,matrix = option.matrix,xi = x - this.wrapLeft,yi = y - this.wrapTop,idx = null,margin = option.margin,plotLn = option.radius * 2 + margin * 2;
	qsntX = Math.ceil(xi / plotLn),qsntY = Math.ceil(yi / plotLn),remX = xi % plotLn,remY = yi % plotLn;
	if (qsntX <= matrix[1] && qsntY <= matrix[0] && remX > margin * 2 && remY > margin * 2){
	idx = (qsntY - 1) * matrix[1] + qsntX;
}
return{
	idx:idx,i:qsntX,j:qsntY,x:xi,y:yi}
;
}
}
function PatternLock(selector,option){
	var self = this,token = self.token = Math.random(),iObj = objectHolder[token] = new InternalMethods(),holder = iObj.holder = $(selector);
	//if holder is not present return if (holder.length == 0) return;
	iObj.object = self;
	option = iObj.option = $.extend({
}
,PatternLock.defaults,option);
	readyDom(iObj);
	//add class on holderholder.addClass('patt-holder');
	//change offset property of holder if it does not have any property if (holder.css('position') == "static") holder.css('position','relative');
	//assign event holder.on(touchStart,function (e){
	startHandler.call(this,e,self);
}
);
	//handeling callback iObj.option.onDraw = option.onDraw || nullFunc;
	//adding a mapper function var mapper = option.mapper;
	if (typeof mapper == "object"){
	iObj.mapperFunc = function (idx){
	return mapper[idx];
}
}
else if (typeof mapper == "function"){
	iObj.mapperFunc = mapper;
}
else{
	iObj.mapperFunc = nullFunc;
}
//to delete from option object iObj.option.mapper = null;
}
PatternLock.prototype ={
	constructor:PatternLock,option:function (key,val){
	var iObj = objectHolder[this.token],option = iObj.option;
	//for set methods if (!val){
	return option[key];
}
//for setter else{
	option[key] = val;
	if (key == "margin" || key == "matrix" || key == "radius"){
	readyDom(iObj);
}
}
}
,getPattern:function (){
	return objectHolder[this.token].patternAry.join('');
}
,reset:function (){
	var iObj = objectHolder[this.token];
	//to remove lines iObj.pattCircle.removeClass('hovered');
	iObj.holder.find('.patt-lines').remove();
	//add/reset a array which capture pattern iObj.patternAry = [];
	//remove error class if added iObj.holder.removeClass('patt-error');
}
,error:function (){
	objectHolder[this.token].holder.addClass('patt-error');
}
,checkForPattern:function (pattern,success,error){
	var iObj = objectHolder[this.token];
	iObj.rightPattern = pattern;
	iObj.onSuccess = success || nullFunc;
	iObj.onError = error || nullFunc;
}
}
PatternLock.defaults ={
	matrix:[3,3],margin:20,radius:25,patternVisible:true,lineOnMove:true}
;
	window.PatternLock = PatternLock;
}
());

CSS代码(patternLock.css):

/*patternLock.js v 0.1.1Author:Sudhanshu YadavCopyright (c) 2013 Sudhanshu Yadav - ignitersworld.com,released under the MIT license.Demo on:ignitersworld.com/lab/patternLock.html*/
.patt-holder{background:#3382c0;}
.patt-wrap{position:relative;cursor:pointer;}
.patt-wrap ul,.patt-wrap li{list-style:none;margin:0;padding:0;}
.patt-circ{position:relative;float:left;box-sizing:border-box;-moz-box-sizing:border-box;}
.patt-circ.hovered{border:3px solid #009900;}
.patt-error .patt-circ.hovered{border:3px solid #BA1B26;}
.patt-hidden .patt-circ.hovered{border:0;}
.patt-dots{background:#FFF;width:10px;height:10px;border-radius:5px;position:absolute;top:50%;left:50%;margin-top:-5px;margin-left:-5px;}
.patt-lines{border-radius:5px;height:10px;background:rgba(255,255,255,.7);position:absolute;transform-origin:5px 5px;-ms-transform-origin:5px 5px;/* IE 9 */
-webkit-transform-origin:5px 5px;}
.patt-hidden .patt-lines{display:none;}
