html5 canvas自动绘制背景特效代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 html5 canvas自动绘制背景特效代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

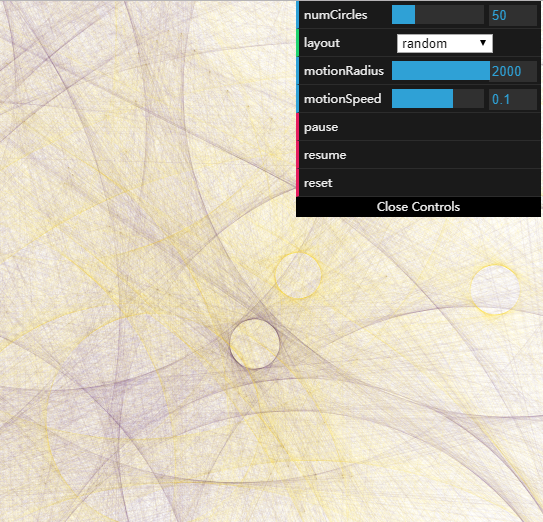

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html>

<head>
    <meta charset="UTF-8">
    <title>html5 canvas自动绘制背景</title>
    <link rel="stylesheet" href="css/style.css" media="screen" type="text/css" />
    <script src="js/modernizr.js"></script>
</head>

<body>

    <div class="about title">
        <h1>Tangents</h1>
        <button class="btn randomize">重新绘制</button>
    </div>
    <script src='js/dat.gui.min.js'></script>
    <script src='js/toxiclibs.min.js'></script>
    <script src='js/animitter.min.js'></script>
    <script src="js/index.js"></script>
</body>
</html>

JS代码(index.js):

var bezier,layouts,cloudMotion,sketch,aboutPanel,gui,app,settings,take,main;
	// "bezier" by Mathias Paumgartenbezier = (function(){
	var proto ={
	t:0,addAnchor:function( point ){
	if ( ! this.anchors ) this.anchors = [];
	this.anchors.push({
	x:point.x,y:point.y}
);
	this.update();
}
,setPosition:function( value ){
	this.t = value;
	this.update();
}
,update:function(){
	var t = this.t || 0;
	var anchors = this.anchors || [];
	var length = anchors.length;
	var points = [];
	var i,j;
	for ( i = 0;
	i < length;
	i++ ){
	points[ i ] ={
	x:anchors[ i ].x,y:anchors[ i ].y}
;
}
for ( j = 1;
	j < length;
	++j ){
	for (i = 0;
	i < length - j;
	++i ){
	points[ i ].x = ( 1 - t ) * points[ i ].x + t * points[ ~~( i + 1 ) ].x;
	points[ i ].y = ( 1 - t ) * points[ i ].y + t * points[ ~~( i + 1 ) ].y;
}
}
this.x = points[ 0 ].x;
	this.y = points[ 0 ].y;
}
,get:function(){
	return{
	x:this.x,y:this.y}
;
}
}
;
	var Bezier = function(){
}
;
	Bezier.prototype = Object.create(proto);
	function bezier(){
	return new Bezier();
}
return bezier;
}
)();
	//"cloud motion" by Mathias PaumgartencloudMotion = (function(bezier){
	function CloudMotion( radius,speed ){
	speed = speed || 0.01;
	var points = [];
	var curve;
	var current = 0;
	function init(){
	points.push( getRandomPoint() );
	points.push( getRandomPoint() );
	points.push( getRandomPoint() );
	initCurve();
}
function initCurve(){
	curve = bezier();
	curve.addAnchor( points[ 0 ].interpolateTo( points[ 1 ],0.5 ) );
	curve.addAnchor( points[ 1 ] );
	curve.addAnchor( points[ 1 ].interpolateTo( points[ 2 ],0.5 ) );
}
function getRandomPoint(){
	var pt = new toxi.geom.Vec2D();
	pt.x = toxi.math.MathUtils.random( radius / 3,radius );
	pt.y = Math.random() * Math.PI * 2;
	return pt.toCartesian();
}
this.update = function(){
	current += speed;
	if ( current >= 1 ){
	points.shift();
	points.push( getRandomPoint() );
	initCurve();
	current -= 1;
}
curve.setPosition( current );
}
;
	this.getPosition = function(){
	return curve.get();
}
;
	init();
}
return function( radius,speed ){
	return new CloudMotion( radius,speed );
}
;
}
)(bezier);
	//The main rendering of the sketchsketch = (function( cloudMotion ){
	var exports ={
}
,canvas = document.createElement('canvas'),ctx = canvas.getContext('2d'),center = new toxi.geom.Vec2D(),focus = new toxi.geom.Vec2D(),circles = [],color = toxi.color.TColor.newHex('3b2141').setAlpha(0.015),motion,drawTangents;
	exports.clear = function(){
	canvas.width = window.innerWidth * 2;
	canvas.height = window.innerHeight * 2;
	canvas.style.width = window.innerWidth + 'px';
	canvas.style.height = window.innerHeight + 'px';
	center.set(canvas.width,canvas.height).scaleSelf(0.5);
	focus.set(center);
	ctx.clearRect(0,0,canvas.width,canvas.height);
}
;
	exports.clear();
	motion = cloudMotion(1000,0.1);
	drawTangents = function(ctx,pt,circle,color){
	var isecs = circle.getTangentPoints(pt);
	if( isecs ){
	ctx.strokeStyle = color.toRGBACSS();
	isecs.forEach(function(isec){
	ctx.beginPath();
	var ray = new toxi.geom.Ray2D(pt,isec.sub(pt)),line = ray.toLine2DWithPointAtDistance(canvas.width);
	ctx.moveTo(line.a.x,line.a.y);
	ctx.lineTo(line.b.x,line.b.y);
	ctx.closePath();
	ctx.stroke();
}
);
}
}
;
	var color1 = color.copy(),color2 = toxi.color.TColor.newHex('ffdb4d') .adjustHSV(0,-0.01,0.25) .setAlpha(0.015);
	color2 = toxi.color.NamedColor.GOLD .copy() .setAlpha(0.015);
	var colors = [color1,color2];
	//call this function every frame to render the sketch function render(frameCount){
	focus.set(motion.getPosition()).addSelf(center);
	//add a subtle white fill ctx.fillStyle = 'rgba(255,255,255,0.001)';
	ctx.fillRect(0,0,canvas.width,canvas.height);
	circles.forEach(function( circle,i ){
	drawTangents( ctx,focus,circle,colors[i%colors.length] );
}
);
}
exports.el = canvas;
	exports.center = center;
	exports.colors = colors;
	//provide the sketch with the layout of toxi.geom.Circle's exports.setCircles = function( _circles ){
	circles = _circles;
}
;
	exports.setMotion = function( radius,speed ){
	exports.loop.off('update',motion.update);
	motion = cloudMotion( radius,speed );
	exports.loop.on('update',motion.update);
}
;
	exports.loop = animitter() .on('update',motion.update) .on('update',render);
	return exports;
}
)( cloudMotion );
	//call `fn` `num` times,collecting resultstake = function( num,fn ){
	var results = [];
	for( var i=0;
	i<num;
	i++ ){
	results.push( fn(i,num) );
}
return results;
}
;
	//methods to determine where the circles are plottedlayouts = (function(toxi,sketch,take){
	var exports ={
}
,el = sketch.el;
	exports.random = function( num ){
	return take( num,function(i,total){
	return new toxi.geom.Circle( Math.random()*el.width,Math.random()*el.height,toxi.math.MathUtils.random(el.width*0.005,el.width) );
}
);
}
;
	exports.concentric = function( num,position,options ){
	options = options ||{
}
;
	var minRadius = options.minRadius || 10,maxRadius = options.maxRadius || el.width/3,interp = options.interpolator || new toxi.math.LinearInterpolation();
	return take( num,function(i,total){
	return new toxi.geom.Circle( position,interp.interpolate(minRadius,maxRadius,i/total) );
}
);
}
;
	exports.combination = function( num,position ){
	var numRandom = ~~toxi.math.MathUtils.random(num/4,num),numConcentric = num - numRandom;
	return exports.random(numRandom).concat(exports.concentric(numConcentric,position));
}
;
	return exports;
}
)(window.toxi,sketch,take);
	//the panel with my name on itaboutPanel = (function(){
	var exports ={
}
,create,svg,setPath,aboutEl = document.body.querySelector('.about.title'),randomizeEl = document.body.querySelector('.btn.randomize'),interp = new toxi.math.SigmoidInterpolation(),paths = [];
	create = function(type){
	return document.createElementNS('http://www.w3.org/2000/svg',type);
}
;
	setPath = function(points,path ){
	path = path || create('path');
	//build the path "d" attribute var d = points.reduce(function(str,pt){
	str += pt.x + ' ' + pt.y + ' ';
	return str;
}
,'M ');
	//close the path d += 'Z';
	path.setAttribute('d',d);
	return path;
}
;
	exports.el = svg = create('svg');
	svg.classList.add('about');
	var poly ={
}
;
	poly.from = new toxi.geom.Rect({
	x:0,y:0,width:200,height:0}
).toPolygon2D();
	poly.to = new toxi.geom.Rect({
	x:0,y:0,width:200,height:150}
).toPolygon2D();
	poly.current = poly.from.copy();
	var faces = [ [ 0,1,3 ],[ 1,2,3 ] ];
	var colors = [{
	from:toxi.color.TColor.newHex('cccccc'),to:toxi.color.TColor.newHex('ffffff')}
,{
	from:toxi.color.TColor.newHex('999999'),to:toxi.color.TColor.newHex('ffffff')}
];
	colors.forEach(function(color){
	color.current = color.from.copy();
}
);
	var tweenColor = function( colorIndex,delayFrames,durationFrames ){
	return function(frameCount){
	var f = frameCount - delayFrames;
	f = toxi.math.MathUtils.clip(f / durationFrames,0,1);
	var color = colors[colorIndex];
	color.current.setRGB( color.from.copy().blend(color.to,f).rgb );
}
;
}
;
	var tweenVertex = function( vertIndex,delayFrames,durationFrames ){
	return function(frameCount){
	var f = frameCount - delayFrames;
	f = toxi.math.MathUtils.clip(f / durationFrames,0,1);
	var c = poly.current.vertices[vertIndex],from = poly.from.vertices[vertIndex],to = poly.to.vertices[vertIndex];
	c.set( from.interpolateTo(to,f,interp) );
}
;
}
;
	var extract = function( arr,idxArr ){
	return idxArr.map(function(i){
	return arr[i];
}
);
}
;
	var tris;
	var makePaths = function(){
	tris = faces.map(function(face){
	return extract(poly.current.vertices,face);
}
);
	paths = tris.map(function(tri){
	var path = setPath(tri);
	path.style.strokeWidth = '1px';
	return path;
}
);
	paths.forEach(function(path){
	svg.appendChild(path);
}
);
}
;
	var render = function(){
	tris.forEach(function(tri,i){
	var path = paths[i];
	var color = colors[i].current;
	path.style.fill = color.toRGBCSS();
	path.style.stroke = color.toRGBCSS();
	setPath(tri,path);
}
);
}
;
	exports.loop = animitter() .once('start',makePaths) .on('update',tweenColor(0,0,30)) .on('update',tweenColor(1,30,30)) .on('update',tweenVertex(1,0,15)) .on('update',tweenVertex(3,0,30)) .on('update',tweenVertex(2,15,30)) .on('update',render) .on('update',function(frameCount){
	if( frameCount === 60 ){
	this.emit('fade-text');
}
}
) .on('fade-text',function(){
	aboutEl.classList.add('active');
	this.complete();
}
);
	return exports;
}
)();
	//some of the basic configurationsettings ={
	numCircles:50,layout:'random',colors:sketch.colors,motionRadius:2000,motionSpeed:0.1}
;
	//control all of the piecesapp ={
	updateMotion:function(){
	sketch.setMotion(settings.motionRadius,settings.motionSpeed);
}
,randomize:function(){
	var coin = toxi.math.MathUtils.flipCoin;
	var generator ={
	layout:function(){
	var types = Object.keys(layouts);
	return types[~~toxi.math.MathUtils.random(0,types.length)];
}
,numCircles:function(){
	var r = toxi.math.MathUtils.random;
	if( settings.layout === 'concentric' ){
	return ~~r(20,60);
}
return ~~(coin() ? r(100,50):coin() ? r(120,200):r(25,50));
}
,motionRadius:function(){
	return coin() ? 1000:2000;
}
,motionSpeed:function(){
	return coin() ? 0.1:coin() ? 0.01:0.003;
}
}
;
	for( var prop in generator ){
	settings[prop] = generator[prop]();
}
app.reset();
}
,reset:function(){
	sketch.clear();
	sketch.setCircles( layouts[settings.layout](settings.numCircles,sketch.center) );
	sketch.setMotion( settings.motionRadius,settings.motionSpeed );
	sketch.loop.start();
}
,resume:function(){
	sketch.loop.start();
}
,pause:function(){
	sketch.loop.stop();
}
}
;
	//create the gui in the top-rightgui = (function(settings,app,layouts){
	var gui = new dat.GUI();
	gui.close();
	gui.add(settings,'numCircles',1,200) .step(1) .listen();
	gui.add(settings,'layout',Object.keys(layouts)) .listen();
	gui.add(settings,'motionRadius',10,sketch.el.width) .listen() .onFinishChange(app.updateMotion);
	gui.add(settings,'motionSpeed',0.001,0.15) .step(0.001) .listen() .onFinishChange(app.updateMotion);
	gui.add(app,'pause');
	gui.add(app,'resume');
	gui.add(app,'reset');
	return gui;
}
)(settings,app,layouts);
	//kick off the sketchmain = function(){
	document.body.appendChild(sketch.el);
	document.body.appendChild(aboutPanel.el);
	document.body.querySelector('.btn.randomize').addEventListener('click',app.randomize);
	window.addEventListener('resize',app.reset);
	//transition in info panel setTimeout(function(){
	aboutPanel.loop.start();
}
,6000);
	app.reset();
}
;
	window.onload = main;

CSS代码(style.css):

html,body{width:100%;height:100%;border:0px;padding:0px;margin:0px;background-color:white;font-family:Roboto,Helvetica;}
a{text-decoration:none;}
h1,h2{font-size:16px;font-weight:700;line-height:0.8em;color:#800080;}
h2{font-weight:100;}
.btn{background:none;font-weight:100;text-decoration:none;outline:0;border:0;font-size:16px;border-top:2px solid #800080;color:#800080;text-align:left;padding-left:0;margin-top:20px;transition:all 0.1s 0.6s ease-out;cursor:pointer;height:0;}
.about.active .btn{height:25px;visibility:visible;}
.btn:hover{border-bottom:2px solid #800080;}
.about{position:fixed;top:40px;left:40px;width:280px;height:200px;color:#6a3f6a;text-align:center;}
.title{padding-left:40px;margin-top:20px;z-index:1;text-align:left;visibility:hidden;}
.title h1{transition:all 0.2s 0.1s;}
.title h2{transition:all 0.2s 0.2s;}
.title h1,.title h2{opacity:0;transform:translate(-15px,0);}
.title.active h1,.title.active h2{transform:translate(0,0);visibility:visible;opacity:1;}
.about-inner{position:fixed;z-index:1;margin-left:auto;margin-right:auto;text-align:left;display:inline-block;}
