html5 canvas梯形走势图表特效

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 html5 canvas梯形走势图表特效的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

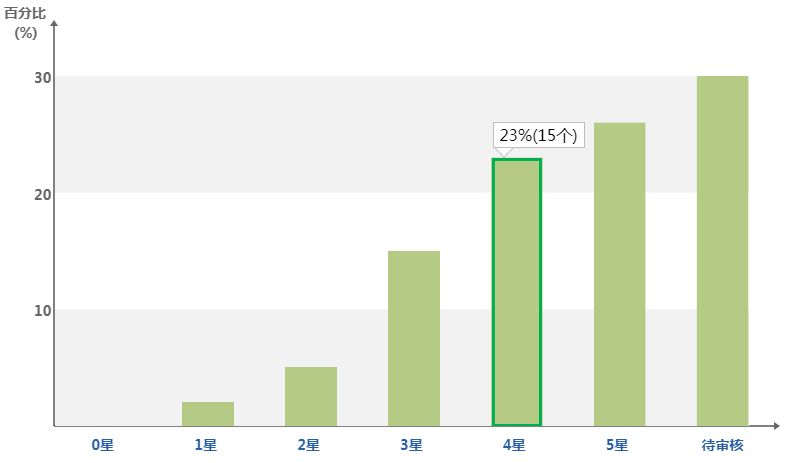

部分效果截图:

HTML代码(detail.html):

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>无标题文档</title>
</head>
<body>
详情页面
</body>
</html>

HTML代码(index.html):

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>html5 canvas梯形走势图表特效</title>
<style type="text/css">
#canvas{
	position: relative;
}
#show_num{
	position: absolute;
	z-index: 111;
}
.show_num{
	border: 1px solid #bfbfbf;
	background-color: #fff;
	width: 90px;
	height: 24px;
	line-height: 24px;
	text-indent: 5px;
	position: relative;
	z-index: 0;
}
#show_num em{
	position:absolute;
	bottom:-7px;
	left:4px;
	overflow:hidden;
	width:13px;
	height:13px;
	background:#fff;
	border-bottom:1px solid #bfbfbf;
	border-right:1px solid #bfbfbf;
	-webkit-transform:rotate(45deg);
	-moz-transform:rotate(45deg);
	-o-transform:rotate(45deg);
	transform:rotate(45deg);
	z-index: -2;
}
</style>
</head>
<body>

<canvas id="canvas"></canvas>

<div id="show_num"></div>

<script type="text/javascript" src="jquery-1.7.1.min.js"></script>
<script type="text/javascript" src="canvas.js"></script>
</body>
</html>

JS代码(canvas.js):

(function(){
	var data ={
	width:900,height:500,maxValue:30,xAxis:["0星","1星","2星","3星","4星","5星","待审核"],starRate:[0,2,5,15,23,26,30],starNum:[0,3,8,12,15,16,20],rectColor:["#b5cb85","#b5cb85","#b5cb85","#b5cb85","#b5cb85","#b5cb85","#b5cb85"],}
;
	var canvas,ctx;
	var x_scale = 0,y_scale = 0,heightVal=0,stepWidth=0,stepHeight=0;
	var stepYArr = [],stepXArr = [];
	var arrowWidth = 4,arrowHeight = 6;
	var stepNum = 3;
	var str1 = "百分比";
	var str2 = "(%)";
	var init = function(data){
	canvas = document.getElementById("canvas");
	canvas.width = data.width;
	canvas.height = data.height;
	x_scale = data.width/10;
	//x轴刻度 y_scale = data.height/10;
	//y轴刻度 ctx = canvas.getContext("2d");
	drawXAxis(data.xAxis);
	//画X轴 drawYaxis(data.maxValue,stepNum);
	//画Y轴 drawBg();
	//画背景 drawRect(data.starRate,data.rectColor);
	//画柱形 $(canvas).on("mousemove",mouseMove);
	$(canvas).on("click",mouseClick);
}
/*画x轴*/
 var drawXAxis = function(xAxis){
	ctx.beginPath();
	//清除之前的路径，开始一条新的路径 //画x轴横线 ctx.moveTo(x_scale,canvas.height-y_scale);
	ctx.lineTo(canvas.width-x_scale,canvas.height-y_scale);
	//加标签 var len = xAxis.length;
	stepWidth = (canvas.width - 2*x_scale)/len;
	//一个类型所占的宽度 for(var i=0;
	i<len;
	i++){
	//画标签，默认字体为12个像素 ctx.font = "normal normal bold 14px 微软雅黑";
	ctx.fillStyle = "#285ea6";
	//字体居中 ctx.fillText(xAxis[i],x_scale+(i+0.5)*stepWidth-xAxis[i].length*14/2,canvas.height-y_scale + 24);
	stepXArr.push(x_scale+(i+1)*stepWidth);
}
ctx.stroke();
	//加箭头 drawArrow(canvas.width-x_scale,canvas.height-y_scale,false);
}
//画y轴 var drawYaxis = function(maxValue,step){
	ctx.beginPath();
	//画Y轴线 ctx.moveTo(x_scale,y_scale);
	ctx.lineTo(x_scale,canvas.height-y_scale);
	//加标签 stepHeight = (canvas.height - 3*y_scale)/step;
	heightVal = (canvas.height - 3*y_scale )/maxValue;
	//比例 for(var i=1;
	i<=step;
	i++){
	ctx.font = "normal normal bold 14px 微软雅黑";
	//字体居中 ctx.fillText(maxValue/step*i,x_scale-20,canvas.height-y_scale-stepHeight*i+7);
	stepYArr.push(canvas.height-y_scale-stepHeight*i);
}
ctx.stroke();
	//加箭头 drawArrow(x_scale,y_scale,true);
	//加Y轴顶部字体 ctx.fillText(str1,x_scale-50,y_scale-8);
	ctx.fillText(str2,x_scale-40,y_scale+12);
}
//画柱形图 var drawRect = function(starRate,colorArr){
	var rectWidth = stepWidth/2;
	for(var i=0,len=starRate.length;
	i<len;
	i++){
	ctx.beginPath();
	ctx.fillStyle = colorArr[i];
	ctx.fillRect(stepXArr[i]-stepWidth/2-rectWidth/2,canvas.height-y_scale-starRate[i]*heightVal,rectWidth,starRate[i]*heightVal);
	ctx.fill();
}
}
//画箭头 var drawArrow = function(left,top,flag){
	ctx.beginPath();
	ctx.moveTo(left,top);
	if(flag){
	ctx.lineTo(left+arrowWidth,top);
	ctx.lineTo(left,top-arrowHeight);
	ctx.lineTo(left-arrowWidth,top);
}
else{
	ctx.lineTo(left,top-arrowWidth);
	ctx.lineTo(left+arrowHeight,top);
	ctx.lineTo(left,top+arrowWidth);
}
ctx.fillStyle = "#666";
	ctx.fill();
}
//画背景矩形 var drawBg = function(){
	for(var i=0;
	i<stepYArr.length;
	i++){
	ctx.beginPath();
	ctx.fillStyle = "#f2f2f2";
	if(i%2 == 0){
	ctx.fillRect(x_scale+1,stepYArr[i],canvas.width-2*x_scale-stepWidth/4,stepHeight);
	ctx.fill();
}
}
}
//mousemove事件 var mouseMove = function(e){
	e.preventDefault();
	var x = e.clientX;
	var y = e.clientY;
	for(var i=0;
	i<data.starRate.length;
	i++){
	if(x>stepXArr[i]-stepWidth*3/4&&x<stepXArr[i]-stepWidth/4&&y<canvas.height-y_scale&&y>canvas.height-y_scale-data.starRate[i]*heightVal&&data.starRate[i]!=0){
	//画矩形线 ctx.beginPath();
	ctx.strokeStyle = "#00b050";
	ctx.lineWidth = 2;
	ctx.rect(stepXArr[i]-stepWidth*3/4+2,canvas.height-y_scale-data.starRate[i]*heightVal+2,stepWidth/2-4,data.starRate[i]*heightVal-3);
	ctx.stroke();
	//显示数字 $("#show_num").html('<div class="show_num">'+data.starRate[i]+'%('+data.starNum[i]+'个)</div><em></em>');
	$("#show_num").css({
	"left":stepXArr[i]-stepWidth*3/4+10,"top":canvas.height-y_scale-data.starRate[i]*heightVal-28}
);
	break;
}
else{
	//重绘矩形 $("#show_num").children().remove();
	ctx.beginPath();
	ctx.strokeStyle = "#b5cb85";
	ctx.globalCompositeOperation="source-over";
	ctx.fillRect(stepXArr[i]-stepWidth*3/4,canvas.height-y_scale-data.starRate[i]*heightVal,stepWidth/2,data.starRate[i]*heightVal);
	ctx.fill();
}
}
}
//click事件 var mouseClick = function(e){
	e.preventDefault();
	var x = e.clientX;
	var y = e.clientY;
	for(var i=0;
	i<data.starRate.length;
	i++){
	if(x>stepXArr[i]-stepWidth*3/4&&x<stepXArr[i]-stepWidth/4&&y<canvas.height-y_scale&&y>canvas.height-y_scale-data.starRate[i]*heightVal&&data.starRate[i]!=0){
	window.location.href = "detail.html";
	break;
}
}
}
init(data);
	//柱状图}
)();
