html5 canvas圆形时钟代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 html5 canvas圆形时钟代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

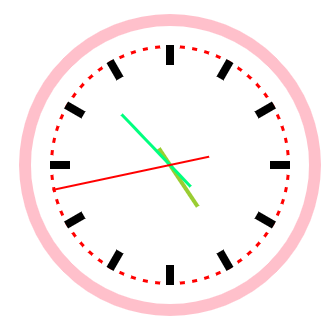

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
<title>html5 canvas圆形时钟代码</title>
<style type="text/css">
	#myCanvas{
		display: block;
		margin:10px auto;
	}
</style>

</head>
<body>

<canvas id="myCanvas" width="400" height="400"></canvas>
<script type="text/javascript">
	var myCanvas = document.getElementById('myCanvas');
	var c = myCanvas.getContext('2d');
	function clock(){
		c.clearRect(0,0,400,400);
		var data = new Date();
		var sec =data.getSeconds();
		var min =data.getMinutes();
		var hour=data.getHours();

		c.save();
		c.translate(200,200);
		c.rotate(-Math.PI/2);


		//分钟刻度线
		for(var i=0;i<60;i++){	//画12个刻度线
			c.beginPath();
			c.strokeStyle = "#f00";
			c.lineWidth = 5 ;
			c.moveTo(117,0);
			c.lineTo(120,0);
			c.stroke();
			c.rotate(Math.PI/30); //每个6deg画一个时钟刻度线
			c.closePath();
		}


		//时钟刻度线
		for(var i=0;i<12;i++){	//画12个刻度线
			c.beginPath();
			c.strokeStyle = "#000";
			c.lineWidth = 8 ;
			c.moveTo(100,0);
			c.lineTo(120,0);
			c.stroke();
			c.rotate(Math.PI/6); //每个30deg画一个时钟刻度线
			c.closePath();
		}
		//外表盘
		c.beginPath();
		c.strokeStyle = "pink";
		c.arc(0,0,145,0,Math.PI*2);
		c.lineWidth = 12 ;
		c.stroke();
		c.closePath();

		//画时针
		hour = hour>12?hour-12:hour;
//				console.log(hour);
		c.beginPath();
		c.save();
		c.rotate(Math.PI/6*hour+Math.PI/6*min/60+Math.PI/6*sec/3600);
		c.strokeStyle = "yellowgreen";
		c.lineWidth = 4 ;
		c.moveTo(-20,0);
		c.lineTo(50,0);
		c.stroke();
		c.restore();
		c.closePath();


		//画分针
//				console.log(min);
		c.beginPath();
		c.save();
		c.rotate(Math.PI/30*min+Math.PI/30*sec/60);
		c.strokeStyle = "springgreen";
		c.lineWidth = 3 ;
		c.moveTo(-30,0);
		c.lineTo(70,0);
		c.stroke();
		c.restore();
		c.closePath();


		//画秒针
		c.beginPath();
		c.save();
		c.rotate(Math.PI/30*sec);
		c.strokeStyle = "red";
		c.lineWidth = 2 ;
		c.moveTo(-40,0);
		c.lineTo(120,0);
		c.stroke();
		c.restore();
		c.closePath();

		c.restore();
	}
	clock();
	setInterval(clock,1000);
</script>
</body>
</html>
