以下是 HTML5手机三级联动城市选择代码 的示例演示效果:

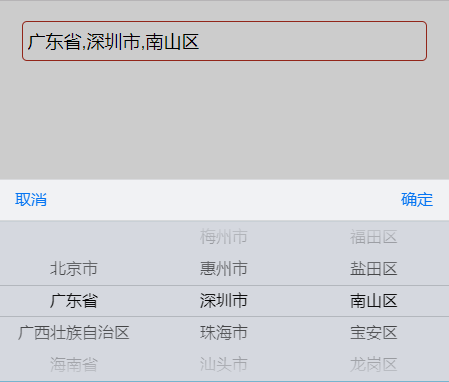

部分效果截图:
HTML代码(index.html):
<!doctype html>
<html>
<head>
<meta charset="utf-8" />
<meta name="viewport" content="width=device-width, initial-scale=1, maximum-scale=1, minimum-scale=1, user-scalable=no, minimal-ui">
<meta content="yes" name="apple-mobile-web-app-capable">
<meta content="black" name="apple-mobile-web-app-status-bar-style">
<meta content="telephone=no" name="format-detection">
<meta content="email=no" name="format-detection">
<title>HTML5手机三级联动城市选择代码</title>
<style type="text/css">
* {
margin: 0;
padding: 0;
-webkit-appearance: none; //去掉浏览器默认样式
-webkit-tap-highlight-color: rgba(0, 0, 0, 0);
-webkit-touch-callout: none;
box-sizing: border-box;
}
html,
body {
margin: 0 auto;
width: 100%;
min-height: 100%;
overflow-x: hidden;
-webkit-user-select: none;
}
body {
font-family: Helvetica Neue, Helvetica, Arial, sans-serif;
-webkit-text-size-adjust: 100%; //关闭自动调整字体
-webkit-overflow-scrolling: touch;
overflow-scrolling: touch;
}
input {
width: 90%;
height: 40px;
font-size: 18px;
border: 1px solid #b72f20;
border-radius: 5px;
margin: 20px 5% 0 5%;
padding: 5px;
}
/*
h1 {
background-color: #b72f20;
color: #fff;
font-size: 25px;
text-align: center;
padding: 10px;
}*/
</style>
<link rel="stylesheet" href="css/LArea.css">
</head>
<body>
<div>
<div class="content-block">
<input id="demo1" type="text" readonly="" placeholder="城市选择特效" value="广东省,深圳市,南山区">
<input id="value1" type="hidden" value="20,234,504">
</div>
<!-- <div class="content-block">
<input id="demo2" type="text" readonly="" placeholder="城市选择特效" />
<input id="value2" type="hidden" />
</div> -->
</div>
<script src="js/LAreaData1.js"></script>
<script src="js/LAreaData2.js"></script>
<script src="js/LArea.js"></script>
<script>
var area1 = new LArea();
area1.init({
'trigger': '#demo1', //触发选择控件的文本框，同时选择完毕后name属性输出到该位置
'valueTo': '#value1', //选择完毕后id属性输出到该位置
'keys': {
id: 'id',
name: 'name'
}, //绑定数据源相关字段 id对应valueTo的value属性输出 name对应trigger的value属性输出
'type': 1, //数据源类型
'data': LAreaData //数据源
});
area1.value=[1,13,3];//控制初始位置，注意：该方法并不会影响到input的value
var area2 = new LArea();
area2.init({
'trigger': '#demo2',
'valueTo': '#value2',
'keys': {
id: 'value',
name: 'text'
},
'type': 2,
'data': [provs_data, citys_data, dists_data]
});
</script>
</body>
</html>JS代码(LArea.js):
/** * LArea移动端城市选择控件 * * version:1.7.2 * * author:黄磊 * * git:https://github.com/xfhxbb/LArea * * Copyright 2016 * * Licensed under MIT * * 最近修改于： 2016-6-12 16:47:41 */
window.LArea = (function(){
var MobileArea = function(){
this.gearArea;
this.data;
this.index = 0;
this.value = [0,0,0];
}
MobileArea.prototype ={
init:function(params){
this.params = params;
this.trigger = document.querySelector(params.trigger);
if(params.valueTo){
this.valueTo=document.querySelector(params.valueTo);
}
this.keys = params.keys;
this.type = params.type||1;
switch (this.type){
case 1:case 2:break;
default:throw new Error('错误提示:没有这种数据源类型');
break;
}
this.bindEvent();
}
,getData:function(callback){
var _self = this;
if (typeof _self.params.data == "object"){
_self.data = _self.params.data;
callback();
}
else{
var xhr = new XMLHttpRequest();
xhr.open('get',_self.params.data);
xhr.onload = function(e){
if ((xhr.status >= 200 && xhr.status < 300) || xhr.status === 0){
var responseData = JSON.parse(xhr.responseText);
_self.data = responseData.data;
if (callback){
callback()}
;
}
}
xhr.send();
}
}
,bindEvent:function(){
var _self = this;
//呼出插件 function popupArea(e){
_self.gearArea = document.createElement("div");
_self.gearArea.className = "gearArea";
_self.gearArea.innerHTML = '<div class="area_ctrl slideInUp">' + '<div class="area_btn_box">' + '<div class="area_btn larea_cancel">取消</div>' + '<div class="area_btn larea_finish">确定</div>' + '</div>' + '<div class="area_roll_mask">' + '<div class="area_roll">' + '<div>' + '<div class="gear area_province" data-areatype="area_province"></div>' + '<div class="area_grid">' + '</div>' + '</div>' + '<div>' + '<div class="gear area_city" data-areatype="area_city"></div>' + '<div class="area_grid">' + '</div>' + '</div>' + '<div>' + '<div class="gear area_county" data-areatype="area_county"></div>' + '<div class="area_grid">' + '</div>' + '</div>' + '</div>' + '</div>' + '</div>';
document.body.appendChild(_self.gearArea);
areaCtrlInit();
var larea_cancel = _self.gearArea.querySelector(".larea_cancel");
larea_cancel.addEventListener('touchstart',function(e){
_self.close(e);
}
);
var larea_finish = _self.gearArea.querySelector(".larea_finish");
larea_finish.addEventListener('touchstart',function(e){
_self.finish(e);
}
);
var area_province = _self.gearArea.querySelector(".area_province");
var area_city = _self.gearArea.querySelector(".area_city");
var area_county = _self.gearArea.querySelector(".area_county");
area_province.addEventListener('touchstart',gearTouchStart);
area_city.addEventListener('touchstart',gearTouchStart);
area_county.addEventListener('touchstart',gearTouchStart);
area_province.addEventListener('touchmove',gearTouchMove);
area_city.addEventListener('touchmove',gearTouchMove);
area_county.addEventListener('touchmove',gearTouchMove);
area_province.addEventListener('touchend',gearTouchEnd);
area_city.addEventListener('touchend',gearTouchEnd);
area_county.addEventListener('touchend',gearTouchEnd);
}
//初始化插件默认值 function areaCtrlInit(){
_self.gearArea.querySelector(".area_province").setAttribute("val",_self.value[0]);
_self.gearArea.querySelector(".area_city").setAttribute("val",_self.value[1]);
_self.gearArea.querySelector(".area_county").setAttribute("val",_self.value[2]);
switch (_self.type){
case 1:_self.setGearTooth(_self.data);
break;
case 2:_self.setGearTooth(_self.data[0]);
break;
}
}
//触摸开始 function gearTouchStart(e){
e.preventDefault();
var target = e.target;
while (true){
if (!target.classList.contains("gear")){
target = target.parentElement;
}
else{
break}
}
clearInterval(target["int_" + target.id]);
target["old_" + target.id] = e.targetTouches[0].screenY;
target["o_t_" + target.id] = (new Date()).getTime();
var top = target.getAttribute('top');
if (top){
target["o_d_" + target.id] = parseFloat(top.replace(/em/g,""));
}
else{
target["o_d_" + target.id] = 0;
}
target.style.webkitTransitionDuration = target.style.transitionDuration = '0ms';
}
//手指移动 function gearTouchMove(e){
e.preventDefault();
var target = e.target;
while (true){
if (!target.classList.contains("gear")){
target = target.parentElement;
}
else{
break}
}
target["new_" + target.id] = e.targetTouches[0].screenY;
target["n_t_" + target.id] = (new Date()).getTime();
var f = (target["new_" + target.id] - target["old_" + target.id]) * 30 / window.innerHeight;
target["pos_" + target.id] = target["o_d_" + target.id] + f;
target.style["-webkit-transform"] = 'translate3d(0,' + target["pos_" + target.id] + 'em,0)';
target.setAttribute('top',target["pos_" + target.id] + 'em');
if(e.targetTouches[0].screenY<1){
gearTouchEnd(e);
}
;
}
//离开屏幕 function gearTouchEnd(e){
e.preventDefault();
var target = e.target;
while (true){
if (!target.classList.contains("gear")){
target = target.parentElement;
}
else{
break;
}
}
var flag = (target["new_" + target.id] - target["old_" + target.id]) / (target["n_t_" + target.id] - target["o_t_" + target.id]);
if (Math.abs(flag) <= 0.2){
target["spd_" + target.id] = (flag < 0 ? -0.08:0.08);
}
else{
if (Math.abs(flag) <= 0.5){
target["spd_" + target.id] = (flag < 0 ? -0.16:0.16);
}
else{
target["spd_" + target.id] = flag / 2;
}
}
if (!target["pos_" + target.id]){
target["pos_" + target.id] = 0;
}
rollGear(target);
}
//缓动效果 function rollGear(target){
var d = 0;
var stopGear = false;
function setDuration(){
target.style.webkitTransitionDuration = target.style.transitionDuration = '200ms';
stopGear = true;
}
clearInterval(target["int_" + target.id]);
target["int_" + target.id] = setInterval(function(){
var pos = target["pos_" + target.id];
var speed = target["spd_" + target.id] * Math.exp(-0.03 * d);
pos += speed;
if (Math.abs(speed) > 0.1){
}
else{
var b = Math.round(pos / 2) * 2;
pos = b;
setDuration();
}
if (pos > 0){
pos = 0;
setDuration();
}
var minTop = -(target.dataset.len - 1) * 2;
if (pos < minTop){
pos = minTop;
setDuration();
}
if (stopGear){
var gearVal = Math.abs(pos) / 2;
setGear(target,gearVal);
clearInterval(target["int_" + target.id]);
}
target["pos_" + target.id] = pos;
target.style["-webkit-transform"] = 'translate3d(0,' + pos + 'em,0)';
target.setAttribute('top',pos + 'em');
d++;
}
,30);
}
//控制插件滚动后停留的值 function setGear(target,val){
val = Math.round(val);
target.setAttribute("val",val);
switch (_self.type){
case 1:_self.setGearTooth(_self.data);
break;
case 2:switch(target.dataset['areatype']){
case 'area_province':_self.setGearTooth(_self.data[0]);
break;
case 'area_city':var ref = target.childNodes[val].getAttribute('ref');
var childData=[];
var nextData= _self.data[2];
for (var i in nextData){
if(i==ref){
childData = nextData[i];
break;
}
}
;
_self.index=2;
_self.setGearTooth(childData);
break;
}
}
}
_self.getData(function(){
_self.trigger.addEventListener('click',popupArea);
}
);
}
,//重置节点个数 setGearTooth:function(data){
var _self = this;
var item = data || [];
var l = item.length;
var gearChild = _self.gearArea.querySelectorAll(".gear");
var gearVal = gearChild[_self.index].getAttribute('val');
var maxVal = l - 1;
if (gearVal > maxVal){
gearVal = maxVal;
}
gearChild[_self.index].setAttribute('data-len',l);
if (l > 0){
var id = item[gearVal][this.keys['id']];
var childData;
switch (_self.type){
case 1:childData = item[gearVal].child break;
case 2:var nextData= _self.data[_self.index+1] for (var i in nextData){
if(i==id){
childData = nextData[i];
break;
}
}
;
break;
}
var itemStr = "";
for (var i = 0;
i < l;
i++){
itemStr += "<div class='tooth' ref='" + item[i][this.keys['id']] + "'>" + item[i][this.keys['name']] + "</div>";
}
gearChild[_self.index].innerHTML = itemStr;
gearChild[_self.index].style["-webkit-transform"] = 'translate3d(0,' + (-gearVal * 2) + 'em,0)';
gearChild[_self.index].setAttribute('top',-gearVal * 2 + 'em');
gearChild[_self.index].setAttribute('val',gearVal);
_self.index++;
if (_self.index > 2){
_self.index = 0;
return;
}
_self.setGearTooth(childData);
}
else{
gearChild[_self.index].innerHTML = "<div class='tooth'></div>";
gearChild[_self.index].setAttribute('val',0);
if(_self.index==1){
gearChild[2].innerHTML = "<div class='tooth'></div>";
gearChild[2].setAttribute('val',0);
}
_self.index = 0;
}
}
,finish:function(e){
var _self = this;
var area_province = _self.gearArea.querySelector(".area_province");
var area_city = _self.gearArea.querySelector(".area_city");
var area_county = _self.gearArea.querySelector(".area_county");
var provinceVal = parseInt(area_province.getAttribute("val"));
var provinceText = area_province.childNodes[provinceVal].textContent;
var provinceCode = area_province.childNodes[provinceVal].getAttribute('ref');
var cityVal = parseInt(area_city.getAttribute("val"));
var cityText = area_city.childNodes[cityVal].textContent;
var cityCode = area_city.childNodes[cityVal].getAttribute('ref');
var countyVal = parseInt(area_county.getAttribute("val"));
var countyText = area_county.childNodes[countyVal].textContent;
var countyCode = area_county.childNodes[countyVal].getAttribute('ref');
_self.trigger.value = provinceText + ((cityText)?(',' + cityText):(''))+ ((countyText)?(',' + countyText):(''));
_self.value = [provinceVal,cityVal,countyVal];
if(this.valueTo){
this.valueTo.value= provinceCode +((cityCode)?(',' + cityCode):('')) + ((countyCode)?(',' + countyCode):(''));
}
_self.close(e);
}
,close:function(e){
e.preventDefault();
var _self = this;
var evt = new CustomEvent('input');
_self.trigger.dispatchEvent(evt);
document.body.removeChild(_self.gearArea);
_self.gearArea=null;
}
}
return MobileArea;
}
)()CSS代码(LArea.css):
/** * LArea移动端城市选择控件 * * version:1.7.2 * * author:黄磊 * * git:https://github.com/xfhxbb/LArea * * Copyright 2016 * * Licensed under MIT * * 最近修改于： 2016-6-12 16:47:41 */
.gearArea{font-family:Helvetica Neue,Helvetica,Arial,sans-serif;font-size:10px;background-color:rgba(0,0,0,0.2);display:block;position:fixed;top:0;left:0;width:100%;height:100%;z-index:9900;overflow:hidden;-webkit-animation-fill-mode:both;animation-fill-mode:both}
.area_ctrl{vertical-align:middle;background-color:#d5d8df;color:#000;margin:0;height:auto;width:100%;position:absolute;left:0;bottom:0;z-index:9901;overflow:hidden;-webkit-transform:translate3d(0,0,0);transform:translate3d(0,0,0)}
.slideInUp{-webkit-animation:slideInUp .3s;animation:slideInUp .3s;}
@-webkit-keyframes slideInUp{from{-webkit-transform:translate3d(0,100%,0);transform:translate3d(0,100%,0)}
to{-webkit-transform:translate3d(0,0,0);transform:translate3d(0,0,0)}
}
@keyframes slideInUp{from{-webkit-transform:translate3d(0,100%,0);transform:translate3d(0,100%,0)}
to{-webkit-transform:translate3d(0,0,0);transform:translate3d(0,0,0)}
}
.area_roll{display:-webkit-box;display:-webkit-flex;display:-ms-flexbox;display:flex;width:100%;height:auto;overflow:hidden;background-color:transparent;-webkit-mask:-webkit-gradient(linear,0% 50%,0% 100%,from(#debb47),to(rgba(36,142,36,0)));-webkit-mask:-webkit-linear-gradient(top,#debb47 50%,rgba(36,142,36,0))}
.area_roll>div{font-size:1.6em;height:10em;float:left;background-color:transparent;position:relative;overflow:hidden;-webkit-box-flex:1;-webkit-flex:1;-ms-flex:1;flex:1}
.area_roll>div .gear{width:100%;float:left;position:absolute;z-index:9902;margin-top:4em}
.area_roll_mask{-webkit-mask:-webkit-gradient(linear,0% 40%,0% 0%,from(#debb47),to(rgba(36,142,36,0)));-webkit-mask:-webkit-linear-gradient(bottom,#debb47 50%,rgba(36,142,36,0));padding:0}
.area_grid{position:relative;top:4em;width:100%;height:2em;margin:0;box-sizing:border-box;z-index:0;border-top:1px solid #abaeb5;border-bottom:1px solid #abaeb5}
.area_roll>div:nth-child(3) .area_grid>div{left:42%}
.area_btn{color:#0575f2;font-size:1.6em;line-height:1em;text-align:center;padding:.8em 1em}
.area_btn_box:before,.area_btn_box:after{content:'';position:absolute;height:1px;width:100%;display:block;background-color:#96979b;z-index:15;-webkit-transform:scaleY(0.33);transform:scaleY(0.33)}
.area_btn_box{display:-webkit-box;display:-webkit-flex;display:-ms-flexbox;display:flex;-webkit-box-pack:justify;-webkit-justify-content:space-between;-ms-flex-pack:justify;justify-content:space-between;-webkit-box-align:stretch;-webkit-align-items:stretch;-ms-flex-align:stretch;align-items:stretch;background-color:#f1f2f4;position:relative}
.area_btn_box:before{left:0;top:0;-webkit-transform-origin:50% 20%;transform-origin:50% 20%}
.area_btn_box:after{left:0;bottom:0;-webkit-transform-origin:50% 70%;transform-origin:50% 70%}
.tooth{height:2em;line-height:2em;text-align:center;display:-webkit-box;display:-webkit-flex;display:-ms-flexbox;display:flex;line-clamp:1;-webkit-box-orient:vertical;-webkit-box-direction:normal;-webkit-flex-direction:column;-ms-flex-direction:column;flex-direction:column;overflow:hidden}
分享到QQ
分享到微博
微信扫一扫
