HTML5实现点击水波扩散效果

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 HTML5实现点击水波扩散效果的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

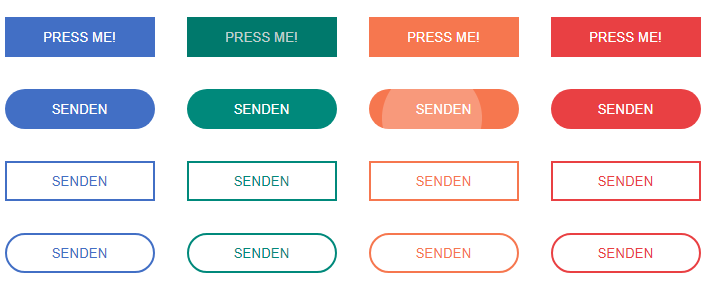

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8">
    <title>HTML5实现点击水波扩散效果</title>
    <style>
        * {
            box-sizing: border-box;
            outline: none;
        }

        body {
            font-family: 'Open Sans';
            font-size: 100%;
            font-weight: 300;
            line-height: 1.5em;
            text-align: center;
        }

        h1 {
            color: #666666;
            font-size: 2rem;
            line-height: 1.5em;
            margin: 2em 0 2em 0;
        }

        .box {
            margin: 1rem;
            width: 18.75rem;
        }

        .box img {
            width: 100%;
        }

        .btn {
            border: none;
            color: white;
            overflow: hidden;
            margin: 1rem;
            padding: 0;
            text-transform: uppercase;
            width: 150px;
            height: 40px;
        }

        .btn.color-1 {
            background-color: #426fc5;
        }

        .btn.color-2 {
            background-color: #00897b;
        }

        .btn.color-3 {
            background-color: #f6774f;
        }

        .btn.color-4 {
            background-color: #e94043;
        }

        .btn-border.color-1 {
            background-color: transparent;
            border: 2px solid #426fc5;
            color: #426fc5;
        }

        .btn-border.color-2 {
            background-color: transparent;
            border: 2px solid #00897b;
            color: #00897b;
        }

        .btn-border.color-3 {
            background-color: transparent;
            border: 2px solid #f6774f;
            color: #f6774f;
        }

        .btn-border.color-4 {
            background-color: transparent;
            border: 2px solid #e94043;
            color: #e94043;
        }

        .btn-round {
            border-radius: 10em;
        }

        .material-design {
            position: relative;
        }

        .material-design canvas {
            opacity: 0.25;
            position: absolute;
            top: 0;
            left: 0;
        }

        .container {
            align-content: center;
            align-items: flex-start;
            display: flex;
            flex-direction: row;
            flex-wrap: wrap;
            justify-content: center;
            margin: 0 auto;
            max-width: 46rem;
        }
    </style>

    <script src="js/prefixfree.min.js"></script>

</head>

<body>

    <h1>Material Design Buttons</h1>
    <section class="container">
        <button class="btn color-1 material-design" data-color="#2f5398">Press me!</button>
        <button class="btn color-2 material-design" data-color="#004740">Press me!</button>
        <button class="btn color-3 material-design" data-color="#f34711">Press me!</button>
        <button class="btn color-4 material-design" data-color="#d2181c">Press me!</button>

        <button class="btn btn-round color-1 material-design" data-color="#ffffff">Senden</button>
        <button class="btn btn-round color-2 material-design" data-color="#ffffff">Senden</button>
        <button class="btn btn-round color-3 material-design" data-color="#ffffff">Senden</button>
        <button class="btn btn-round color-4 material-design" data-color="#ffffff">Senden</button>

        <button class="btn btn-border color-1 material-design" data-color="#2f5398">Senden</button>
        <button class="btn btn-border color-2 material-design" data-color="#004740">Senden</button>
        <button class="btn btn-border color-3 material-design" data-color="#f34711">Senden</button>
        <button class="btn btn-border color-4 material-design" data-color="#d2181c">Senden</button>

        <button class="btn btn-border btn-round color-1 material-design" data-color="#426FC5">Senden</button>
        <button class="btn btn-border btn-round color-2 material-design" data-color="#00897b">Senden</button>
        <button class="btn btn-border btn-round color-3 material-design" data-color="#f6774f">Senden</button>
        <button class="btn btn-border btn-round color-4 material-design" data-color="#e94043">Senden</button>

    </section>
    <script src="js/index.js"></script>
</body>
</html>

JS代码(index.js):

var canvas ={
}
,centerX = 0,centerY = 0,color = '',containers = document.getElementsByClassName('material-design') context ={
}
,element ={
}
,radius = 0,requestAnimFrame = function (){
	return ( window.requestAnimationFrame || window.mozRequestAnimationFrame || window.oRequestAnimationFrame || window.msRequestAnimationFrame || function (callback){
	window.setTimeout(callback,1000 / 60);
}
);
}
(),init = function (){
	containers = Array.prototype.slice.call(containers);
	for (var i = 0;
	i < containers.length;
	i += 1){
	canvas = document.createElement('canvas');
	canvas.addEventListener('click',press,false);
	containers[i].appendChild(canvas);
	canvas.style.width ='100%';
	canvas.style.height='100%';
	canvas.width = canvas.offsetWidth;
	canvas.height = canvas.offsetHeight;
}
}
,press = function (event){
	color = event.toElement.parentElement.dataset.color;
	element = event.toElement;
	context = element.getContext('2d');
	radius = 0;
	centerX = event.offsetX;
	centerY = event.offsetY;
	context.clearRect(0,0,element.width,element.height);
	draw();
}
,draw = function (){
	context.beginPath();
	context.arc(centerX,centerY,radius,0,2 * Math.PI,false);
	context.fillStyle = color;
	context.fill();
	radius += 2;
	if (radius < element.width){
	requestAnimFrame(draw);
}
}
;
	init();

CSS代码(style.css):

@import url(http://fonts.googleapis.com/css?family=Open+Sans:300);*{box-sizing:border-box;outline:none;}
body{font-family:'Open Sans';font-size:100%;font-weight:300;line-height:1.5em;text-align:center;}
h1{color:#666666;font-size:2rem;line-height:1.5em;margin:2em 0 2em 0;}
.box{margin:1rem;width:18.75rem;}
.box img{width:100%;}
.btn{border:none;color:white;overflow:hidden;margin:1rem;padding:0;text-transform:uppercase;width:150px;height:40px;}
.btn.color-1{background-color:#426fc5;}
.btn.color-2{background-color:#00897b;}
.btn.color-3{background-color:#f6774f;}
.btn.color-4{background-color:#e94043;}
.btn-border.color-1{background-color:transparent;border:2px solid #426fc5;color:#426fc5;}
.btn-border.color-2{background-color:transparent;border:2px solid #00897b;color:#00897b;}
.btn-border.color-3{background-color:transparent;border:2px solid #f6774f;color:#f6774f;}
.btn-border.color-4{background-color:transparent;border:2px solid #e94043;color:#e94043;}
.btn-round{border-radius:10em;}
.material-design{position:relative;}
.material-design canvas{opacity:0.25;position:absolute;top:0;left:0;}
.container{align-content:center;align-items:flex-start;display:flex;flex-direction:row;flex-wrap:wrap;justify-content:center;margin:0 auto;max-width:46rem;}
