jQuery旋钮插件jQuery knob js代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 jQuery旋钮插件jQuery knob js代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

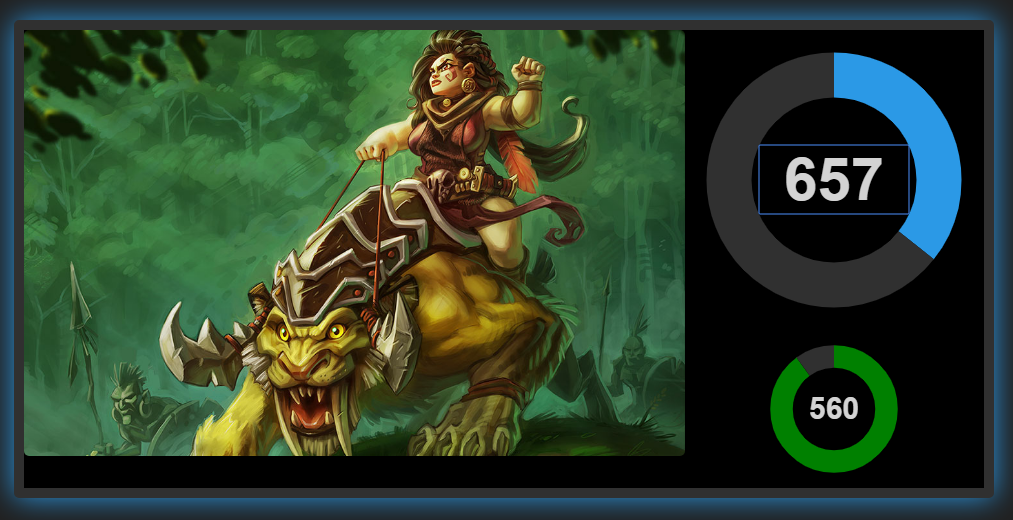

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html>
    <head>
        <title>jQuery旋钮插件jQuery knob</title>
		<meta http-equiv="Content-Type" content="text/html; charset=utf-8">
        <script src="js/jquery-1.7.2.min.js"></script>
        <script src="js/jquery.knob-1.0.1.js"></script>
        <script>
            $(function() {
                $(".knob").knob({
					max: 940,
					min: 500,
					thickness: .3,
					fgColor: '#2B99E6',
					bgColor: '#303030',
					'release':function(e){
						$('#img').animate({width:e});
					}
                });

				$(".knob2").knob({
					'release':function(e){
						$('#img').animate({width:e});
					}
				});
            });
        </script>
		<style>
			body{
				background: #202020;
			}
			header{
				margin: 0 auto;
				width: 960px;
				color: #808080;
				font-weight: bold;
				font-family: Arial;
			}

			header h1{
				font-size: 44px;
			}

			#container{
				margin: 0 auto;
				padding:0;
				width: 960px;
				border: 10px solid #303030;
				border-radius: 5px 5px 5px 5px;
				background: #000;
				box-shadow: 0px 0px 30px #2B99E6;
			}

			#imgwrapper{
				width: 460px;
				float: left;
				text-align: center;
				padding:0;
				margin:0;
			}

			#knobwrapper{
				width: 300px;
				float: right;
				text-align: center;
			}

			#img{
				margin: 0 auto;
				width: 500px;
				border-radius: 5px 5px 5px 5px;
			}

			.clear{
				clear:both;
			}
		</style>
    </head>
    <body>
		<header>
			<h1>jQuery Knob Demo</h1>
		</header>
		<div id="container">
			<div id="imgwrapper">
				<img id="img" src="img/super.jpg" />
			</div>
			<div id="knobwrapper">
				<input class="knob" data-width="300" data-skin="tron" data-displayInput="true" value="200">
				<div>
				<input class="knob2" data-width="150" data-fgColor="green" data-bgColor="#303030" data-skin="tron" data-thickness=".3" data-min="200" data-max="600" value="200">
				</div>
			</div>
			<div class="clear"></div>
		</div>
    </body>
</html>

JS代码(jquery.knob-1.0.1.js):

/** * Knob - jQuery Plugin * Nice,configurable,backward compatible knob UI component * * Copyright (c) 2011 - 2013 Anthony Terrien * Version:1.0.0 (23/11/2011) * Requires:jQuery v1.7+ * * Under MIT and GPL licenses:* http://www.opensource.org/licenses/mit-license.php * http://www.gnu.org/licenses/gpl.html */
$(function(){
	$.fn.knob = function( gopt ){
	return this.each( function(){
	var $this = $(this);
	if( $this.data('knobed') ) return $this;
	$this.data('knobed',true);
	var opt = $.extend({
	'min':$this.data('min') || 0,'max':$this.data('max') || 100,'cursor':$this.data('cursor'),'thickness':$this.data('thickness') || .3,'width':$this.data('width') || 200,'displayInput':$this.data('displayinput')==null || $this.data('displayinput'),'fgColor':$this.data('fgcolor') || '#87CEEB' //#222222','bgColor':$this.data('bgcolor') || '#EEEEEE','readOnly':$this.data('readonly'),'draw':/** * @param int a angle * @param int v current value * @param array opt plugin options * @param context ctx Canvas context 2d */
 function( a,v,opt,ctx ){
	var sa = 1.5*Math.PI,ea = sa+a,r = opt.width/2,lw = r*opt.thickness;
	ctx.clearRect(0,0,opt.width,opt.width);
	ctx.lineWidth = lw;
	opt.cursor && ( sa = ea-0.3 ) && ( ea = ea+0.3 );
	ctx.beginPath();
	ctx.strokeStyle = opt.fgColor;
	ctx.arc( r,r,r-lw,sa,ea,false);
	ctx.stroke();
	ctx.beginPath();
	ctx.strokeStyle = opt.bgColor;
	ctx.arc( r,r,r-lw,sa,(v==opt.min && !opt.cursor) ? sa+0.0001:ea,true );
	ctx.stroke();
}
,'change':/** * @param int v Current value */
 function(v){
}
,'release':/** * @param int v Current value */
 function(v){
}
}
,gopt );
	var c = $('<canvas width="'+opt.width+'" height="'+opt.width+'"></canvas>'),wd = $('<div style=width:'+opt.width+'px;
	display:inline;
	"></div>'),k;
	$this.wrap( wd ).before( c );
	opt.displayInput && $this.css({
	'width':opt.width/2+'px','position':'absolute','margin-top':(opt.width*5/13)+'px','margin-left':'-'+3*opt.width/4+'px','font-size':opt.width/5+'px','border':'none','background':'none','font-family':'Arial','font-weight':'bold','text-align':'center','color':'lightgrey','padding':'0px','-webkit-appearance':'none'}
) || $this.css({
	'width':'0px','visibility':'hidden'}
);
	k = new Knob( c,opt );
	k.onRelease = opt.release;
	k.val( parseInt($this.val()) || 0 );
	k.onChange = function(v){
	$this.val(v);
	opt.change(v);
}
;
	if( !opt.readOnly ){
	c.bind( "mousedown touchstart",function( e ){
	e.preventDefault();
	k.startDrag( e );
}
);
}
else{
	$this.attr('readonly','readonly');
}
}
).parent();
}
Knob = function( c,opt ){
	var v = null,ctx = c[0].getContext("2d"),a = Math.PI*0.0001,PI2 = 2*Math.PI,mx,my,x,y,_self = this;
	this.onChange = function(){
}
this.onRelease = function(){
}
this.val = function(_v){
	if(null!=_v){
	if( v==_v ) return;
	v=_v;
	this.onChange(_v);
	a = (_v-opt.min)*PI2/(opt.max-opt.min);
	opt.draw( a,_v,opt,ctx );
}
else{
	var b = a = Math.atan2( mx-x,-(my-y-opt.width/2) );
	(a<0) && (b=a+PI2);
	_v = Math.round( b*(opt.max-opt.min)/PI2 ) + opt.min;
	return ( _v>opt.max ) ? opt.max:_v;
}
}
this.capture = function(e){
	switch( e.type ){
	case 'mousemove':case 'mousedown':mx = e.pageX;
	my = e.pageY;
	break;
	case 'touchmove':case 'touchstart':mx = e.originalEvent.touches[0].pageX;
	my = e.originalEvent.touches[0].pageY;
	break;
}
this.val( this.val() );
}
this.startDrag = function(e){
	var p = c.position();
	x = p.left+(opt.width/2);
	y = p.top;
	this.capture(e);
	$(document).bind( "mousemove.knob touchmove.knob",function(e){
	_self.capture(e);
}
) .bind( "mouseup.knob touchend.knob",function(){
	$(document).unbind('mousemove.knob touchmove.knob mouseup.knob touchend.knob');
	_self.onRelease(v);
}
);
}
}
}
);
