jQuery数学公式编辑器特效js代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 jQuery数学公式编辑器特效js代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

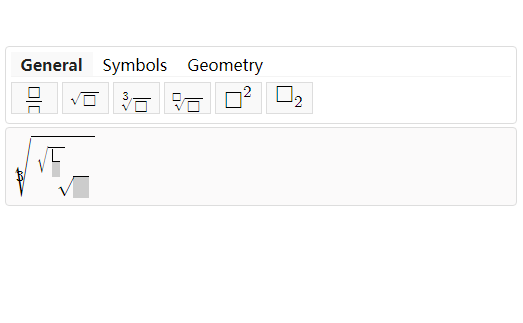

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html lang="zh">
<head>
<meta charset="UTF-8">
<meta http-equiv="X-UA-Compatible" content="IE=edge,chrome=1">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>jQuery数学公式编辑器特效</title>
<link rel="stylesheet" type="text/css" href="css/zzsc.css">
<link href="lib/mathquill.css" rel="stylesheet">
<link href="lib/matheditor.css" rel="stylesheet">
</head>
<body>
<div class="container">
	<div id="answer"></div>
</div>
<script src="js/jquery-1.11.0.min.js" type="text/javascript"></script>
<script src="lib/mathquill.min.js"></script>
<script src="lib/matheditor.js"></script>
<script type="text/javascript">
	var me = new MathEditor('answer');
</script>
</body>
</html>

JS代码(matheditor.js):

function MathEditor(id){
	this.MQ=null;
	jq = window.jQuery;
	this.answerMathField = ((typeof this.answerMathField != 'undefined')? this.answerMathField:{
}
);
	this.answerSpan = ((typeof this.answerSpan != 'undefined')? this.answerSpan:{
}
);
	this.topElements ={
	wrapper:null,toolbar:null,buttons:null}
this.template = 'default';
	this.default_toolbar_buttons = ["fraction","square_root","cube_root","root",'superscript','subscript','multiplication','division','plus_minus','pi','degree','not_equal','greater_equal','less_equal','greater_than','less_than','angle','parallel_to','perpendicular','triangle','parallelogram'];
	this.default_toolbar_tabs = ["General","Symbols","Geometry"];
	button_meta ={
	"fraction":{
	latex:"\\frac{
}
{
}
",moveto:"Up",movefor:1,tab:1,icon:'\\frac{
	□}
{
	□}
'}
,"mix_fraction":{
	latex:"\\frac{
}
{
}
",moveto:"Up",movefor:1,tab:1,icon:'\\frac{
	□}
{
	□}
'}
,"square_root":{
	latex:"\\sqrt{
}
",moveto:"Left",movefor:1,tab:1,icon:'\\sqrt{
	\\square}
'}
,"cube_root":{
	latex:"\\sqrt[3]{
}
",moveto:"Left",movefor:1,tab:1,icon:'\\sqrt[3]{
	\\square}
'}
,"root":{
	latex:"\\sqrt[{
}
]{
}
",moveto:"Left",movefor:2,tab:1,icon:'\\sqrt[□]{
	\\square}
'}
,"superscript":{
	latex:"\\^{
}
",moveto:"Up",movefor:1,tab:1,icon:'\\square^2'}
,"subscript":{
	latex:"\\_{
}
",moveto:"Down",movefor:1,tab:1,icon:'\\square_{
	2}
'}
,"multiplication":{
	latex:"\\times",tab:2,icon:'\\times'}
,"division":{
	latex:"\\div",tab:2,icon:'\\div'}
,"plus_minus":{
	latex:"\\pm",tab:2,icon:'\\pm'}
,"pi":{
	latex:"\\pi",tab:2,icon:'\\pi'}
,"degree":{
	latex:"\\degree",tab:2,icon:'\\degree'}
,"not_equal":{
	latex:"\\neq",tab:2,icon:'\\neq'}
,"greater_equal":{
	latex:"\\geq",tab:2,icon:'\\geq'}
,"less_equal":{
	latex:"\\leq",tab:2,icon:'\\leq'}
,"greater_than":{
	latex:"\\gt",tab:2,icon:'\\gt'}
,"less_than":{
	latex:"\\lt",tab:2,icon:'\\lt'}
,"angle":{
	latex:"\\angle",tab:3,icon:'\\angle'}
,"parallel_to":{
	latex:"\\parallel",tab:3,icon:'\\parallel'}
,"perpendicular":{
	latex:"\\perpendicular",tab:3,icon:'\\perpendicular'}
,"triangle":{
	latex:"\\triangle",tab:3,icon:'\\triangle'}
,"parallelogram":{
	latex:"\\parallelogram",tab:3,icon:'\\parallelogram'}
,}
;
	this.MQ = MathQuill.getInterface(2);
	this.answerSpan = document.getElementById(id);
	var config ={
	handlers:{
	edit:function(){
}
,enter:function(){
}
,}
}
;
	this.answerMathField= this.MQ.MathField(this.answerSpan,config);
	setToolbar(this.default_toolbar_buttons,this.answerSpan,this.answerMathField,this.topElements,this.default_toolbar_tabs);
	basicStyling(this.answerSpan,this.topElements);
}
MathEditor.prototype.getValue = function(){
	return this.answerMathField.latex();
}
;
	MathEditor.prototype.buttons = function(btns){
	this.default_toolbar_buttons = btns;
	setToolbar(this.default_toolbar_buttons,this.answerSpan,this.answerMathField,this.topElements);
}
;
	MathEditor.prototype.removeButtons = function(btns){
	var default_toolbar_buttons = this.default_toolbar_buttons;
	btns.forEach(function(o){
	var index = default_toolbar_buttons.indexOf(o);
	if(index>=0)this.default_toolbar_buttons.splice(index,1);
}
);
	setToolbar(this.default_toolbar_buttons,this.answerSpan,this.answerMathField,this.topElements);
}
;
	MathEditor.prototype.styleMe = function(options){
	jq(this.answerSpan).css('background',options.textarea_background).css('color',options.textarea_foreground).css('border-color',options.textarea_border).css('width',options.width).css('min-width',options.width).css('min-height',options.height).css('height',options.height);
	answerSpanWidth = jq(this.answerSpan).width();
	this.topElements.wrapper.css('width',parseInt(options.width)+10).css('min-width',parseInt(options.width)+10);
	this.topElements.toolbar.css('background',options.toolbar_background).css('color',options.toolbar_foreground).css('border-color',options.toolbar_border).css('min-width',options.width).css('width',parseInt(options.width));
	this.topElements.buttons.css('background',options.button_background).css('border-color',options.button_border);
}
;
	MathEditor.prototype.setTemplate = function(name){
	if (name=='keypad'){
	jq(this.answerSpan).css('position','absolute');
	this.topElements.toolbar.css('position','absolute').css('width','220');
	answerSpanHeight = jq(this.answerSpan).height();
	this.topElements.toolbar.css('margin-top',answerSpanHeight+13).hide();
	this.topElements.buttons.css('margin-right','10').css('margin-bottom','10');
	keypad_animation(this.answerSpan,this.topElements);
}
else{
	console.warn("MathEditor:"+name+" is an invalid template name");
}
}
;
	keypad_animation = function(answer_span,top_elements){
	evt=null;
	document.onmousemove = function (e){
	e = e || window.event;
	evt = e;
}
jq(answer_span).focusin(function(o){
	top_elements.toolbar.show();
}
);
	jq(answer_span).focusout(function(o){
	if(evt.target.className=='op-btn' || evt.target.className=='matheditor-toolbar-answer' || evt.target.className=='matheditor-btn-img'){
}
else{
	top_elements.toolbar.hide();
}
}
);
}
setToolbar = function(btns,answer_span,answer_math_field,top_elements,tabs){
	if (answer_span && top_elements.toolbar){
	jq(answer_span).unwrap();
	top_elements.toolbar.remove();
}
required_buttons = getUniq(btns);
	required_tabs = getUniq(tabs);
	editor_id = $(answer_span).attr('id')wrapper_html = "<div class='matheditor-wrapper-"+editor_id+"'></div>";
	html = "<div class='matheditor-toolbar-"+editor_id+"'>";
	html += "<ul class='tabs'>";
	required_tabs.forEach(function(o,idx){
	if(idx==0){
	html += "<li class='tab-link current' data-tab='tab-"+(idx+1).toString()+"'>"+o+"</li>";
}
else{
	html += "<li class='tab-link' data-tab='tab-"+(idx+1).toString()+"'>"+o+"</li>";
}
}
);
	html += "</ul>";
	required_tabs.forEach(function(o,idx){
	if(idx==0){
	html += "<div id='tab-"+(idx+1).toString()+"' class='tab-content-me current'>";
}
else{
	html += "<div id='tab-"+(idx+1).toString()+"' class='tab-content-me'>";
}
required_buttons.forEach(function(b){
	if(button_meta[b].tab == idx+1){
	if(button_meta[b]){
	html+="<span id='matheditor-btn-span'><a data-latex='"+button_meta[b].latex+"' data-moveto='"+button_meta[b].moveto+"' data-movefor='"+button_meta[b].movefor+"' id='matheditor-btn-"+b+"' class='op-btn'><span id='selectable-"+b+"' class='op-btn-icon'>"+button_meta[b].icon+"</span></a></span>";
}
else{
	console.warn("MathEditor:'"+b+"' is an invalid button");
}
}
}
);
	html+="</div>"}
);
	html+="</div>";
	jq(answer_span).wrap(wrapper_html);
	jq(html).insertBefore(answer_span);
	top_elements.wrapper = jq(answer_span.parentElement);
	// top_elements.wrapper.hide();
	top_elements.toolbar = jq(answer_span.parentElement.firstChild);
	top_elements.buttons = top_elements.toolbar.find('.op-btn');
	button_task(answer_math_field,top_elements);
	MQN = MathQuill.getInterface(2);
	required_buttons.forEach(function(b,idx){
	if(button_meta[b]){
	var problemSpan = document.getElementById('selectable-'+b);
	MQN.StaticMath(problemSpan);
}
// if(idx+1 == required_buttons.length){
	//setTimeout(function(){
	//top_elements.wrapper.show();
	//}
,1000);
	//}
}
);
	$('ul.tabs li').click(function(){
	var tab_id = $(this).attr('data-tab');
	$('ul.tabs li').removeClass('current');
	$('.tab-content-me').removeClass('current');
	$(this).addClass('current');
	$("#"+tab_id).addClass('current');
}
)}
;
	button_task = function(field,top_elements){
	top_elements.buttons.on('click',function(o){
	latex = jq(this).data('latex');
	field.write(latex);
	field.focus();
	for(var i=1;
	i<=jq(this).data('movefor');
	i++){
	field.keystroke(jq(this).data('moveto'));
}
}
);
}
;
	getUniq = function(arr){
	var uniqueNames = [];
	jq.each(arr,function(i,el){
	if(jq.inArray(el,uniqueNames) === -1) uniqueNames.push(el);
}
);
	return uniqueNames;
}
;
	removeFromArray = function(arr){
	arr.forEach(function(o){
	var index = this.default_toolbar_buttons.indexOf(o);
	if(o>=0)this.default_toolbar_buttons.splice(index,1);
}
);
}
;
	basicStyling = function(answer_span,top_elements){
	jq(answer_span).css('min-width',500);
	jq(answer_span).css('min-height',40);
	jq(answer_span).css('padding',5);
	jq(answer_span).css('background','#fbfafa');
	jq(answer_span).css('font-size','15pt');
	answerSpanWidth = jq(answer_span).width();
	top_elements.wrapper.css('min-width',500+10);
	top_elements.wrapper.css('width',500+10);
	top_elements.toolbar.css('min-width',500);
}
;

CSS代码(matheditor.css):

.op-btn{width:45px;height:30px;background:transparent;border:1px solid #ddd;margin-right:4px;margin-bottom:4px;background:#F9F9F9;cursor:pointer;overflow:hidden;vertical-align:middle;display:inline-block;color:#000000;}
.op-btn:hover{background:#FFF;}
.op-btn .op-btn-icon{width:100%;text-align:center;cursor:pointer;}
div[class^="matheditor-wrapper-"]{/*margin:auto;*/
}
div[class^="matheditor-toolbar-"]{margin-bottom:3px;border:1px solid #ddd;padding:5px;border-radius:4px;background:#FFF;}
div[class^="matheditor-wrapper-"] .mq-editable-field,.mq-math-mode .mq-editable-field{border:1px solid #ddd;border-radius:4px;}
div[class^="matheditor-wrapper-"] .mq-editable-field.mq-focused{border:1px solid #ddd;border-radius:4px;box-shadow:none;}
div[class^="matheditor-wrapper-"] .op-btn img{width:14pt;margin:auto;display:block;position:relative;top:5px;}
div[class^="matheditor-wrapper-"] .mq-root-block,.mq-math-mode .mq-root-block{white-space:initial;word-wrap:break-word;}
div[class^="matheditor-wrapper-"] ul.tabs{margin:0px;padding:0px;list-style:none;border-bottom:1px solid #f4f4f4;margin-bottom:5px;}
div[class^="matheditor-wrapper-"] ul.tabs li{display:inline-block;padding:2px 10px;cursor:pointer;margin:0px;height:20px;}
div[class^="matheditor-wrapper-"] ul.tabs li.current{background:#F9F9F9;color:#222;font-weight:bold;}
div[class^="matheditor-wrapper-"] .tab-content-me{display:none;}
div[class^="matheditor-wrapper-"] .tab-content-me.current{display:inline-block;}
#selectable-cube_root .mq-root-block,#selectable-root .mq-root-block,#selectable-square_root .mq-root-block{padding-top:8px !important;font-size:10pt;}
#tab-2 .mq-root-block,#tab-3 .mq-root-block{padding-top:4px !important;font-size:15pt;}
.mq-math-mode var.mq-f{margin-right:0;margin-left:0;}

CSS代码(zzsc.css):

body,html{font-size:100%;padding:0;margin:0;}
/* Clearfix hack by Nicolas Gallagher:http://nicolasgallagher.com/micro-clearfix-hack/ */
.clearfix:before,.clearfix:after{content:" ";display:table;}
.clearfix:after{clear:both;}
body{font-family:"Microsoft YaHei","Segoe UI","Lucida Grande",Helvetica,Arial,sans-serif;}
.container{width:600px;margin:50px auto;}
