jQuery鼠标拖拽组织结构图代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 jQuery鼠标拖拽组织结构图代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

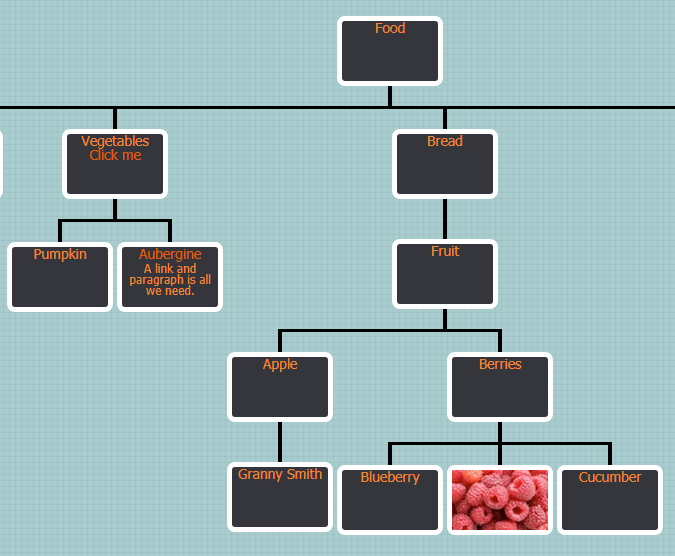

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=ISO-8859-1">
<title>jQuery</title>
<link rel="stylesheet" href="css/bootstrap.min.css"/>
<link rel="stylesheet" href="css/jquery.jOrgChart.css"/>
<link rel="stylesheet" href="css/custom.css"/>
<link href="css/prettify.css" type="text/css" rel="stylesheet" />

<script type="text/javascript" src="prettify.js"></script>

<!-- jQuery includes -->
<script type="text/javascript" src="jquery.min.js"></script>
<script type="text/javascript" src="jquery-ui.min.js"></script>

<script src="jquery.jOrgChart.js"></script>

<script>
jQuery(document).ready(function() {
	$("#org").jOrgChart({
		chartElement : '#chart',
		dragAndDrop  : true
	});
});
</script>
</head>

<body onload="prettyPrint();">


<ul id="org" style="display:none">
<li>
   Food
   <ul>
	 <li id="beer">Beer</li>
	 <li>Vegetables
	   <a href="#" target="_blank">Click me</a>
	   <ul>
		 <li>Pumpkin</li>
		 <li>
			<a href="#" target="_blank">Aubergine</a>
			<p>A link and paragraph is all we need.</p>
		 </li>
	   </ul>
	 </li>
	 <li class="fruit">Fruit
	   <ul>
		 <li>Apple
		   <ul>
			 <li>Granny Smith</li>
		   </ul>
		 </li>
		 <li>Berries
		   <ul>
			 <li>Blueberry</li>
			 <li><img src="images/raspberry.jpg" alt="Raspberry"/></li>
			 <li>Cucumber</li>
		   </ul>
		 </li>
	   </ul>
	 </li>
	 <li>Bread</li>
	 <li class="collapsed">Chocolate
	   <ul>
		 <li>Topdeck</li>
		 <li>Reese's Cups</li>
	   </ul>
	 </li>
   </ul>
 </li>
</ul>
<div id="chart" class="orgChart"></div>
<script>
	jQuery(document).ready(function() {

		/* Custom jQuery for the example */
		$("#show-list").click(function(e){
			e.preventDefault();

			$('#list-html').toggle('fast', function(){
				if($(this).is(':visible')){
					$('#show-list').text('Hide underlying list.');
					$(".topbar").fadeTo('fast',0.9);
				}else{
					$('#show-list').text('Show underlying list.');
					$(".topbar").fadeTo('fast',1);
				}
			});
		});
		$('#list-html').text($('#org').html());
		$("#org").bind("DOMSubtreeModified", function() {
			$('#list-html').text('');

			$('#list-html').text($('#org').html());

			prettyPrint();
		});
	});
</script>
</body>
</html>

CSS代码(custom.css):

body,html,div,p,span,a,h1,h2,h3,h4,h5{margin:0;padding:0;}
body,html{width:100%;}
body{background:url('../images/bkgd.png') repeat top left;color:white;font-family:tahoma;font-weight:lighter;padding-top:40px;}
body p{font-size:14px;}
body p a{font-size:16px;}
h1{color:#E05E00;font-style:italic;}
a{color:#E05E00;text-decoration:none;}
a:hover{text-decoration:underline;}
/* general */
.clear{clear:both;}
/* Header */
.brand{color:#E05E00 !important;font-family:georgia;font-style:italic;}
/* list stuff */
#org{background-color:white;margin:10px;padding:10px;}
#show-list{cursor:pointer;}
/* bootstrap overrides */
.alert-message{margin:2px 0;}
.topbar{position:absolute;}
/* Custom chart styling */
.jOrgChart{margin:10px;padding:20px;}
/* Custom node styling */
.jOrgChart .node{font-size:14px;background-color:#35363B;border-radius:8px;border:5px solid white;color:#F38630;-moz-border-radius:8px;}
.node p{font-family:tahoma;font-size:10px;line-height:11px;padding:2px;}
