js div拖动动画运行轨迹效果代码

版权：原创更新时间：1年以上
[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]
以下是 js div拖动动画运行轨迹效果代码的示例演示效果:
当前平台(PC电脑)
平台:
整屏预览

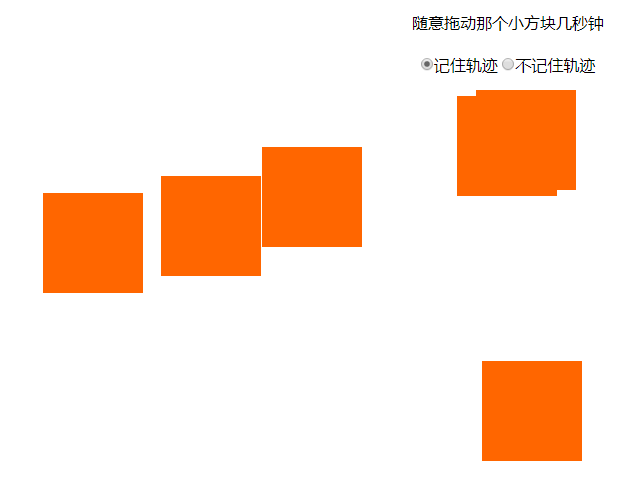

部分效果截图1:
部分效果截图2:
HTML代码(index.html):
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>js div拖动动画运行轨迹效果代码</title>
<style type="text/css">
*{margin:0px;padding:0px;}
#div1{position:relative;left:200px;top:200px;width:100px; height:100px; background-color:#f60;cursor:move;}
</style>

<script type="text/javascript">
var isIE = (document.all)?true:false;

var $ID = function(id){
	return "string"==typeof id?document.getElementById(id):id;
}

var Class = {
	create:function(){
		return function(){
			this.initilize.apply(this,arguments);
		}
	}
}

var Extend = function(destination, source){
	for(var property in source){
		destination[property] = source[property];
	}
}

var Bind = function(object,fun){
	var args = Array.prototype.slice.call(arguments).slice(2);
	return function(){
		return fun.apply(object,args);
	}
}

var BindAsEventListener = function(object,fun){
	var args = Array.prototype.slice.call(arguments).slice(2);
	return function(event){
		return fun.apply(object,[event||window.event].concat(args));
	}
}

function addEventHandler(oTarget, sEventType, fnHandler) {
	if (oTarget.addEventListener) {
		oTarget.addEventListener(sEventType, fnHandler, false);
	} else if (oTarget.attachEvent) {
		oTarget.attachEvent("on" + sEventType, fnHandler);
	} else {
		oTarget["on" + sEventType] = fnHandler;
	}
};

function removeEventHandler(oTarget, sEventType, fnHandler) {
	if (oTarget.removeEventListener) {
		oTarget.removeEventListener(sEventType, fnHandler, false);
	} else if (oTarget.detachEvent) {
		oTarget.detachEvent("on" + sEventType, fnHandler);
	} else {
		oTarget["on" + sEventType] = null;
	}
};

function getNodePosition(node,type){//type="left"or"top"
	var nodeTemp = node;
	var l = 0;
	var t = 0;
	while(nodeTemp!=document.body&&nodeTemp!=null){
		l += nodeTemp.offsetLeft;
		t += nodeTemp.offsetTop;
		nodeTemp = nodeTemp.offsetParent;
	}
	if(type.toLowerCase()=="left") return l;
	else return t;
}
//前面通常都用一个base.js封装
</script>

<script type="text/javascript">
var MyDrag = Class.create();

MyDrag.prototype = {
	initilize:function(obj){
		this.Obj = $ID(obj);
		this._x = this._y = 0;
		this._xx = this._yy = 0;//Move记录坐标
		this.Obj.style.position = "absolute";
		this._pos = [];
		this._ifSavePos = true;
		this._t = null;
		this._speed = 10;
		this._indexMove = 0;//全局的MoveIndex
		this._fnStart = BindAsEventListener(this,this.Start);
		this._fnMove = BindAsEventListener(this,this.Move);
		this._fnStop = Bind(this,this.Stop);
		addEventHandler(this.Obj,"mousedown",this._fnStart);
	},
	Start:function(oEvent){
		if(!this._ifSavePos)
		this._pos = [];
		this.Drag = this.Obj.cloneNode(true);
		if(isIE) this.Drag.style.filter = "alpha(opacity=50)";
		else this.Drag.style.opacity = "0.5";
		this.Obj.parentNode.appendChild(this.Drag);

		this._left1 = this._xx = getNodePosition(this.Obj,"left");
		this._top1 = this._yy = getNodePosition(this.Obj,"top");
		this._x = oEvent.clientX - this.Obj.offsetLeft;
		this._y = oEvent.clientY - this.Obj.offsetTop;
		addEventHandler(document,"mousemove",this._fnMove);
		addEventHandler(document,"mouseup",this._fnStop);
		this._t = setInterval(Bind(this,this.SavePos),10);
	},
	SavePos:function(){//记录坐标点
		this._pos.push(this._xx + "_" + this._yy);
	},
	Move:function(oEvent){
		if(isIE) oEvent.returnValue = false;
		this._xx = oEvent.clientX - this._x;
		this._yy = oEvent.clientY - this._y;
		this.Drag.style.left =  this._xx + "px";
		this.Drag.style.top = this._yy + "px";
	},
	Stop:function(){
		removeEventHandler(document,"mousemove",this._fnMove);
		removeEventHandler(document,"mouseup",this._fnStop);
		this.Obj.parentNode.removeChild(this.Drag);
		this.Obj.style.left = this._xx + "px";
		this.Obj.style.top = this._yy + "px";
		clearInterval(this._t);
		this._fnCloneMove = Bind(this,this.CloneMove);
		this._t = setTimeout(this._fnCloneMove,50);
	},
	CloneMove:function(){
		if(this._indexMove<6){
			new ObjMove({x1:this._left1,y1:this._top1,x2:this._xx,y2:this._yy,pos:this._pos});
			this._indexMove++;
			this._t = setTimeout(this._fnCloneMove,50);
		}else{
			clearTimeout(this._t);
			this._indexMove = 0;
		}
	}
}

var ObjMove = Class.create();
	ObjMove.prototype = {
		initilize:function(options){
		this.SetOptions(options);
		this.Obj = document.createElement("DIV");
		this.Obj.style.cssText = "position:absolute;left:"+ this.options.x1 +"px;top:"+ this.options.y1 +"px;width:100px;height:100px;background-color:#f60;fliter:alpha(opacity=100);opacity:1;";
		document.body.appendChild(this.Obj);
		this.Move2();
	},
	SetOptions: function(options) {
		this.options = {//默认值
			x1:     0,
			y1:  0,
			x2:  0,
			y2:  0,
			pos: []
		};
		Extend(this.options, options || {});
	},
	Move2:function(){
		this._indexMove = 0;
		this._fnMovePos = Bind(this,this.MovePos);
		this._t = setInterval(this._fnMovePos,10);
	},
	MovePos:function(){
		if(this._indexMove>=this.options.pos.length){
			this.options.pos = [];
			document.body.removeChild(this.Obj);
			clearInterval(this._t);
		}else{
			this.Obj.style.left = this.options.pos[this._indexMove].split("_")[0] + "px";
			this.Obj.style.top = this.options.pos[this._indexMove].split("_")[1] + "px";
		}
		this._indexMove++;
	}
}

onload = function(){
	var myDrag = new MyDrag("div1");
	$ID("rad1").onclick = function(){
		myDrag._ifSavePos = true;
	}
	$ID("rad2").onclick = function(){
		myDrag._ifSavePos = false;
	}
}
</script>

</head>
<body>
<center><br>
<div>随意拖动那个小方块几秒钟</div><br>

<label for="rad1"><input type="radio" id="rad1" name="rad" checked="checked"/>记住轨迹</label>

<label for="rad2"><input type="radio" id="rad2" name="rad"/>不记住轨迹</label>

<div id="div1"></div>
</center>
</body>
</html>
