以下是 纯css样式制作的柱状图特效代码 的示例演示效果:

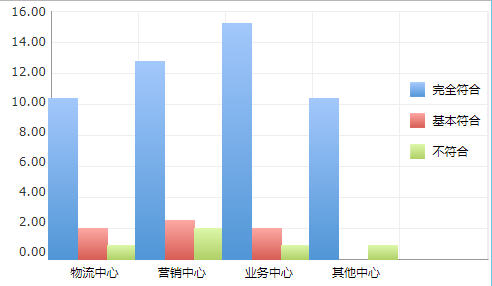

部分效果截图:
HTML代码(index.html):
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>纯css样式制作的柱状图特效</title>
<link href="css/style.css" type="text/css" rel="stylesheet" />
</head>
<body>
<div class="histogram-container" id="histogram-container">
<!--背景方格-->
<div class="histogram-bg-line">
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
</ul>
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
</ul>
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div><img src="img/zhu1.jpg" width="15" height="15" />  完全符合</div></li>
</ul>
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div><img src="img/zhu2.jpg" width="15" height="15" />  基本符合 </div></li>
</ul>
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div><img src="img/zhu3.jpg" width="15" height="15" />  不符合</div></li>
</ul>
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
</ul>
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
</ul>
<ul>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
<li><div></div></li>
</ul>
</div>
<!--柱状条-->
<div class="histogram-content">
<ul>
<li>
<span class="histogram-box"><a style="height:65%;" title="20%" class="aOne"></a></span>
<span class="name">物流中心</span>
<span class="histogram-box"><a style="height:13%" class="aOne1"title="20%"></a></span>
<span class="name"></span>
<span class="histogram-box"><a style="height:6%"class="aOne2" title="20%"></a></span>
<span class="name"></span>
</li>
<li>
<span class="histogram-box"><a style="height:80%;" title="20%" class="aOne"></a></span>
<span class="name">营销中心</span>
<span class="histogram-box"><a style="height:16%" class="aOne1"title="20%"></a></span>
<span class="name"></span>
<span class="histogram-box"><a style="height:13%"class="aOne2" title="20%"></a></span>
<span class="name"></span>
</li>
<li>
<span class="histogram-box"><a style="height:95%;" title="20%" class="aOne"></a></span>
<span class="name">业务中心</span>
<span class="histogram-box"><a style="height:13%" class="aOne1"title="20%"></a></span>
<span class="name"></span>
<span class="histogram-box"><a style="height:6%"class="aOne2" title="20%"></a></span>
<span class="name"></span>
</li>
<li>
<span class="histogram-box"><a style="height:65%;" title="20%" class="aOne"></a></span>
<span class="name">其他中心</span>
<span class="histogram-box"><a title="20%"></a></span>
<span class="name"></span>
<span class="histogram-box"><a style="height:6%"class="aOne2" title="20%"></a></span>
<span class="name"></span>
</li>
</ul>
</div>
<!--百分比 y轴-->
<div class="histogram-y">
<ul>
<li>16.00</li>
<li>14.00</li>
<li>12.00</li>
<li>10.00</li>
<li>8.00</li>
<li>6.00</li>
<li>4.00</li>
<li>2.00</li>
<li>0.00</li>
</ul>
</div>
</div>
</body>
</html>CSS代码(style.css):
@charset "utf-8";/* CSS Document */
body,div,dl,dt,dd,.mainmenu,ol,li,h1,h2,h3,h4,h5,h6,pre,code,form,fieldset,legend,input,textarea,p,blockquote,th,td,table,ul{margin:0;padding:0;}
body,button,select{font-size:12px;font-family:Microsoft YaHei,Helvitica,Verdana,Tohoma,Arial,san-serif;margin:0;padding:0;text-decoration:none;}
img{border:0;}
i,em{font-style:normal}
a{text-decoration:none;blr:expression(this.onFocus=this.blur());outline:none;color:#666}
ul,ol,li,dl{list-style-type:none;}
/*柱状图样式*/
.histogram-container{position:relative;margin-left:60px;margin-top:10px;margin-bottom:25px;}
.histogram-bg-line{border:#999 solid;border-width:0 1px 1px 1px;border-right-color:#eee;overflow:hidden;width:99%;}
.histogram-bg-line ul{overflow:hidden;border:#eee solid;border-width:1px 0 0 0;}
.histogram-bg-line li{float:left;width:20%;/*根据.histogram-bg-line下的ul里面li标签的个数来控制比例*/
overflow:hidden;}
.histogram-bg-line li div{border-right:1px #eee solid;}
.histogram-content{position:absolute;left:0px;top:0;width:99%;height:100%;}
.histogram-content ul{height:100%;}
.histogram-content li{float:left;height:100%;width:20%;/*根据直方图的个数来控制这个width比例*/
text-align:center;position:relative;}
.histogram-box{position:relative;display:inline-block;height:100%;width:26px;}
.histogram-content li a{position:absolute;bottom:0;right:0;display:block;width:30px;}
.histogram-content li .name{position:absolute;bottom:-20px;left:0px;white-space:nowrap;display:inline-block;width:100%;font-size:12px;}
.histogram-y{position:absolute;left:-60px;top:-10px;font:12px/1.8 verdana,arial;}
.histogram-y li{text-align:right;width:55px;padding-right:5px;color:#333;}
.histogram-bg-line li div,.histogram-y li{height:30px;/*控制单元格的高度及百分比的高度，使百分数与线条对齐*/
}
.histogram-box .aOne{FILTER:progid:DXImageTransform.Microsoft.Gradient(gradientType=0,startColorStr=#a3c8fc,endColorStr=#5196d7);/*IE 6 7 8*/
background:-ms-linear-gradient(top,#a3c8fc,#5196d7);/* IE 10 */
background:-moz-linear-gradient(top,#a3c8fc,#f6f6f8);/*火狐*/
background:-webkit-gradient(linear,0% 0%,0% 100%,from(#a3c8fc),to(#f6f6f8));/*谷歌*/
background:-webkit-gradient(linear,0% 0%,0% 100%,from(#a3c8fc),to(#5196d7));/* Safari 4-5,Chrome 1-9*/
background:-webkit-linear-gradient(top,#a3c8fc,#5196d7);/*Safari5.1 Chrome 10+*/
background:-o-linear-gradient(top,#a7cbfe,#5196d7);/*Opera 11.10+*/
}
.histogram-box .aOne1{FILTER:progid:DXImageTransform.Microsoft.Gradient(gradientType=0,startColorStr=#fea9a5,endColorStr=#d75d54);/*IE 6 7 8*/
background:-ms-linear-gradient(top,#fea9a5,#d75d54);/* IE 10 */
background:-moz-linear-gradient(top,#fea9a5,#d75d54);/*火狐*/
background:-webkit-gradient(linear,0% 0%,0% 100%,from(#fea9a5),to(#d75d54));/*谷歌*/
background:-webkit-gradient(linear,0% 0%,0% 100%,from(#fea9a5),to(#d75d54));/* Safari 4-5,Chrome 1-9*/
background:-webkit-linear-gradient(top,#fea9a5,#d75d54);/*Safari5.1 Chrome 10+*/
background:-o-linear-gradient(top,#fea9a5,#d75d54);/*Opera 11.10+*/
}
.histogram-box .aOne2{FILTER:progid:DXImageTransform.Microsoft.Gradient(gradientType=0,startColorStr=#ddf8aa,endColorStr=#b0d067);/*IE 6 7 8*/
background:-ms-linear-gradient(top,#ddf8aa,#b0d067);/* IE 10 */
background:-moz-linear-gradient(top,#ddf8aa,#b0d067);/*火狐*/
background:-webkit-gradient(linear,0% 0%,0% 100%,from(#ddf8aa),to(#b0d067));/*谷歌*/
background:-webkit-gradient(linear,0% 0%,0% 100%,from(#ddf8aa),to(#b0d067));/* Safari 4-5,Chrome 1-9*/
background:-webkit-linear-gradient(top,#ddf8aa,#b0d067);/*Safari5.1 Chrome 10+*/
background:-o-linear-gradient(top,#ddf8aa,#b0d067);/*Opera 11.10+*/
}
.histogram-bg-line div{line-height:30px}
.histogram-bg-line div img{position:relative;top:3px;padding-left:10px}
