纯CSS3实现齿轮加载动画代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是纯CSS3实现齿轮加载动画代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

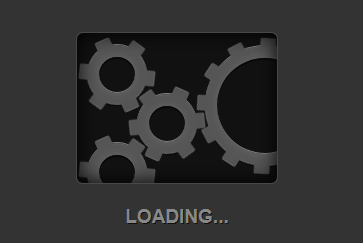

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html>

<head>
  <meta charset="UTF-8">
  <title>纯CSS3实现齿轮加载动画</title>
    <link rel="stylesheet" href="css/style.css" media="screen" type="text/css" />
</head>

<body>
  <div class="container">
  <div class="gearbox">
  <div class="overlay"></div>
    <div class="gear one">
      <div class="gear-inner">
        <div class="bar"></div>
        <div class="bar"></div>
        <div class="bar"></div>
      </div>
    </div>
    <div class="gear two">
      <div class="gear-inner">
        <div class="bar"></div>
        <div class="bar"></div>
        <div class="bar"></div>
      </div>
    </div>
    <div class="gear three">
      <div class="gear-inner">
        <div class="bar"></div>
        <div class="bar"></div>
        <div class="bar"></div>
      </div>
    </div>
    <div class="gear four large">
      <div class="gear-inner">
        <div class="bar"></div>
        <div class="bar"></div>
        <div class="bar"></div>
        <div class="bar"></div>
        <div class="bar"></div>
        <div class="bar"></div>
      </div>
    </div>
  </div>
  <h1>Loading...</h1>
</div>
</body>
</html>

CSS代码(style.css):

*{-moz-box-sizing:border-box;-webkit-box-sizing:border-box;box-sizing:border-box;}
html{height:100%;}
body{background:#333333;position:relative;height:100%;margin:0px;}
@-webkit-keyframes clockwise{0%{-moz-transform:rotate(0deg);-ms-transform:rotate(0deg);-webkit-transform:rotate(0deg);transform:rotate(0deg);}
100%{-moz-transform:rotate(360deg);-ms-transform:rotate(360deg);-webkit-transform:rotate(360deg);transform:rotate(360deg);}
}
@-moz-keyframes clockwise{0%{-moz-transform:rotate(0deg);-ms-transform:rotate(0deg);-webkit-transform:rotate(0deg);transform:rotate(0deg);}
100%{-moz-transform:rotate(360deg);-ms-transform:rotate(360deg);-webkit-transform:rotate(360deg);transform:rotate(360deg);}
}
@-webkit-keyframes counter-clockwise{0%{-moz-transform:rotate(0deg);-ms-transform:rotate(0deg);-webkit-transform:rotate(0deg);transform:rotate(0deg);}
100%{-moz-transform:rotate(-360deg);-ms-transform:rotate(-360deg);-webkit-transform:rotate(-360deg);transform:rotate(-360deg);}
}
@-moz-keyframes counter-clockwise{0%{-moz-transform:rotate(0deg);-ms-transform:rotate(0deg);-webkit-transform:rotate(0deg);transform:rotate(0deg);}
100%{-moz-transform:rotate(-360deg);-ms-transform:rotate(-360deg);-webkit-transform:rotate(-360deg);transform:rotate(-360deg);}
}
.container{position:absolute;top:50%;left:50%;margin-left:-100px;height:150px;width:200px;margin-top:-75px;}
.gearbox{background:#111111;height:150px;width:200px;position:relative;border:none;overflow:hidden;-moz-border-radius:6px;-webkit-border-radius:6px;border-radius:6px;-moz-box-shadow:0px 0px 0px 1px rgba(255,255,255,0.1);-webkit-box-shadow:0px 0px 0px 1px rgba(255,255,255,0.1);box-shadow:0px 0px 0px 1px rgba(255,255,255,0.1);}
.gearbox .overlay{-moz-border-radius:6px;-webkit-border-radius:6px;border-radius:6px;content:"";position:absolute;top:0;left:0;width:100%;height:100%;z-index:10;-moz-box-shadow:inset 0px 0px 20px black;-webkit-box-shadow:inset 0px 0px 20px black;box-shadow:inset 0px 0px 20px black;-moz-transition:background 0.2s;-o-transition:background 0.2s;-webkit-transition:background 0.2s;transition:background 0.2s;}
.gearbox.turn .overlay{background:transparent;}
.gear{position:absolute;height:60px;width:60px;-moz-box-shadow:0px -1px 0px 0px #888888,0px 1px 0px 0px black;-webkit-box-shadow:0px -1px 0px 0px #888888,0px 1px 0px 0px black;box-shadow:0px -1px 0px 0px #888888,0px 1px 0px 0px black;-moz-border-radius:30px;-webkit-border-radius:30px;border-radius:30px;}
.gear.large{height:120px;width:120px;-moz-border-radius:60px;-webkit-border-radius:60px;border-radius:60px;}
.gear.large:after{height:96px;width:96px;-moz-border-radius:48px;-webkit-border-radius:48px;border-radius:48px;margin-left:-48px;margin-top:-48px;}
.gear.one{top:12px;left:10px;}
.gear.two{top:61px;left:60px;}
.gear.three{top:110px;left:10px;}
.gear.four{top:13px;left:128px;}
.gear:after{content:"";position:absolute;height:36px;width:36px;-moz-border-radius:36px;-webkit-border-radius:36px;border-radius:36px;background:#111111;top:50%;left:50%;margin-left:-18px;margin-top:-18px;z-index:3;-moz-box-shadow:0px 0px 10px rgba(255,255,255,0.1),inset 0px 0px 10px rgba(0,0,0,0.1),inset 0px 2px 0px 0px #080808,inset 0px -1px 0px 0px #888888;-webkit-box-shadow:0px 0px 10px rgba(255,255,255,0.1),inset 0px 0px 10px rgba(0,0,0,0.1),inset 0px 2px 0px 0px #080808,inset 0px -1px 0px 0px #888888;box-shadow:0px 0px 10px rgba(255,255,255,0.1),inset 0px 0px 10px rgba(0,0,0,0.1),inset 0px 2px 0px 0px #080808,inset 0px -1px 0px 0px #888888;}
.gear-inner{position:relative;height:100%;width:100%;background:#555555;-webkit-animation-iteration-count:infinite;-moz-animation-iteration-count:infinite;-moz-border-radius:30px;-webkit-border-radius:30px;border-radius:30px;border:1px solid rgba(255,255,255,0.1);}
.large .gear-inner{-moz-border-radius:60px;-webkit-border-radius:60px;border-radius:60px;}
.gear.one .gear-inner{-webkit-animation:counter-clockwise 3s infinite linear;-moz-animation:counter-clockwise 3s infinite linear;}
.gear.two .gear-inner{-webkit-animation:clockwise 3s infinite linear;-moz-animation:clockwise 3s infinite linear;}
.gear.three .gear-inner{-webkit-animation:counter-clockwise 3s infinite linear;-moz-animation:counter-clockwise 3s infinite linear;}
.gear.four .gear-inner{-webkit-animation:counter-clockwise 6s infinite linear;-moz-animation:counter-clockwise 6s infinite linear;}
.gear-inner .bar{background:#555555;height:16px;width:76px;position:absolute;left:50%;margin-left:-38px;top:50%;margin-top:-8px;-moz-border-radius:2px;-webkit-border-radius:2px;border-radius:2px;border-left:1px solid rgba(255,255,255,0.1);border-right:1px solid rgba(255,255,255,0.1);}
.large .gear-inner .bar{margin-left:-68px;width:136px;}
.gear-inner .bar:nth-child(2){-moz-transform:rotate(60deg);-ms-transform:rotate(60deg);-webkit-transform:rotate(60deg);transform:rotate(60deg);}
.gear-inner .bar:nth-child(3){-moz-transform:rotate(120deg);-ms-transform:rotate(120deg);-webkit-transform:rotate(120deg);transform:rotate(120deg);}
.gear-inner .bar:nth-child(4){-moz-transform:rotate(90deg);-ms-transform:rotate(90deg);-webkit-transform:rotate(90deg);transform:rotate(90deg);}
.gear-inner .bar:nth-child(5){-moz-transform:rotate(30deg);-ms-transform:rotate(30deg);-webkit-transform:rotate(30deg);transform:rotate(30deg);}
.gear-inner .bar:nth-child(6){-moz-transform:rotate(150deg);-ms-transform:rotate(150deg);-webkit-transform:rotate(150deg);transform:rotate(150deg);}
h1{font-family:"Helvetica";text-align:center;text-transform:uppercase;color:#888888;font-size:19px;padding-top:10px;text-shadow:1px 1px 0px #111111;}
