HTML5 Canvas实现水滴效果代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 HTML5 Canvas实现水滴效果代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

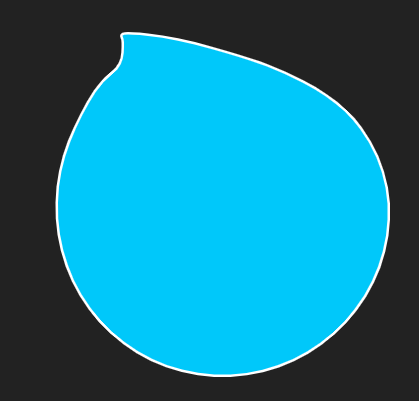

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="utf-8">
<meta http-equiv="X-UA-Compatible" content="chrome=1">
<meta name="apple-mobile-web-app-capable" content="yes"><meta name = "viewport" content = "width = 670">
<title>HTML5 Canvas实现水滴效果代码</title>
<link href="styles.css" rel="stylesheet" media="screen" />
</head>
<body>
<div id="panel">
	<h2>Canvas 水滴</h2>
	<p>双击可以把水滴分离；拖放到一起可以融合；<br/>晃动浏览器可以让水滴跳动；键盘左右键可以切换皮肤；上下键可以变换大小。<br/><b>Shake</b> the browser window to make them bounce.<br/>Use the keyboard <b><a id="keyboardUp" href="#">up</a> / <a id="keyboardDown" href="#">down</a></b> arrows to change blob size and<br/>the <b><a id="keyboardLeft" href="#">left</a> / <a id="keyboardRight" href="#">right</a></b> arrows to change between skins.</p>
</div>

<canvas id="world"><p class="noCanvas">You need a <a href="#">modern browser</a> to view this.</p></canvas>

<script src="blob.min.js"></script>
<script src="jquery-1.7.2.min.js"></script>
</body>
</html>

JS代码(blob.min.js):

var BlobWorld=new (function(){
	function b(f,h){
	var d=new Blob;
	d.position.x=f.x;
	d.position.y=f.y;
	d.velocity.x=h.x;
	d.velocity.y=h.y;
	d.generateNodes();
	j.push(d)}
function e(f){
	u=f.clientX-(window.innerWidth-g.width)*0.5;
	v=f.clientY-(window.innerHeight-g.height)*0.5}
function i(f){
	f.preventDefault();
	y=true;
	E()}
function k(){
	y=false;
	if(q){
	q.dragNodeIndex=-1;
	q=null}
}
function s(f){
	if(f.touches.length==1){
	f.preventDefault();
	y=true;
	u=f.touches[0].pageX-(window.innerWidth-g.width)*0.5;
	v=f.touches[0].pageY-(window.innerHeight-g.height)*0.5;
	(new Date).getTime()-F<300?G():E();
	F=(new Date).getTime()}
}
function z(f){
	if(f.touches.length==1){
	f.preventDefault();
	u=f.touches[0].pageX-(window.innerWidth-g.width)*0.5;
	v=f.touches[0].pageY-(window.innerHeight-g.height)*0.5}
}
function L(){
	y=false;
	if(q){
	q.dragNodeIndex=-1;
	q=null}
}
function M(){
	G()}
function E(){
	q=j[D(j,{
	x:u,y:v}
)];
	q.dragNodeIndex=D(q.nodes,{
	x:u,y:v}
)}
function G(){
	var f={
	x:u,y:v}
,h=j[D(j,f)];
	distanceBetween(h.position,f)<h.radius+30&&h.quality>8&&j.push(h.split())}
function N(f){
	switch(f.keyCode){
	case 40:A(-10);
	f.preventDefault();
	break;
	case 38:A(10);
	f.preventDefault();
	break;
	case 37:B(-1);
	f.preventDefault();
	break;
	case 39:B(1);
	f.preventDefault();
	break}
}
function O(){
	A(20)}
function P(){
	A(-20)}
function Q(){
	B(-1)}
function R(){
	B(1)}
function B(f){
	w+=f;
	w=w<0?C.length-1:w;
	w=w>C.length-1?0:w;
	document.body.style.backgroundColor=C[w].backgroundColor}
function A(f){
	for(var h=0,d=j.length;
	h<d;
	h++){
	blob=j[h];
	var n=blob.radius;
	blob.radius+=f;
	blob.radius=Math.max(40,Math.min(blob.radius,280));
	blob.radius!=n&&blob.updateNormals()}
}
function D(f,h){
	for(var d=9999,n=9999,a=-1,o=0,r=f.length;
	o<r;
	o++){
	n=distanceBetween(f[o].position,{
	x:h.x,y:h.y}
);
	if(n<d){
	d=n;
	a=o}
}
return a}
function H(){
	g.width=window.innerWidth;
	g.height=window.innerHeight;
	t.width=g.width;
	t.height=g.height;
	g.x=3;
	g.y=3;
	g.width-=6;
	g.height-=6}
function S(){
	var f=C[w],h,d,n,a;
	h=0;
	for(n=j.length;
	h<n;
	h++){
	a=j[h];
	l.clearRect(a.dirtyRegion.left-80,a.dirtyRegion.top-80,a.dirtyRegion.right-a.dirtyRegion.left+160,a.dirtyRegion.bottom-a.dirtyRegion.top+160);
	a.dirtyRegion.reset()}
if(x.blobA!=-1&&x.blobB!=-1){
	h=x.blobA;
	n=x.blobB;
	a=getTime();
	if(j[h]&&j[n])if(a-j[h].lastSplitTime>500&&a-j[n].lastSplitTime>500){
	j[h].merge(j[n]);
	if(q==j[n]&&y)q=j[h];
	j.splice(n,1)}
x.blobA=-1;
	x.blobB=-1}
if(q){
	q.velocity.x+=(u-q.position.x)*0.01;
	q.velocity.y+=(v+100-q.position.y)*0.01}
h=0;
	for(n=j.length;
	h<n;
	h++){
	a=j[h];
	for(d=0;
	d<n;
	d++){
	var o=j[d];
	if(o!=a)if(distanceBetween({
	x:a.position.x,y:a.position.y}
,{
	x:o.position.x,y:o.position.y}
)<a.radius+o.radius){
	x.blobA=a.position.x>o.position.x?h:d;
	x.blobB=a.position.x>o.position.x?d:h}
}
a.velocity.x+=(window.screenX-I)*(0.04+Math.random()*0.1);
	a.velocity.y+=(window.screenY-J)*(0.04+Math.random()*0.1);
	d={
	x:1.035,y:1.035}
;
	if(a.position.x>g.x+g.width){
	a.velocity.x-=(a.position.x-g.width)*0.04;
	d.y+=0.035}
else if(a.position.x<g.x){
	a.velocity.x+=Math.abs(g.x-a.position.x)*0.04;
	d.y+=0.035}
if(a.position.y+a.radius*0.25>g.y+g.height){
	a.velocity.y-=(a.position.y+a.radius*0.25-g.height)*0.04;
	d.x+=0.015}
else if(a.position.y<g.y){
	a.velocity.y+=Math.abs(g.y-a.position.y)*0.04;
	d.x+=0.015}
a.velocity.x+=K.x;
	a.velocity.y+=K.y;
	a.velocity.x/=d.x;
	a.velocity.y/=d.y;
	a.position.x+=a.velocity.x;
	a.position.y+=a.velocity.y;
	var r,c,m,p;
	d=0;
	for(o=a.nodes.length;
	d<o;
	d++){
	c=a.nodes[d];
	c.ghost.x=c.position.x;
	c.ghost.y=c.position.y}
if(a.nodes[a.dragNodeIndex]){
	a.rotation.target=Math.atan2(v-a.position.y-a.radius*4,u-a.position.x);
	a.rotation.current+=(a.rotation.target-a.rotation.current)*0.2;
	a.updateNormals()}
d=0;
	for(o=a.nodes.length;
	d<o;
	d++){
	c=a.nodes[d];
	c.normal.x+=(c.normalTarget.x-c.normal.x)*0.05;
	c.normal.y+=(c.normalTarget.y-c.normal.y)*0.05;
	p={
	x:a.position.x,y:a.position.y}
;
	for(r=0;
	r<c.joints.length;
	r++){
	m=c.joints[r];
	var T=m.node.ghost.y-c.ghost.y-(m.node.normal.y-c.normal.y);
	m.strain.x+=(m.node.ghost.x-c.ghost.x-(m.node.normal.x-c.normal.x)-m.strain.x)*0.3;
	m.strain.y+=(T-m.strain.y)*0.3;
	p.x+=m.strain.x*m.strength;
	p.y+=m.strain.y*m.strength}
p.x+=c.normal.x;
	p.y+=c.normal.y;
	r=getArrayIndexByOffset(a.nodes,a.dragNodeIndex,-1);
	m=getArrayIndexByOffset(a.nodes,a.dragNodeIndex,1);
	if(a.dragNodeIndex!=-1&&(d==a.dragNodeIndex||a.nodes.length>8&&(d==r||d==m))){
	r=d==a.dragNodeIndex?0.7:0.5;
	p.x+=(u-p.x)*r;
	p.y+=(v-p.y)*r}
c.position.x+=(p.x-c.position.x)*0.1;
	c.position.y+=(p.y-c.position.y)*0.1;
	c.position.x=Math.max(Math.min(c.position.x,g.x+g.width),g.x);
	c.position.y=Math.max(Math.min(c.position.y,g.y+g.height),g.y);
	a.dirtyRegion.inflate(c.position.x,c.position.y)}
if(!f.debug){
	l.beginPath();
	l.fillStyle=f.fillStyle;
	l.strokeStyle=f.strokeStyle;
	l.lineWidth=f.lineWidth}
c=getArrayElementByOffset(a.nodes,0,-1);
	p=getArrayElementByOffset(a.nodes,0,0);
	l.moveTo(c.position.x+(p.position.x-c.position.x)/2,c.position.y+(p.position.y-c.position.y)/2);
	d=0;
	for(o=a.nodes.length;
	d<o;
	d++){
	c=getArrayElementByOffset(a.nodes,d,0);
	p=getArrayElementByOffset(a.nodes,d,1);
	if(f.debug){
	l.beginPath();
	l.lineWidth=1;
	l.strokeStyle="#ababab";
	for(r=0;
	r<c.joints.length;
	r++){
	m=c.joints[r];
	l.moveTo(c.position.x,c.position.y);
	l.lineTo(m.node.position.x,m.node.position.y)}
l.stroke();
	l.beginPath();
	l.fillStyle=d==0?"#00ff00":d==a.dragNodeIndex?"ff0000":"#dddddd";
	l.arc(c.position.x,c.position.y,5,0,Math.PI*2,true);
	l.fill()}
else l.quadraticCurveTo(c.position.x,c.position.y,c.position.x+(p.position.x-c.position.x)/2,c.position.y+(p.position.y-c.position.y)/2)}
l.stroke();
	l.fill()}
I=window.screenX;
	J=window.screenY}
var g={
	x:0,y:0,width:window.innerWidth,height:window.innerHeight}
,t,l,j=[],q,I=window.screenX,J=window.screenY,u=g.width*0.5,v=g.height*0.5,y=false,F=0,K={
	x:0,y:1.2}
,x={
	blobA:-1,blobB:-1}
,w=0,C=[{
	fillStyle:"rgba(0,200,250,1.0)",strokeStyle:"#ffffff",lineWidth:5,backgroundColor:"#222222",debug:false}
,{
	fillStyle:"",strokeStyle:"",lineWidth:0,backgroundColor:"#222222",debug:true}
,{
	fillStyle:"rgba(0,0,0,0.1)",strokeStyle:"rgba(255,255,255,1.0)",lineWidth:6,backgroundColor:"#222222",debug:false}
,{
	fillStyle:"rgba(255,60,60,1.0)",strokeStyle:"rgba(0,0,0,1.0)",lineWidth:2,backgroundColor:"#222222",debug:false}
,{
	fillStyle:"rgba(255,255,0,1.0)",strokeStyle:"rgba(0,0,0,1.0)",lineWidth:4,backgroundColor:"#222222",debug:false}
,{
	fillStyle:"rgba(255,255,255,1.0)",strokeStyle:"rgba(0,0,0,1.0)",lineWidth:4,backgroundColor:"#000000",debug:false}
,{
	fillStyle:"rgba(0,0,0,1.0)",strokeStyle:"rgba(0,0,0,1.0)",lineWidth:4,backgroundColor:"#ffffff",debug:false}
];
	this.init=function(){
	if((t=document.getElementById("world"))&&t.getContext){
	l=t.getContext("2d");
	document.addEventListener("mousemove",e,false);
	t.addEventListener("mousedown",i,false);
	t.addEventListener("dblclick",M,false);
	document.addEventListener("mouseup",k,false);
	document.addEventListener("keydown",N,false);
	t.addEventListener("touchstart",s,false);
	t.addEventListener("touchmove",z,false);
	t.addEventListener("touchend",L,false);
	window.addEventListener("resize",H,false);
	document.getElementById("keyboardUp").addEventListener("click",O,false);
	document.getElementById("keyboardDown").addEventListener("click",P,false);
	document.getElementById("keyboardLeft").addEventListener("click",Q,false);
	document.getElementById("keyboardRight").addEventListener("click",R,false);
	b({
	x:g.width*0.15,y:g.height*Math.random()*0.2}
,{
	x:g.width*0.011,y:0}
);
	b({
	x:g.width*0.85,y:g.height*Math.random()*0.2}
,{
	x:-g.width*0.011,y:0}
);
	H();
	setInterval(S,1E3/60)}
}
}
);
	function Region(){
	this.top=this.left=999999;
	this.bottom=this.right=0}
Region.prototype.reset=function(){
	this.top=this.left=999999;
	this.bottom=this.right=0}
;
	Region.prototype.inflate=function(b,e){
	this.left=Math.min(this.left,b);
	this.top=Math.min(this.top,e);
	this.right=Math.max(this.right,b);
	this.bottom=Math.max(this.bottom,e)}
;
	function Blob(){
	this.position={
	x:0,y:0}
;
	this.velocity={
	x:0,y:0}
;
	this.radius=85;
	this.nodes=[];
	this.rotation={
	current:0,target:0}
;
	this.dragNodeIndex=-1;
	this.lastSplitTime=0;
	this.quality=16;
	this.dirtyRegion=new Region}
Blob.prototype.generateNodes=function(){
	this.nodes=[];
	var b,e;
	for(b=0;
	b<this.quality;
	b++){
	e={
	normal:{
	x:0,y:0}
,normalTarget:{
	x:0,y:0}
,position:{
	x:this.position.x,y:this.position.y}
,ghost:{
	x:this.position.x,y:this.position.y}
,angle:0}
;
	this.nodes.push(e)}
this.updateJoints();
	this.updateNormals()}
;
	Blob.prototype.updateJoints=function(){
	for(var b=0;
	b<this.quality;
	b++){
	var e=this.nodes[b];
	e.joints=[];
	e.joints.push(new Joint(getArrayElementByOffset(this.nodes,b,-1),0.4));
	e.joints.push(new Joint(getArrayElementByOffset(this.nodes,b,1),0.4));
	if(this.quality>4){
	e.joints.push(new Joint(getArrayElementByOffset(this.nodes,b,-2),0.4));
	e.joints.push(new Joint(getArrayElementByOffset(this.nodes,b,2),0.4))}
if(this.quality>8){
	e.joints.push(new Joint(getArrayElementByOffset(this.nodes,b,-3),0.4));
	e.joints.push(new Joint(getArrayElementByOffset(this.nodes,b,3),0.4))}
}
}
;
	Blob.prototype.updateNormals=function(){
	var b,e,i;
	for(b=0;
	b<this.quality;
	b++){
	i=this.nodes[b];
	if(this.dragNodeIndex!=-1){
	e=b-Math.round(this.dragNodeIndex);
	e=e<0?this.quality+e:e}
else e=b;
	i.angle=e/this.quality*Math.PI*2+this.rotation.target;
	i.normalTarget.x=Math.cos(i.angle)*this.radius;
	i.normalTarget.y=Math.sin(i.angle)*this.radius;
	if(i.normal.x==0&&i.normal.y==0){
	i.normal.x=i.normalTarget.x;
	i.normal.y=i.normalTarget.y}
}
}
;
	Blob.prototype.split=function(){
	var b=this.radius/10,e=Math.round(this.nodes.length*0.5),i=this.radius*0.5,k=new Blob;
	k.position.x=this.position.x;
	k.position.y=this.position.y;
	k.nodes=[];
	for(var s=0;
	s++<e;
	)k.nodes.push(this.nodes.shift());
	var z=e=0;
	for(s=0;
	s<this.nodes.length;
	s++)e+=this.nodes[s].position.x;
	for(s=0;
	s<k.nodes.length;
	s++)z+=k.nodes[s].position.x;
	k.velocity.x=z>e?b:-b;
	k.velocity.y=this.velocity.y;
	k.radius=i;
	k.quality=k.nodes.length;
	this.velocity.x=e>z?b:-b;
	this.radius=i;
	this.quality=this.nodes.length;
	this.dragNodeIndex=-1;
	this.updateJoints();
	this.updateNormals();
	k.dragNodeIndex=-1;
	k.updateJoints();
	k.updateNormals();
	k.lastSplitTime=getTime();
	this.lastSplitTime=getTime();
	return k}
;
	Blob.prototype.merge=function(b){
	this.velocity.x*=0.5;
	this.velocity.y*=0.5;
	this.velocity.x+=b.velocity.x*0.5;
	for(this.velocity.y+=b.velocity.y*0.5;
	b.nodes.length;
	)this.nodes.push(b.nodes.shift());
	this.quality=this.nodes.length;
	this.radius+=b.radius;
	this.dragNodeIndex=b.dragNodeIndex!=-1?b.dragNodeIndex:this.dragNodeIndex;
	this.updateNormals();
	this.updateJoints()}
;
	function Joint(b,e){
	this.node=b;
	this.strength=e;
	this.strain={
	x:0,y:0}
}
function getArrayIndexByOffset(b,e,i){
	if(b[e+i])return e+i;
	if(e+i>b.length-1)return e-b.length+i;
	if(e+i<0)return b.length+(e+i)}
function getArrayElementByOffset(b,e,i){
	return b[getArrayIndexByOffset(b,e,i)]}
function getTime(){
	return(new Date).getTime()}
function distanceBetween(b,e){
	var i=e.x-b.x,k=e.y-b.y;
	return Math.sqrt(i*i+k*k)}
BlobWorld.init();

CSS代码(styles.css):

body,html{background-color:#222222;}
canvas{}
html{color:#000;background:#222222;}
a{cursor:pointer;}
html,body,div,dl,dt,dd,ul,ol,li,h1,h2,h3,h4,h5,h6,pre,code,form,fieldset,legend,input,textarea,p,blockquote,th,td{margin:0;padding:0;}
table{border-collapse:collapse;border-spacing:0;}
fieldset,img{border:0;}
address,caption,cite,code,dfn,em,strong,th,var{font-style:normal;font-weight:normal;}
li{list-style:none;}
caption,th{text-align:left;}
q:before,q:after{content:'';}
abbr,acronym{border:0;font-variant:normal;}
sup{vertical-align:text-top;}
sub{vertical-align:text-bottom;}
input,textarea,select{font-family:inherit;font-size:inherit;font-weight:inherit;outline-style:none;outline-width:0pt;}
legend{color:#000;}
a:focus,object,h1,h2,h3,h4,h5,h6{-moz-outline-style:none;border:0px;}
strong{font-weight:bold;}
@font-face{font-family:Delicious;font-weight:bold;src:url('../../../assets/fonts/Delicious-Bold.otf');}
body{overflow:hidden;font-family:Georgia,Helvetica,Arial,sans-serif;color:#333333;font-size:11px;}
a,a:hover{transition:all .08s linear;-o-transition:all .08s linear;-moz-transition:all .08s linear;-webkit-transition:all .08s linear;padding:1px;}
p.noCanvas{color:#999999;font-size:24px;text-align:center;margin-top:150px;}
#panel{position:absolute;margin:5px;padding:5px;z-index:99;background-color:#FFFECF;border:1px solid #e1e0af;}
#panel a{color:#333333;background-color:#FFFECF;text-decoration:underline;}
#panel a:hover{color:#FFFECF;background-color:#333333;}
#panel a.versionLink{padding:1px;text-decoration:underline;}
#panel a.versionLink.selected{color:#888888;text-decoration:none;}
#panel p{padding:0px 5px 5px 5px;line-height:1.6em;}
#panel h2{font-size:20px;font-weight:bold;font-family:Delicious,Helvetica,sans-serif;padding:5px 5px 5px 5px;}
#chromeBadge{position:absolute;bottom:0;right:0;padding:4px;}
#sharing{background-color:#FFFECF;position:absolute;top:0;right:0;margin:5px;padding:7px 0 4px 10px;z-index:98;border:1px solid #e1e0af;}
#facebook_button{float:left;}
#retweet_button{float:left;}
#flattr_button{float:right;margin:1px 10px 0 4px;}

附件:下载该文件资源,减少时间成本(增值服务)
