以下是 css3伸缩条形图特效代码 的示例演示效果:

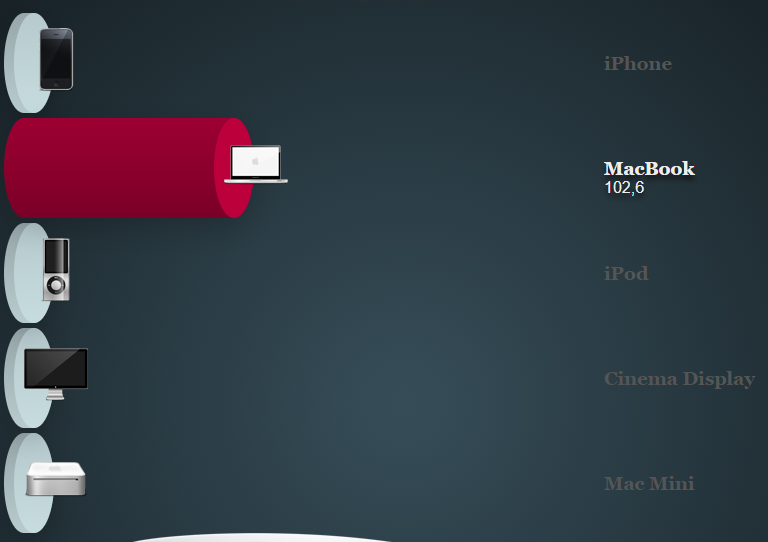

部分效果截图:
HTML代码(index.html):
<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01//EN" "http://www.w3.org/TR/html4/strict.dtd">
<html>
<head>
<meta http-equiv="Content-Type" content="text/html;charset=iso-8859-1"/>
<title>css3</title>
<link rel="stylesheet" type="text/css" href="css/style.css"/>
</head>
<body>
<div id="wrapper">
<h1>css3</h1>
<div id="content">
<ul id="bar">
<li id="iphone">
<div class="top">
<img src="images/iphone.png" alt="iPhone" />
</div>
<div class="bottom">
<div class="infobox">
<h3>iPhone</h3>
<p>80,1</p>
</div>
</div>
</li>
<li id="macbook">
<div class="top">
<img src="images/macbook.png" alt="MacBook" />
</div>
<div class="bottom">
<div class="infobox">
<h3>MacBook</h3>
<p>102,6</p>
</div>
</div>
</li>
<li id="ipod">
<div class="top">
<img src="images/ipod.png" alt="iPod" />
</div>
<div class="bottom">
<div class="infobox">
<h3>iPod</h3>
<p>198,4</p>
</div>
</div>
</li>
<li id="cinema">
<div class="top">
<img src="images/cinema.png" alt="Cinema Display" />
</div>
<div class="bottom">
<div class="infobox">
<h3>Cinema Display</h3>
<p>38,2</p>
</div>
</div>
</li>
<li id="macmini">
<div class="top">
<img src="images/macmini.png" alt="Mac Mini" />
</div>
<div class="bottom">
<div class="infobox">
<h3>Mac Mini</h3>
<p>55,6</p>
</div>
</div>
</li>
</ul>
<div id="apple">
<img src="images/apple.png" alt="Apple Inc" />
<p>Numbers in millions sold<br />*Numbers are fictional</p>
</div>
</div>
</div>
</body>
</html>
CSS代码(style.css):
/* __ _ _ _ / _| | (_) | | _ __ ___ __ _ _ __ ___ ___ | |_ ___ | |_ ___ _ __ ___| |_| '_ ` _ \ / _` | '__/ __/ _ \| _/ _ \| | |/ _ \ | '_ \ / _ \ __|| | | | | | (_| | | | (_| (_) | || (_) | | | (_) || | | | __/ |_|_| |_| |_|\__,_|_| \___\___/|_| \___/|_|_|\___(_)_| |_|\___|\__|*/
/* BASIC RESET */
ul,ol,li,h1,h2,h3,h4,h5,h6,pre,form,body,macbook,p,blockquote,fieldset,input{margin:0;padding:0;}
/* HTML ELEMENTS */
body{background:-moz-radial-gradient(#364D58,#000);background:-webkit-gradient(radial,center center,10,center center,1000,from(#364D58),to(#000));color:#555;background-color:#151f23;}
h1{font:bold 50px Helvetica,Arial,Sans-serif;text-align:center;color:#eee;text-shadow:0px 2px 6px #333;}
h1 small{font-size:20px;text-transform:uppercase;letter-spacing:14px;display:block;color:#ccc;margin-top:10px;}
h2 a{display:block;text-decoration:none;margin:0 0 30px 0;font:italic 40px Georgia,Times,Serif;text-align:center;color:#bfe1f1;text-shadow:0px 2px 6px #333;}
h2 a:hover{color:#90bcd0;}
/* COMMON CLASSES */
.break{clear:both;}
/* WRAPPER */
#wrapper{width:800px;margin:40px auto;}
/* CONTENT */
#content{}
#content h2{font:bold 30px Helvetica,Arial,Sans-serif;color:#eee;text-shadow:0px 2px 6px #333;margin-left:400px;padding-top:20px;}
/* BAR CHART */
#bar{list-style:none;}
#bar li{}
/* Last bottom should have a shadow */
#bar li div.bottom{-moz-box-shadow:0 10px 10px hsla(0,0%,0%,.2);-webkit-box-shadow:0 10px 30px hsla(0,0%,0%,.2);box-shadow:0 10px 30px hsla(0,0%,0%,.2);}
/* Ellipse top */
#bar li div.top{background-color:rgba(213,238,241,0.5);position:relative;float:left;margin-left:10px;width:40px;height:100px;-moz-border-radius:40px/100px;-webkit-border-radius:40px 100px;border-radius:40px/100px;-webkit-transition-property:margin-left;-webkit-transition-duration:500ms;}
#bar li div.top img{margin-left:10px;margin-top:15px;}
/* Bar bottom */
#bar li div.bottom{position:relative;margin:5px 0;width:50px;height:100px;-moz-border-radius:40px/100px;-webkit-border-radius:40px 100px;border-radius:40px/100px;background:-moz-linear-gradient(-90deg,#97a7a9,#b8cbcd);background:-webkit-gradient(linear,0 top,0 bottom,from(#97a7a9),to(#b8cbcd));-webkit-transition-property:width;-webkit-transition-duration:500ms;}
#bar li div.bottom div.infobox{padding:40px 0 0 600px;-webkit-transition-property:color;-webkit-transition-duration:500ms;}
#bar li div.bottom div.infobox h3{font-family:Georgia,serif,Times;}
#bar li div.bottom div.infobox p{font-family:"Lucida Grande",Arial,Helvetica,Sans-Serif;opacity:0;-webkit-transition-property:opacity;-webkit-transition-duration:500ms;}
/* General hover actions */
#bar li:hover div.bottom div.infobox{color:#eee;text-shadow:0px 5px 5px #111;}
#bar li:hover div.bottom div.infobox p{opacity:1;}
/* iPhone bar */
#iphone div.top{z-index:99;}
#iphone div.bottom{z-index:98;height:150px;}
#iphone:hover div.top{z-index:999;background-color:#1f81ac;margin-left:160px;}
#iphone:hover div.bottom{z-index:998;background-color:#1a6c90;width:200px;background:-moz-linear-gradient(-90deg,#1a6c90,#14506b);background:-webkit-gradient(linear,0 top,0 bottom,from(#1a6c90),to(#14506b));}
/* MacBook bar */
#macbook div.top{z-index:97;}
#macbook div.bottom{z-index:96;height:200px;}
#macbook:hover div.top{z-index:997;background-color:#bc003c;margin-left:210px;}
#macbook:hover div.bottom{z-index:996;background-color:#9d0032;width:250px;background:-moz-linear-gradient(-90deg,#9d0032,#7a0027);background:-webkit-gradient(linear,0 top,0 bottom,from(#9d0032),to(#7a0027));}
/* iPod bar */
#ipod div.top{z-index:95;}
#ipod div.bottom{z-index:94;height:250px;}
#ipod:hover div.top{z-index:995;background-color:#d98f23;margin-left:270px;}
#ipod:hover div.bottom{z-index:994;background-color:#b6781e;width:310px;background:-moz-linear-gradient(-90deg,#b6781e,#916018);background:-webkit-gradient(linear,0 top,0 bottom,from(#b6781e),to(#916018));}
/* Cinema Display bar */
#cinema div.top{z-index:93;}
#cinema div.bottom{z-index:92;height:100px;}
#cinema:hover div.top{z-index:993;background-color:#7da864;margin-left:110px;}
#cinema:hover div.bottom{z-index:992;background-color:#698d54;width:150px;background:-moz-linear-gradient(-90deg,#698d54,#506b40);background:-webkit-gradient(linear,0 top,0 bottom,from(#698d54),to(#506b40));}
/* Mac Mini bar */
#macmini div.top{z-index:91;}
#macmini div.bottom{z-index:90;height:120px;}
#macmini:hover div.top{z-index:991;background-color:#3f1150;margin-left:130px;}
#macmini:hover div.bottom{z-index:990;background-color:#340e43;width:170px;background:-moz-linear-gradient(-90deg,#340e43,#1a0721);background:-webkit-gradient(linear,0 top,0 bottom,from(#340e43),to(#1a0721));}
#apple{clear:both;margin-top:-70px;position:relative;z-index:-999;}
#apple p{float:right;padding-top:247px;}
