以下是 js公司组织架构图控件特效代码 的示例演示效果:

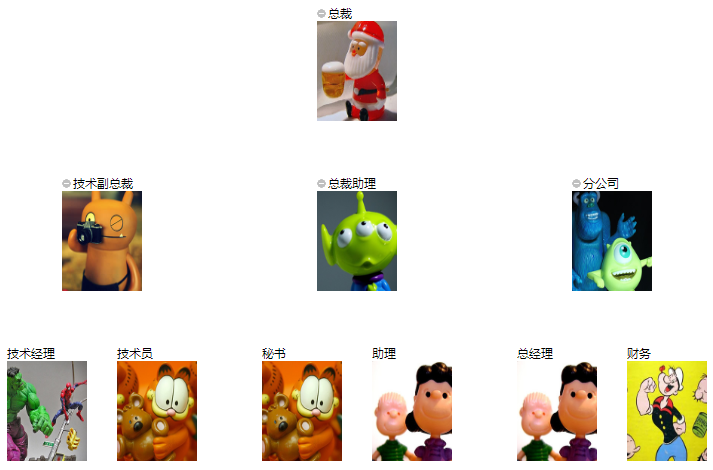

部分效果截图:
HTML代码(index.html):
<html>
<head>
<meta http-equiv="Content-Type" content="text/html; charset=gb2312" />
<title>分享一款ECOTree公司组织结构树控件js特效</title>
<script type="text/javascript" src="ECOTree.js"></script>
<link type="text/css" rel="stylesheet" href="ECOTree.css" />
<style>
v\:*{ behavior:url(#default#VML);}
</style>
<style>
.copy {
font-family : "Verdana";
font-size : 10px;
color : #CCCCCC;
}
</style>
<script>
var myTree = null;
function CreateTree() {
myTree = new ECOTree('myTree','myTreeContainer');
myTree.config.colorStyle = ECOTree.CS_LEVEL;
myTree.config.nodeFill = ECOTree.NF_FLAT;
myTree.config.selectMode = ECOTree.SL_NONE;
//是否允许给节点加链接，是否允许给节点加图片
myTree.config.useTarget = false;
myTree.config.useImg = true;
//设置节点的大小和间隔
myTree.config.defaultNodeWidth = 95;
myTree.config.defaultNodeHeight = 140;
myTree.config.iSubtreeSeparation = 50;
myTree.config.iSiblingSeparation = 15;
myTree.config.iLevelSeparation = 30;
//此处通过从数据库或其它地方读取节点信息，生成添加节点的代码
//参数前三位是必须的；
//第一位是本节点id，第二位是父节点id、根节点的父节点为-1，第三位为节点文本；
//第四位为节点上显示的图片/照片、图片放到img下并在数据库中记录名称即可，未设参数则取默认图片；
//第五位为超链接、最好是访问统一程序传入本节点id；
//第六、七位为节点的个性化宽、高。
myTree.add('01',-1,'总裁','./img/0.jpg','#');
myTree.add('02','01','技术副总裁','./img/1.jpg');
myTree.add('03','01','总裁助理','./img/2.jpg','#',95,130);
myTree.add('04','01','分公司','./img/3.jpg','#',95,130);
myTree.add('0201','02','技术经理','./img/4.jpg','#',95,130);
myTree.add('0202','02','技术员','./img/5.jpg','#',95,130);
myTree.add('0301','03','秘书','./img/5.jpg','#',95,130);
myTree.add('0302','03','助理','./img/6.jpg','#',95,130);
myTree.add('0401','04','总经理','./img/6.jpg','#',95,130);
myTree.add('0402','04','财务','./img/7.jpg','#',95,130);
myTree.UpdateTree();
}
</script>
</head>
<body onLoad="CreateTree();">
<div align="center">
<table border="0" width="746" height="22">
<tr>
<td height="18" width="740">
<div id="myTreeContainer"></div>
</td>
</tr>
</table>
</div>
<br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br><br>
</body>
</html>
JS代码(ECOTree.js):
/*-------------------------------------------------------------------------------------------| ECOTree.js|--------------------------------------------------------------------------------------------| (c) 2006 Emilio Cortegoso Lobato|| ECOTree is a javascript component for tree drawing. It implements the node positioning| algorithm of John Q. Walker II "Positioning nodes for General Trees".|| Basic features include:| - Layout features:Different node sizes,colors,link types,alignments,separations| root node positions,etc...| - Nodes can include a title and an hyperlink,and a hidden metadata.| - Subtrees can be collapsed and expanded at will.| - Single and Multiple selection modes.| - Search nodes using title and metadata as well.|| This code is free source,but you will be kind if you don't distribute modified versions| with the same name,to avoid version collisions. Otherwise,please hack it!|| References:|| Walker II,J. Q.,"A Node-Positioning Algorithm for General Trees"| Software � Practice and Experience 10,1980 553-561.| (Obtained from C++ User's journal. Feb. 1991)|| Last updated:2006-10-26| Version:1.0|| guozc updated:2009-10-20| version:1.1 ���ӽڵ�����ʾͼƬ�������ù���\------------------------------------------------------------------------------------------*/
ECONode = function (id,pid,dsc,img,target,w,h,c,bc,meta){
this.id = id;
this.pid = pid;
this.dsc = dsc;
this.w = w;
this.h = h;
this.c = c;
this.bc = bc;
this.target = target;
this.img=img;
this.meta = meta;
this.siblingIndex = 0;
this.dbIndex = 0;
this.XPosition = 0;
this.YPosition = 0;
this.prelim = 0;
this.modifier = 0;
this.leftNeighbor = null;
this.rightNeighbor = null;
this.nodeParent = null;
this.nodeChildren = [];
this.isCollapsed = false;
this.canCollapse = false;
this.isSelected = false;
}
ECONode.prototype._getLevel = function (){
if (this.nodeParent.id == -1){
return 0;
}
else return this.nodeParent._getLevel() + 1;
}
ECONode.prototype._isAncestorCollapsed = function (){
if (this.nodeParent.isCollapsed){
return true;
}
else{
if (this.nodeParent.id == -1){
return false;
}
else{
return this.nodeParent._isAncestorCollapsed();
}
}
}
ECONode.prototype._setAncestorsExpanded = function (){
if (this.nodeParent.id == -1){
return;
}
else{
this.nodeParent.isCollapsed = false;
return this.nodeParent._setAncestorsExpanded();
}
}
ECONode.prototype._getChildrenCount = function (){
if (this.isCollapsed) return 0;
if(this.nodeChildren == null) return 0;
else return this.nodeChildren.length;
}
ECONode.prototype._getLeftSibling = function (){
if(this.leftNeighbor != null && this.leftNeighbor.nodeParent == this.nodeParent) return this.leftNeighbor;
else return null;
}
ECONode.prototype._getRightSibling = function (){
if(this.rightNeighbor != null && this.rightNeighbor.nodeParent == this.nodeParent) return this.rightNeighbor;
else return null;
}
ECONode.prototype._getChildAt = function (i){
return this.nodeChildren[i];
}
ECONode.prototype._getChildrenCenter = function (tree){
node = this._getFirstChild();
node1 = this._getLastChild();
return node.prelim + ((node1.prelim - node.prelim) + tree._getNodeSize(node1)) / 2;
}
ECONode.prototype._getFirstChild = function (){
return this._getChildAt(0);
}
ECONode.prototype._getLastChild = function (){
return this._getChildAt(this._getChildrenCount() - 1);
}
ECONode.prototype._drawChildrenLinks = function (tree){
var s = [];
var xa = 0,ya = 0,xb = 0,yb = 0,xc = 0,yc = 0,xd = 0,yd = 0;
var node1 = null;
switch(tree.config.iRootOrientation){
case ECOTree.RO_TOP:xa = this.XPosition + (this.w / 2);
ya = this.YPosition + this.h;
break;
case ECOTree.RO_BOTTOM:xa = this.XPosition + (this.w / 2);
ya = this.YPosition;
break;
case ECOTree.RO_RIGHT:xa = this.XPosition;
ya = this.YPosition + (this.h / 2);
break;
case ECOTree.RO_LEFT:xa = this.XPosition + this.w;
ya = this.YPosition + (this.h / 2);
break;
}
for (var k = 0;
k < this.nodeChildren.length;
k++){
node1 = this.nodeChildren[k];
switch(tree.config.iRootOrientation){
case ECOTree.RO_TOP:xd = xc = node1.XPosition + (node1.w / 2);
yd = node1.YPosition;
xb = xa;
switch (tree.config.iNodeJustification){
case ECOTree.NJ_TOP:yb = yc = yd - tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_BOTTOM:yb = yc = ya + tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_CENTER:yb = yc = ya + (yd - ya) / 2;
break;
}
break;
case ECOTree.RO_BOTTOM:xd = xc = node1.XPosition + (node1.w / 2);
yd = node1.YPosition + node1.h;
xb = xa;
switch (tree.config.iNodeJustification){
case ECOTree.NJ_TOP:yb = yc = yd + tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_BOTTOM:yb = yc = ya - tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_CENTER:yb = yc = yd + (ya - yd) / 2;
break;
}
break;
case ECOTree.RO_RIGHT:xd = node1.XPosition + node1.w;
yd = yc = node1.YPosition + (node1.h / 2);
yb = ya;
switch (tree.config.iNodeJustification){
case ECOTree.NJ_TOP:xb = xc = xd + tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_BOTTOM:xb = xc = xa - tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_CENTER:xb = xc = xd + (xa - xd) / 2;
break;
}
break;
case ECOTree.RO_LEFT:xd = node1.XPosition;
yd = yc = node1.YPosition + (node1.h / 2);
yb = ya;
switch (tree.config.iNodeJustification){
case ECOTree.NJ_TOP:xb = xc = xd - tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_BOTTOM:xb = xc = xa + tree.config.iLevelSeparation / 2;
break;
case ECOTree.NJ_CENTER:xb = xc = xa + (xd - xa) / 2;
break;
}
break;
}
switch(tree.render){
case "CANVAS":tree.ctx.save();
tree.ctx.strokeStyle = tree.config.linkColor;
tree.ctx.beginPath();
switch (tree.config.linkType){
case "M":tree.ctx.moveTo(xa,ya);
tree.ctx.lineTo(xb,yb);
tree.ctx.lineTo(xc,yc);
tree.ctx.lineTo(xd,yd);
break;
case "B":tree.ctx.moveTo(xa,ya);
tree.ctx.bezierCurveTo(xb,yb,xc,yc,xd,yd);
break;
}
tree.ctx.stroke();
tree.ctx.restore();
break;
case "VML":switch (tree.config.linkType){
case "M":s.push('<v:polyline points="');
s.push(xa + ' ' + ya + ' ' + xb + ' ' + yb + ' ' + xc + ' ' + yc + ' ' + xd + ' ' + yd);
s.push('" strokecolor="'+tree.config.linkColor+'"><v:fill on="false" /></v:polyline>');
break;
case "B":s.push('<v:curve from="');
s.push(xa + ' ' + ya + '" control1="' + xb + ' ' + yb + '" control2="' + xc + ' ' + yc + '" to="' + xd + ' ' + yd);
s.push('" strokecolor="'+tree.config.linkColor+'"><v:fill on="false" /></v:curve>');
break;
}
break;
}
}
return s.join('');
}
ECOTree = function (obj,elm){
this.config ={
iMaxDepth:100,iLevelSeparation:40,iSiblingSeparation:40,iSubtreeSeparation:80,iRootOrientation:ECOTree.RO_TOP,iNodeJustification:ECOTree.NJ_TOP,topXAdjustment:0,topYAdjustment:0,render:"AUTO",linkType:"M",linkColor:"blue",nodeColor:"#CCCCFF",nodeFill:ECOTree.NF_GRADIENT,nodeBorderColor:"blue",nodeSelColor:"#FFFFCC",levelColors:["#5555FF","#8888FF","#AAAAFF","#CCCCFF"],levelBorderColors:["#5555FF","#8888FF","#AAAAFF","#CCCCFF"],colorStyle:ECOTree.CS_NODE,useTarget:true,useImg:true,searchMode:ECOTree.SM_DSC,selectMode:ECOTree.SL_MULTIPLE,defaultNodeWidth:80,defaultNodeHeight:40,defaultTarget:'javascript:openlink(this);
',expandedImage:'./img/less.gif',collapsedImage:'./img/plus.gif',transImage:'./img/trans.gif',defaultNodeImg:'./img/0.jpg'}
this.version = "1.1";
this.obj = obj;
this.elm = document.getElementById(elm);
this.self = this;
this.render = (this.config.render == "AUTO" ) ? ECOTree._getAutoRenderMode():this.config.render;
this.ctx = null;
this.canvasoffsetTop = 0;
this.canvasoffsetLeft = 0;
this.maxLevelHeight = [];
this.maxLevelWidth = [];
this.previousLevelNode = [];
this.rootYOffset = 0;
this.rootXOffset = 0;
this.nDatabaseNodes = [];
this.mapIDs ={
}
;
this.root = new ECONode(-1,null,null,2,2);
this.iSelectedNode = -1;
this.iLastSearch = 0;
}
//Constant values//Tree orientationECOTree.RO_TOP = 0;
ECOTree.RO_BOTTOM = 1;
ECOTree.RO_RIGHT = 2;
ECOTree.RO_LEFT = 3;
//Level node alignmentECOTree.NJ_TOP = 0;
ECOTree.NJ_CENTER = 1;
ECOTree.NJ_BOTTOM = 2;
//Node fill typeECOTree.NF_GRADIENT = 0;
ECOTree.NF_FLAT = 1;
//Colorizing styleECOTree.CS_NODE = 0;
ECOTree.CS_LEVEL = 1;
//Search method:Title,metadata or bothECOTree.SM_DSC = 0;
ECOTree.SM_META = 1;
ECOTree.SM_BOTH = 2;
//Selection mode:single,multiple,no selectionECOTree.SL_MULTIPLE = 0;
ECOTree.SL_SINGLE = 1;
ECOTree.SL_NONE = 2;
ECOTree._getAutoRenderMode = function(){
var r = "VML";
var is_ie6 = /msie 6\.0/i.test(navigator.userAgent);
var is_ff = /Firefox/i.test(navigator.userAgent);
if (is_ff) r = "CANVAS";
return r;
}
//CANVAS functions...ECOTree._roundedRect = function (ctx,x,y,width,height,radius){
ctx.beginPath();
ctx.moveTo(x,y+radius);
ctx.lineTo(x,y+height-radius);
ctx.quadraticCurveTo(x,y+height,x+radius,y+height);
ctx.lineTo(x+width-radius,y+height);
ctx.quadraticCurveTo(x+width,y+height,x+width,y+height-radius);
ctx.lineTo(x+width,y+radius);
ctx.quadraticCurveTo(x+width,y,x+width-radius,y);
ctx.lineTo(x+radius,y);
ctx.quadraticCurveTo(x,y,x,y+radius);
ctx.fill();
ctx.stroke();
}
ECOTree._canvasNodeClickHandler = function (tree,target,nodeid){
if (target != nodeid) return;
tree.selectNode(nodeid,true);
}
//Layout algorithmECOTree._firstWalk = function (tree,node,level){
var leftSibling = null;
node.XPosition = 0;
node.YPosition = 0;
node.prelim = 0;
node.modifier = 0;
node.leftNeighbor = null;
node.rightNeighbor = null;
tree._setLevelHeight(node,level);
tree._setLevelWidth(node,level);
tree._setNeighbors(node,level);
if(node._getChildrenCount() == 0 || level == tree.config.iMaxDepth){
leftSibling = node._getLeftSibling();
if(leftSibling != null) node.prelim = leftSibling.prelim + tree._getNodeSize(leftSibling) + tree.config.iSiblingSeparation;
else node.prelim = 0;
}
else{
var n = node._getChildrenCount();
for(var i = 0;
i < n;
i++){
var iChild = node._getChildAt(i);
ECOTree._firstWalk(tree,iChild,level + 1);
}
var midPoint = node._getChildrenCenter(tree);
midPoint -= tree._getNodeSize(node) / 2;
leftSibling = node._getLeftSibling();
if(leftSibling != null){
node.prelim = leftSibling.prelim + tree._getNodeSize(leftSibling) + tree.config.iSiblingSeparation;
node.modifier = node.prelim - midPoint;
ECOTree._apportion(tree,node,level);
}
else{
node.prelim = midPoint;
}
}
}
ECOTree._apportion = function (tree,node,level){
var firstChild = node._getFirstChild();
var firstChildLeftNeighbor = firstChild.leftNeighbor;
var j = 1;
for(var k = tree.config.iMaxDepth - level;
firstChild != null && firstChildLeftNeighbor != null && j <= k;
){
var modifierSumRight = 0;
var modifierSumLeft = 0;
var rightAncestor = firstChild;
var leftAncestor = firstChildLeftNeighbor;
for(var l = 0;
l < j;
l++){
rightAncestor = rightAncestor.nodeParent;
leftAncestor = leftAncestor.nodeParent;
modifierSumRight += rightAncestor.modifier;
modifierSumLeft += leftAncestor.modifier;
}
var totalGap = (firstChildLeftNeighbor.prelim + modifierSumLeft + tree._getNodeSize(firstChildLeftNeighbor) + tree.config.iSubtreeSeparation) - (firstChild.prelim + modifierSumRight);
if(totalGap > 0){
var subtreeAux = node;
var numSubtrees = 0;
for(;
subtreeAux != null && subtreeAux != leftAncestor;
subtreeAux = subtreeAux._getLeftSibling()) numSubtrees++;
if(subtreeAux != null){
var subtreeMoveAux = node;
var singleGap = totalGap / numSubtrees;
for(;
subtreeMoveAux != leftAncestor;
subtreeMoveAux = subtreeMoveAux._getLeftSibling()){
subtreeMoveAux.prelim += totalGap;
subtreeMoveAux.modifier += totalGap;
totalGap -= singleGap;
}
}
}
j++;
if(firstChild._getChildrenCount() == 0) firstChild = tree._getLeftmost(node,0,j);
else firstChild = firstChild._getFirstChild();
if(firstChild != null) firstChildLeftNeighbor = firstChild.leftNeighbor;
}
}
ECOTree._secondWalk = function (tree,node,level,X,Y){
if(level <= tree.config.iMaxDepth){
var xTmp = tree.rootXOffset + node.prelim + X;
var yTmp = tree.rootYOffset + Y;
var maxsizeTmp = 0;
var nodesizeTmp = 0;
var flag = false;
switch(tree.config.iRootOrientation){
case ECOTree.RO_TOP:case ECOTree.RO_BOTTOM:maxsizeTmp = tree.maxLevelHeight[level];
nodesizeTmp = node.h;
break;
case ECOTree.RO_RIGHT:case ECOTree.RO_LEFT:maxsizeTmp = tree.maxLevelWidth[level];
flag = true;
nodesizeTmp = node.w;
break;
}
switch(tree.config.iNodeJustification){
case ECOTree.NJ_TOP:node.XPosition = xTmp;
node.YPosition = yTmp;
break;
case ECOTree.NJ_CENTER:node.XPosition = xTmp;
node.YPosition = yTmp + (maxsizeTmp - nodesizeTmp) / 2;
break;
case ECOTree.NJ_BOTTOM:node.XPosition = xTmp;
node.YPosition = (yTmp + maxsizeTmp) - nodesizeTmp;
break;
}
if(flag){
var swapTmp = node.XPosition;
node.XPosition = node.YPosition;
node.YPosition = swapTmp;
}
switch(tree.config.iRootOrientation){
case ECOTree.RO_BOTTOM:node.YPosition = -node.YPosition - nodesizeTmp;
break;
case ECOTree.RO_RIGHT:node.XPosition = -node.XPosition - nodesizeTmp;
break;
}
if(node._getChildrenCount() != 0) ECOTree._secondWalk(tree,node._getFirstChild(),level + 1,X + node.modifier,Y + maxsizeTmp + tree.config.iLevelSeparation);
var rightSibling = node._getRightSibling();
if(rightSibling != null) ECOTree._secondWalk(tree,rightSibling,level,X,Y);
}
}
ECOTree.prototype._positionTree = function (){
this.maxLevelHeight = [];
this.maxLevelWidth = [];
this.previousLevelNode = [];
ECOTree._firstWalk(this.self,this.root,0);
switch(this.config.iRootOrientation){
case ECOTree.RO_TOP:case ECOTree.RO_LEFT:this.rootXOffset = this.config.topXAdjustment + this.root.XPosition;
this.rootYOffset = this.config.topYAdjustment + this.root.YPosition;
break;
case ECOTree.RO_BOTTOM:case ECOTree.RO_RIGHT:this.rootXOffset = this.config.topXAdjustment + this.root.XPosition;
this.rootYOffset = this.config.topYAdjustment + this.root.YPosition;
}
ECOTree._secondWalk(this.self,this.root,0,0,0);
}
ECOTree.prototype._setLevelHeight = function (node,level){
if (this.maxLevelHeight[level] == null)this.maxLevelHeight[level] = 0;
if(this.maxLevelHeight[level] < node.h) this.maxLevelHeight[level] = node.h;
}
ECOTree.prototype._setLevelWidth = function (node,level){
if (this.maxLevelWidth[level] == null)this.maxLevelWidth[level] = 0;
if(this.maxLevelWidth[level] < node.w) this.maxLevelWidth[level] = node.w;
}
ECOTree.prototype._setNeighbors = function(node,level){
node.leftNeighbor = this.previousLevelNode[level];
if(node.leftNeighbor != null) node.leftNeighbor.rightNeighbor = node;
this.previousLevelNode[level] = node;
}
ECOTree.prototype._getNodeSize = function (node){
switch(this.config.iRootOrientation){
case ECOTree.RO_TOP:case ECOTree.RO_BOTTOM:return node.w;
case ECOTree.RO_RIGHT:case ECOTree.RO_LEFT:return node.h;
}
return 0;
}
ECOTree.prototype._getLeftmost = function (node,level,maxlevel){
if(level >= maxlevel) return node;
if(node._getChildrenCount() == 0) return null;
var n = node._getChildrenCount();
for(var i = 0;
i < n;
i++){
var iChild = node._getChildAt(i);
var leftmostDescendant = this._getLeftmost(iChild,level + 1,maxlevel);
if(leftmostDescendant != null) return leftmostDescendant;
}
return null;
}
ECOTree.prototype._selectNodeInt = function (dbindex,flagToggle){
if (this.config.selectMode == ECOTree.SL_SINGLE){
if ((this.iSelectedNode != dbindex) && (this.iSelectedNode != -1)){
this.nDatabaseNodes[this.iSelectedNode].isSelected = false;
}
this.iSelectedNode = (this.nDatabaseNodes[dbindex].isSelected && flagToggle) ? -1:dbindex;
}
this.nDatabaseNodes[dbindex].isSelected = (flagToggle) ? !this.nDatabaseNodes[dbindex].isSelected:true;
}
ECOTree.prototype._collapseAllInt = function (flag){
var node = null;
for (var n = 0;
n < this.nDatabaseNodes.length;
n++){
node = this.nDatabaseNodes[n];
if (node.canCollapse) node.isCollapsed = flag;
}
this.UpdateTree();
}
ECOTree.prototype._selectAllInt = function (flag){
var node = null;
for (var k = 0;
k < this.nDatabaseNodes.length;
k++){
node = this.nDatabaseNodes[k];
node.isSelected = flag;
}
this.iSelectedNode = -1;
this.UpdateTree();
}
ECOTree.prototype._drawTree = function (){
var s = [];
var node = null;
var color = "";
var border = "";
for (var n = 0;
n < this.nDatabaseNodes.length;
n++){
node = this.nDatabaseNodes[n];
switch (this.config.colorStyle){
case ECOTree.CS_NODE:color = node.c;
border = node.bc;
break;
case ECOTree.CS_LEVEL:var iColor = node._getLevel() % this.config.levelColors.length;
color = this.config.levelColors[iColor];
iColor = node._getLevel() % this.config.levelBorderColors.length;
border = this.config.levelBorderColors[iColor];
break;
}
if (!node._isAncestorCollapsed()){
switch (this.render){
case "CANVAS"://Canvas part...this.ctx.save();
this.ctx.strokeStyle = border;
switch (this.config.nodeFill){
case ECOTree.NF_GRADIENT:var lgradient = this.ctx.createLinearGradient(node.XPosition,0,node.XPosition+node.w,0);
lgradient.addColorStop(0.0,((node.isSelected)?this.config.nodeSelColor:color));
lgradient.addColorStop(1.0,"#F5FFF5");
this.ctx.fillStyle = lgradient;
break;
case ECOTree.NF_FLAT:this.ctx.fillStyle = ((node.isSelected)?this.config.nodeSelColor:color);
break;
}
ECOTree._roundedRect(this.ctx,node.XPosition,node.YPosition,node.w,node.h,5);
this.ctx.restore();
//HTML part...s.push('<div id="' + node.id + '" class="econode" style="{
top:'+(node.YPosition+this.canvasoffsetTop)+';
left:'+(node.XPosition+this.canvasoffsetLeft)+';
width:'+node.w+';
height:'+node.h+';
}
" ');
if (this.config.selectMode != ECOTree.SL_NONE)s.push('onclick="javascript:ECOTree._canvasNodeClickHandler('+this.obj+',event.target.id,\''+node.id+'\');
" ');
s.push('>');
s.push('<font face=Verdana size=1>');
if (node.canCollapse){
s.push('<a id="c' + node.id + '" href="javascript:'+this.obj+'.collapseNode(\''+node.id+'\',true);
" >');
s.push('<img border=0 src="'+((node.isCollapsed) ? this.config.collapsedImage:this.config.expandedImage)+'" >');
s.push('</a>');
s.push('<img src="'+this.config.transImage+'" >');
}
if (node.target && this.config.useTarget){
s.push('<a id="t' + node.id + '" href="'+node.target+'">');
s.push(node.dsc);
s.push('</a>');
}
else{
s.push(node.dsc);
}
s.push('</font>');
s.push('</div>');
break;
case "VML":s.push('<v:roundrect id="' + node.id + '" strokecolor="'+border+'" arcsize="0.18"');
s.push('style="position:absolute;
top:'+node.YPosition+';
left:'+node.XPosition+';
width:'+node.w+';
height:'+node.h+'" ');
if (this.config.selectMode != ECOTree.SL_NONE)s.push('href="javascript:'+this.obj+'.selectNode(\''+node.id+'\',true);
" ');
s.push('>');
s.push('<v:textbox inset="0.5px,0.5px,0.5px,0.5px" ><font face=Verdana size=1>');
if (node.canCollapse){
s.push('<a href="javascript:'+this.obj+'.collapseNode(\''+node.id+'\',true);
" >');
s.push('<img border=0 src="'+((node.isCollapsed) ? this.config.collapsedImage:this.config.expandedImage)+'" >');
s.push('</a>');
s.push('<img src="'+this.config.transImage+'" >');
}
if (node.target && this.config.useTarget){
s.push('<a href="'+node.target+'" target="_new">');
//s.push('<a href="'+node.target+'">');
s.push(node.dsc);
if (node.img && this.config.useImg){
s.push('<br><img src="'+node.img+'" width="80" height="100">');
}
s.push('</a>');
}
else{
s.push(node.dsc);
if (node.img && this.config.useImg){
s.push('<br><img src="'+node.img+'" width="80" height="100">');
}
}
//----------------------s.push('</font></v:textbox>');
switch (this.config.nodeFill){
case ECOTree.NF_GRADIENT:s.push('<v:fill type=gradient color2="'+((node.isSelected)?this.config.nodeSelColor:color)+'" color="#F5FFF5" angle=90 />');
break;
case ECOTree.NF_FLAT:s.push('<v:fill type="solid" color="'+((node.isSelected)?this.config.nodeSelColor:color)+'" />');
break;
}
s.push('<v:shadow type="single" on="true" opacity="0.7" />');
s.push('</v:roundrect>');
break;
}
if (!node.isCollapsed)s.push(node._drawChildrenLinks(this.self));
}
}
return s.join('');
}
ECOTree.prototype.toString = function (){
var s = [];
this._positionTree();
switch (this.render){
case "CANVAS":s.push('<canvas id="ECOTreecanvas" width=2000 height=2000></canvas>');
break;
case "HTML":s.push('<div class="maindiv">');
s.push(this._drawTree());
s.push('</div>');
break;
case "VML":s.push('<v:group coordsize="10000,10000" coordorigin="0,0" style="position:absolute;
width=10000px;
height=10000px;
" >');
s.push(this._drawTree());
s.push('</v:group>');
break;
}
return s.join('');
}
// ECOTree API begins here...ECOTree.prototype.UpdateTree = function (){
this.elm.innerHTML = this;
if (this.render == "CANVAS"){
var canvas = document.getElementById("ECOTreecanvas");
if (canvas && canvas.getContext){
this.canvasoffsetLeft = canvas.offsetLeft;
this.canvasoffsetTop = canvas.offsetTop;
this.ctx = canvas.getContext('2d');
var h = this._drawTree();
var r = this.elm.ownerDocument.createRange();
r.setStartBefore(this.elm);
var parsedHTML = r.createContextualFragment(h);
//this.elm.parentNode.insertBefore(parsedHTML,this.elm)//this.elm.parentNode.appendChild(parsedHTML);
this.elm.appendChild(parsedHTML);
//this.elm.insertBefore(parsedHTML,this.elm.firstChild);
}
}
}
ECOTree.prototype.add = function (id,pid,dsc,img,target,w,h,c,bc,meta){
var nw = w || this.config.defaultNodeWidth;
//Width,height,colors,target and metadata defaults...var nh = h || this.config.defaultNodeHeight;
var color = c || this.config.nodeColor;
var border = bc || this.config.nodeBorderColor;
var tg = (this.config.useTarget) ? ((typeof target == "undefined") ? (this.config.defaultTarget):target):null;
var vImg = (this.config.useImg) ? ((typeof img == "undefined") ? (this.config.defaultNodeImg):img):null;
var metadata = (typeof meta != "undefined")? meta:"";
var pnode = null;
//Search for parent node in databaseif (pid == -1){
pnode = this.root;
}
else{
for (var k = 0;
k < this.nDatabaseNodes.length;
k++){
if (this.nDatabaseNodes[k].id == pid){
pnode = this.nDatabaseNodes[k];
break;
}
}
}
var node = new ECONode(id,pid,dsc,vImg,tg,nw,nh,color,border,metadata);
//New node creation...node.nodeParent = pnode;
//Set it's parentpnode.canCollapse = true;
//It's obvious that now the parent can collapsevar i = this.nDatabaseNodes.length;
//Save it in databasenode.dbIndex = this.mapIDs[id] = i;
this.nDatabaseNodes[i] = node;
var h = pnode.nodeChildren.length;
//Add it as child of it's parentnode.siblingIndex = h;
pnode.nodeChildren[h] = node;
}
ECOTree.prototype.searchNodes = function (str){
var node = null;
var m = this.config.searchMode;
var sm = (this.config.selectMode == ECOTree.SL_SINGLE);
if (typeof str == "undefined") return;
if (str == "") return;
var found = false;
var n = (sm) ? this.iLastSearch:0;
if (n == this.nDatabaseNodes.length) n = this.iLastSeach = 0;
str = str.toLocaleUpperCase();
for (;
n < this.nDatabaseNodes.length;
n++){
node = this.nDatabaseNodes[n];
if (node.dsc.toLocaleUpperCase().indexOf(str) != -1 && ((m == ECOTree.SM_DSC) || (m == ECOTree.SM_BOTH))){
node._setAncestorsExpanded();
this._selectNodeInt(node.dbIndex,false);
found = true;
}
if (node.meta.toLocaleUpperCase().indexOf(str) != -1 && ((m == ECOTree.SM_META) || (m == ECOTree.SM_BOTH))){
node._setAncestorsExpanded();
this._selectNodeInt(node.dbIndex,false);
found = true;
}
if (sm && found){
this.iLastSearch = n + 1;
break;
}
}
this.UpdateTree();
}
ECOTree.prototype.selectAll = function (){
if (this.config.selectMode != ECOTree.SL_MULTIPLE) return;
this._selectAllInt(true);
}
ECOTree.prototype.unselectAll = function (){
this._selectAllInt(false);
}
ECOTree.prototype.collapseAll = function (){
this._collapseAllInt(true);
}
ECOTree.prototype.expandAll = function (){
this._collapseAllInt(false);
}
ECOTree.prototype.collapseNode = function (nodeid,upd){
var dbindex = this.mapIDs[nodeid];
this.nDatabaseNodes[dbindex].isCollapsed = !this.nDatabaseNodes[dbindex].isCollapsed;
if (upd) this.UpdateTree();
}
ECOTree.prototype.selectNode = function (nodeid,upd){
this._selectNodeInt(this.mapIDs[nodeid],true);
if (upd) this.UpdateTree();
}
ECOTree.prototype.setNodeTitle = function (nodeid,title,upd){
var dbindex = this.mapIDs[nodeid];
this.nDatabaseNodes[dbindex].dsc = title;
if (upd) this.UpdateTree();
}
ECOTree.prototype.setNodeMetadata = function (nodeid,meta,upd){
var dbindex = this.mapIDs[nodeid];
this.nDatabaseNodes[dbindex].meta = meta;
if (upd) this.UpdateTree();
}
ECOTree.prototype.setNodeTarget = function (nodeid,target,upd){
var dbindex = this.mapIDs[nodeid];
this.nDatabaseNodes[dbindex].target = target;
if (upd) this.UpdateTree();
}
ECOTree.prototype.setNodeColors = function (nodeid,color,border,upd){
var dbindex = this.mapIDs[nodeid];
if (color) this.nDatabaseNodes[dbindex].c = color;
if (border) this.nDatabaseNodes[dbindex].bc = border;
if (upd) this.UpdateTree();
}
ECOTree.prototype.getSelectedNodes = function (){
var node = null;
var selection = [];
var selnode = null;
for (var n=0;
n<this.nDatabaseNodes.length;
n++){
node = this.nDatabaseNodes[n];
if (node.isSelected){
selnode ={
"id":node.id,"dsc":node.dsc,"meta":node.meta}
selection[selection.length] = selnode;
}
}
return selection;
}
CSS代码(ECOTree.css):
.maingroup{position:absolute;width:980px;height:570px;overflow:scroll;}
.maindiv{position:relative;width:980px;height:570px;overflow:scroll;}
.econode{position:absolute;text-overflow:clip;font-family:Verdana,Geneva,Arial,Helvetica,sans-serif;font-size:xx-small;padding:2px;}
a.ecolink:visited{text-decoration:none;color:black;}
a.ecolink:hover{text-decoration:underline;}
分享到QQ
分享到微博
微信扫一扫
