html5 canvas绘制时钟表时间特效代码

版权：原创更新时间：1年以上

[该文章底部包含文件资源,可根据自己情况,决定是否下载资源使用,时间>金钱,如有需要,立即查看资源]

以下是 html5 canvas绘制时钟表时间特效代码的示例演示效果:

当前平台(PC电脑)

平台:

整屏预览

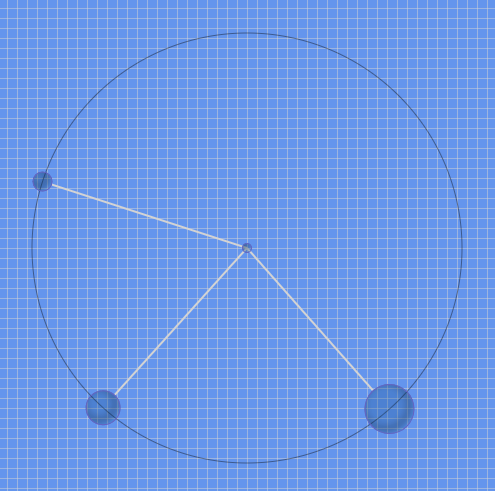

部分效果截图:

HTML代码(index.html):

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
<title>html5 canvas绘制时钟表时间</title>
<style type="text/css">
body,h1,h2,h3,p,quote,small,form,input,ul,li,ol,label,div,canvas{margin:0;padding:0;}
body{color:#dddddd;font-size:13px;background: #302b23;font-family:Arial, Helvetica, sans-serif;}


canvas{background:cornflowerblue;cursor:pointer;box-shadow:3px 3px 6px rgba(0,0,0,0.5);}
</style>

</head>
<body>

<div style="width:500px;height:500px;margin:20px auto 0 auto">

	<canvas width='500' height='500' id='canvas'><canvas>

</div>

<script type="text/javascript" src='js/requestNextAnimationFrame.js'></script>
<script type="text/javascript">
var Sprite=function(name,painter,behaviors){
	if(name!==undefined) this.name=name;
	if(painter!==undefined) this.painter=painter;

	this.top=0;
	this.left=0;
	this.width=0;
	this.height=0;
	this.velocityX=0;
	this.velocityY=0;
	this.visible=true;
	this.animating=false;
	this.behaviors=behaviors||[];

	return this;
};

Sprite.prototype={
	paint:function(context){
		if(this.painter!==undefined&&this.value){
			this.painter.paint(this,context);
		}
	},
	update:function(context,time){
		for(var i=0;i<this.behaviors.length;++i){
			this.behaviors[i].execute(this,context,time);
		}
	}
};

var canvas=document.getElementById('canvas'),
	context=canvas.getContext('2d'),

	clock_radius=canvas.width/2-35,
	hour_hand=55,
	ball=new Sprite('ball',ballPainter),
	ballPainter={
		paint:function(sprite,context){
			var x=sprite.left+sprite.width/2,
				y=sprite.top+sprite.height/2,
				radius=sprite.width/2,
				width=sprite.width,
				height=sprite.height;
			context.save();
			context.beginPath();
			context.arc(x,y,radius,0,Math.PI*2,false);
			context.clip();

			context.shadowColor='rgb(0,0,0)';
			context.shadowOffsetX=-4;
			context.shadowOffsetY=-4;
			context.shadowBlur=8;

			context.lineWidth=2;
			context.strokeStyle='rgb(100,100,195)';
			context.fillStyle='rgba(30,144,255,0.15)';
			context.fill();
			context.stroke();
			context.restore();
		}
	};


	function drawGrid(color,stepx,stepy){
		context.strokeStyle=color;
		context.lineWidth=0.5;

		for(var i=stepx+0.5;i<context.canvas.width;i+=stepx){
		context.beginPath();
		context.moveTo(i,0);
		context.lineTo(i,context.canvas.height);
		context.stroke();

		}
		for(var i=stepx+0.5;i<context.canvas.height;i+=stepy){
		context.beginPath();
		context.moveTo(0,i);
		context.lineTo(context.canvas.width,i);
		context.stroke();

		}
	}

	function drawHand(loc,isHour){
		var angle=(Math.PI*2)*(loc/60)-Math.PI/2,
		handRadius=isHour?clock_radius-hour_hand:clock_radius,

		lineEnd={
			x:canvas.width/2+Math.cos(angle)*(handRadius-ball.width/2),
			y:canvas.height/2+Math.sin(angle)*(handRadius-ball.width/2)
		};
		context.beginPath();
		//context.strokeStyle='rgba(0,0,0,0.5)';
		context.lineWidth=2;
		context.moveTo(canvas.width/2,canvas.height/2);
		context.lineTo(lineEnd.x,lineEnd.y);
		context.stroke();

		ball.left=canvas.width/2+Math.cos(angle)*handRadius-ball.width/2;
		ball.top=canvas.height/2+Math.sin(angle)*handRadius-ball.width/2;

		ballPainter.paint(ball,context);

	}

	function  drawClock(){
		drawClockFace();
		drawHands();
	}

	function drawHands(){
		var date=new Date(),
			hour=date.getHours();

		ball.width=20;
		ball.height=20;
		drawHand(date.getSeconds(),false);

		ball.width=35;
		ball.height=35;
		drawHand(date.getMinutes(),false);

		hour=hour>12?hour-12:hour;
		ball.width=50;
		ball.height=50;
		drawHand(hour*5+(date.getMinutes()*5/60));

		ball.width=10;
		ball.height=10;
		ball.left=canvas.width/2-ball.width/2;
		ball.top=canvas.height/2-ball.height/2;
		ballPainter.paint(ball,context);
	}

	function drawClockFace(){
		context.beginPath();
		context.arc(canvas.width/2,canvas.height/2,clock_radius,0,Math.PI*2,false);
		context.save();
		context.strokeStyle='rgba(0,0,0,0.8)';
		context.stroke();
		context.restore();
	}

	function animate(){
		context.clearRect(0,0,canvas.width,canvas.height);
		drawGrid('lightgray',10,10);
		drawClock();
		window.requestNextAnimationFrame(animate);
	}

	context.lineWidth=0.5;
	context.strokeStyle='rgba(0,0,0,0.2)';
	context.shadowStyle='rgba(0,0,0,0.5)';
	context.shadowOffsetX=2;
	context.shadowOffsetY=2;
	context.shadowBlur=4;
	context.stroke();

	window.requestNextAnimationFrame(animate);
	drawGrid('lightgray',10,10);
</script>
</body>
</html>

JS代码(requestNextAnimationFrame.js):

var requestNextAnimationFrame=(function(){
	var originalWebkitMethod,wrapper=undefined,callback=undefined,geckoVersion=0,userAgent=navigator.userAgent,index=0,self=this;
	if(window.webkitRequestAnimationFrame){
	wrapper=function(time){
	if(time===undefined){
	time=+new Date();
}
self.callback(time);
}
;
	originalWebkitMethod=window.webkitRequestAnimationFrame;
	window.webkitRequestAnimationFrame=function(callback,element){
	self.callback=callback;
	originalWebkitMethod(wrapper,element);
}
}
if(window.mozRequestAnimationFrame){
	index=userAgent.indexOf('rv:');
	if(userAgent.indexOf('Gecko')!=-1){
	geckoVersion=userAgent.substr(index+3,3);
	if(geckoVersion==='2.0'){
	window.mozRequestAnimationFrame=undefined;
}
}
}
return window.requestAnimationFrame ||window.webkitRequestAnimationFrame ||window.mozRequestAnimationFrame ||window.oRequestAnimationFrame ||window.msRequestAnimationFrame ||function(callback,element){
	var start,finish;
	window.setTimeout(function(){
	start=+new Date();
	callback(start);
	finish=+new Date();
	self.timeout=1000/60-(finish-start);
}
,self.timeout);
}
;
}
)();
