以下是 TweenMax不规则图片切换特效轮播滚动切换特效代码 的示例演示效果:

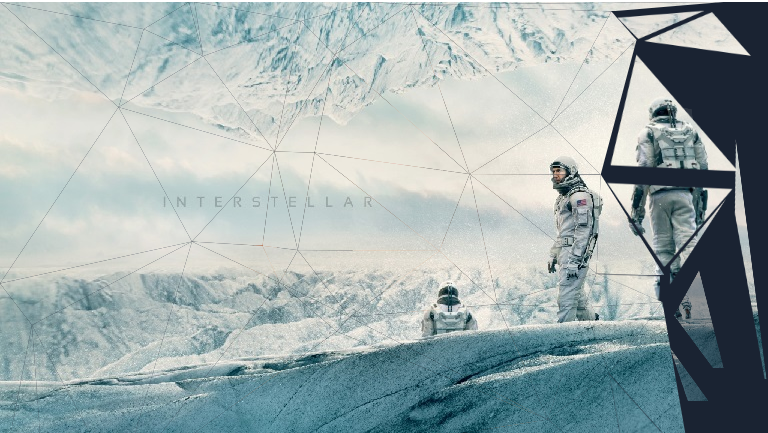

部分效果截图:
HTML代码(index.html):
<!DOCTYPE html>
<html>
<head>
<meta charset="utf-8">
<title>TweenMax不规则图片切换特效</title>
<link rel="stylesheet" type="text/css" href="css/style.css" />
</head>
<body>
<div id="container"> </div>
<script src='js/delaunay.js'></script>
<script src='js/TweenMax.js'></script>
<script>
const TWO_PI = Math.PI * 2;
var images = [],
imageIndex = 0;
var image,
imageWidth = 768,
imageHeight = 485;
var vertices = [],
indices = [],
prevfrag = [],
fragments = [];
var margin = 50;
var container = document.getElementById('container');
var clickPosition = [imageWidth * 0.5, imageHeight * 0.5];
window.onload = function() {
TweenMax.set(container, {perspective:500});
// images from http://www.hdwallpapers.in
var urls = [
'images/1.jpg',
'images/2.jpg',
'images/3.jpg',
'images/4.jpg'
],
image,
loaded = 0;
// very quick and dirty hack to load and display the first image asap
images[0] = image = new Image();
image.onload = function() {
if (++loaded === 1) {
for (var i = 1; i < 4; i++) {
images[i] = image = new Image();
image.src = urls[i];
}
placeImage();
}
};
image.src = urls[0];
};
function placeImage(transitionIn) {
image = images[imageIndex];
if (++imageIndex === images.length) imageIndex = 0;
var num = Math.random();
if(num < .25) {
image.direction = "left";
} else if(num < .5) {
image.direction = "top";
} else if(num < .75) {
image.direction = "bottom";
} else {
image.direction = "right";
}
container.appendChild(image);
image.style.opacity = 0;
if (transitionIn !== false) {
triangulateIn();
}
}
function triangulateIn(event) {
var box = image.getBoundingClientRect(),
top = box.top,
left = box.left;
if(image.direction == "left") {
clickPosition[0] = 0;
clickPosition[1] = imageHeight / 2;
} else if(image.direction == "top") {
clickPosition[0] = imageWidth / 2;
clickPosition[1] = 0;
} else if(image.direction == "bottom") {
clickPosition[0] = imageWidth / 2;
clickPosition[1] = imageHeight;
} else if(image.direction == "right") {
clickPosition[0] = imageWidth;
clickPosition[1] = imageHeight / 2;
}
triangulate();
build();
}
function triangulate() {
for(var i = 0; i < 40; i++) {
x = -margin + Math.random() * (imageWidth + margin * 2);
y = -margin + Math.random() * (imageHeight + margin * 2);
vertices.push([x, y]);
}
vertices.push([0,0]);
vertices.push([imageWidth,0]);
vertices.push([imageWidth, imageHeight]);
vertices.push([0, imageHeight]);
vertices.forEach(function(v) {
v[0] = clamp(v[0], 0, imageWidth);
v[1] = clamp(v[1], 0, imageHeight);
});
indices = Delaunay.triangulate(vertices);
}
function build() {
var p0, p1, p2,
fragment;
var tl0 = new TimelineMax({onComplete:buildCompleteHandler});
for (var i = 0; i < indices.length; i += 3) {
p0 = vertices[indices[i + 0]];
p1 = vertices[indices[i + 1]];
p2 = vertices[indices[i + 2]];
fragment = new Fragment(p0, p1, p2);
var dx = fragment.centroid[0] - clickPosition[0],
dy = fragment.centroid[1] - clickPosition[1],
d = Math.sqrt(dx * dx + dy * dy),
rx = 30 * sign(dy),
ry = 90 * -sign(dx),
delay = d * 0.003 * randomRange(0.9, 1.1);
fragment.canvas.style.zIndex = Math.floor(d).toString();
var tl1 = new TimelineMax();
if(image.direction == "left") {
rx = Math.abs(rx);
ry = 0;
} else if(image.direction == "top") {
rx = 0;
ry = Math.abs(ry);
} else if(image.direction == "bottom") {
rx = 0;
ry = - Math.abs(ry);
} else if(image.direction == "right") {
rx = - Math.abs(rx);
ry = 0;
}
tl1.from(fragment.canvas, 1, {
z:-50,
rotationX:rx,
rotationY:ry,
scaleX:0,
scaleY:0,
ease:Cubic.easeIn
});
tl1.from(fragment.canvas, 0.4,{alpha:0}, 0.6);
tl0.insert(tl1, delay);
fragments.push(fragment);
container.appendChild(fragment.canvas);
}
}
function buildCompleteHandler() {
// add pooling?
image.style.opacity = 1;
image.addEventListener('transitionend', function catchTrans() {
fragments.forEach(function(f) {
container.removeChild(f.canvas);
});
fragments.length = 0;
vertices.length = 0;
indices.length = 0;
placeImage();
this.removeEventListener('transitionend',catchTrans,false);
}, false);
}
//////////////
// MATH UTILS
//////////////
function randomRange(min, max) {
return min + (max - min) * Math.random();
}
function clamp(x, min, max) {
return x < min ? min : (x > max ? max : x);
}
function sign(x) {
return x < 0 ? -1 : 1;
}
//////////////
// FRAGMENT
//////////////
Fragment = function(v0, v1, v2) {
this.v0 = v0;
this.v1 = v1;
this.v2 = v2;
this.computeBoundingBox();
this.computeCentroid();
this.createCanvas();
this.clip();
};
Fragment.prototype = {
computeBoundingBox:function() {
var xMin = Math.min(this.v0[0], this.v1[0], this.v2[0]),
xMax = Math.max(this.v0[0], this.v1[0], this.v2[0]),
yMin = Math.min(this.v0[1], this.v1[1], this.v2[1]),
yMax = Math.max(this.v0[1], this.v1[1], this.v2[1]);
this.box = {
x:Math.round(xMin),
y:Math.round(yMin),
w:Math.round(xMax - xMin),
h:Math.round(yMax - yMin)
};
},
computeCentroid:function() {
var x = (this.v0[0] + this.v1[0] + this.v2[0]) / 3,
y = (this.v0[1] + this.v1[1] + this.v2[1]) / 3;
this.centroid = [x, y];
},
createCanvas:function() {
this.canvas = document.createElement('canvas');
this.canvas.width = this.box.w;
this.canvas.height = this.box.h;
this.canvas.style.width = this.box.w + 'px';
this.canvas.style.height = this.box.h + 'px';
this.canvas.style.left = this.box.x + 'px';
this.canvas.style.top = this.box.y + 'px';
this.ctx = this.canvas.getContext('2d');
},
clip:function() {
this.ctx.save();
this.ctx.translate(-this.box.x, -this.box.y);
this.ctx.beginPath();
this.ctx.moveTo(this.v0[0], this.v0[1]);
this.ctx.lineTo(this.v1[0], this.v1[1]);
this.ctx.lineTo(this.v2[0], this.v2[1]);
this.ctx.closePath();
this.ctx.clip();
this.ctx.drawImage(image, 0, 0);
this.ctx.restore();
}
};//@ sourceURL=pen.js
</script>
</body>
</html>JS代码(delaunay.js):
var Delaunay;
(function (){
"use strict";
var EPSILON = 1.0 / 1048576.0;
function supertriangle(vertices){
var xmin = Number.POSITIVE_INFINITY,ymin = Number.POSITIVE_INFINITY,xmax = Number.NEGATIVE_INFINITY,ymax = Number.NEGATIVE_INFINITY,i,dx,dy,dmax,xmid,ymid;
for (i = vertices.length;
i--;
){
if (vertices[i][0] < xmin) xmin = vertices[i][0];
if (vertices[i][0] > xmax) xmax = vertices[i][0];
if (vertices[i][1] < ymin) ymin = vertices[i][1];
if (vertices[i][1] > ymax) ymax = vertices[i][1];
}
dx = xmax - xmin;
dy = ymax - ymin;
dmax = Math.max(dx,dy);
xmid = xmin + dx * 0.5;
ymid = ymin + dy * 0.5;
return [ [xmid - 20 * dmax,ymid - dmax],[xmid,ymid + 20 * dmax],[xmid + 20 * dmax,ymid - dmax] ];
}
function circumcircle(vertices,i,j,k){
var x1 = vertices[i][0],y1 = vertices[i][1],x2 = vertices[j][0],y2 = vertices[j][1],x3 = vertices[k][0],y3 = vertices[k][1],fabsy1y2 = Math.abs(y1 - y2),fabsy2y3 = Math.abs(y2 - y3),xc,yc,m1,m2,mx1,mx2,my1,my2,dx,dy;
/* Check for coincident points */
if (fabsy1y2 < EPSILON && fabsy2y3 < EPSILON) throw new Error("Eek! Coincident points!");
if (fabsy1y2 < EPSILON){
m2 = -((x3 - x2) / (y3 - y2));
mx2 = (x2 + x3) / 2.0;
my2 = (y2 + y3) / 2.0;
xc = (x2 + x1) / 2.0;
yc = m2 * (xc - mx2) + my2;
}
else if (fabsy2y3 < EPSILON){
m1 = -((x2 - x1) / (y2 - y1));
mx1 = (x1 + x2) / 2.0;
my1 = (y1 + y2) / 2.0;
xc = (x3 + x2) / 2.0;
yc = m1 * (xc - mx1) + my1;
}
else{
m1 = -((x2 - x1) / (y2 - y1));
m2 = -((x3 - x2) / (y3 - y2));
mx1 = (x1 + x2) / 2.0;
mx2 = (x2 + x3) / 2.0;
my1 = (y1 + y2) / 2.0;
my2 = (y2 + y3) / 2.0;
xc = (m1 * mx1 - m2 * mx2 + my2 - my1) / (m1 - m2);
yc = (fabsy1y2 > fabsy2y3) ? m1 * (xc - mx1) + my1:m2 * (xc - mx2) + my2;
}
dx = x2 - xc;
dy = y2 - yc;
return{
i:i,j:j,k:k,x:xc,y:yc,r:dx * dx + dy * dy}
;
}
function dedup(edges){
var i,j,a,b,m,n;
for (j = edges.length;
j;
){
b = edges[--j];
a = edges[--j];
for (i = j;
i;
){
n = edges[--i];
m = edges[--i];
if ((a === m && b === n) || (a === n && b === m)){
edges.splice(j,2);
edges.splice(i,2);
break;
}
}
}
}
Delaunay ={
triangulate:function (vertices,key){
var n = vertices.length,i,j,indices,st,open,closed,edges,dx,dy,a,b,c;
/* Bail if there aren't enough vertices to form any triangles. */
if (n < 3) return [];
/* Slice out the actual vertices from the passed objects. (Duplicate the * array even if we don't,though,since we need to make a supertriangle * later on!) */
vertices = vertices.slice(0);
if (key) for (i = n;
i--;
) vertices[i] = vertices[i][key];
/* Make an array of indices into the vertex array,sorted by the * vertices' x-position. */
indices = new Array(n);
for (i = n;
i--;
) indices[i] = i;
indices.sort(function (i,j){
return vertices[j][0] - vertices[i][0];
}
);
/* Next,find the vertices of the supertriangle (which contains all other * triangles),and append them onto the end of a (copy of) the vertex * array. */
st = supertriangle(vertices);
vertices.push(st[0],st[1],st[2]);
/* Initialize the open list (containing the supertriangle and nothing * else) and the closed list (which is empty since we havn't processed * any triangles yet). */
open = [circumcircle(vertices,n + 0,n + 1,n + 2)];
closed = [];
edges = [];
/* Incrementally add each vertex to the mesh. */
for (i = indices.length;
i--;
edges.length = 0){
c = indices[i];
/* For each open triangle,check to see if the current point is * inside it's circumcircle. If it is,remove the triangle and add * it's edges to an edge list. */
for (j = open.length;
j--;
){
/* If this point is to the right of this triangle's circumcircle,* then this triangle should never get checked again. Remove it * from the open list,add it to the closed list,and skip. */
dx = vertices[c][0] - open[j].x;
if (dx > 0.0 && dx * dx > open[j].r){
closed.push(open[j]);
open.splice(j,1);
continue;
}
/* If we're outside the circumcircle,skip this triangle. */
dy = vertices[c][1] - open[j].y;
if (dx * dx + dy * dy - open[j].r > EPSILON) continue;
/* Remove the triangle and add it's edges to the edge list. */
edges.push( open[j].i,open[j].j,open[j].j,open[j].k,open[j].k,open[j].i );
open.splice(j,1);
}
/* Remove any doubled edges. */
dedup(edges);
/* Add a new triangle for each edge. */
for (j = edges.length;
j;
){
b = edges[--j];
a = edges[--j];
open.push(circumcircle(vertices,a,b,c));
}
}
/* Copy any remaining open triangles to the closed list,and then * remove any triangles that share a vertex with the supertriangle,* building a list of triplets that represent triangles. */
for (i = open.length;
i--;
) closed.push(open[i]);
open.length = 0;
for (i = closed.length;
i--;
) if (closed[i].i < n && closed[i].j < n && closed[i].k < n) open.push(closed[i].i,closed[i].j,closed[i].k);
/* Yay,we're done! */
return open;
}
,contains:function (tri,p){
/* Bounding box test first,for quick rejections. */
if ((p[0] < tri[0][0] && p[0] < tri[1][0] && p[0] < tri[2][0]) || (p[0] > tri[0][0] && p[0] > tri[1][0] && p[0] > tri[2][0]) || (p[1] < tri[0][1] && p[1] < tri[1][1] && p[1] < tri[2][1]) || (p[1] > tri[0][1] && p[1] > tri[1][1] && p[1] > tri[2][1])) return null;
var a = tri[1][0] - tri[0][0],b = tri[2][0] - tri[0][0],c = tri[1][1] - tri[0][1],d = tri[2][1] - tri[0][1],i = a * d - b * c;
/* Degenerate tri. */
if (i === 0.0) return null;
var u = (d * (p[0] - tri[0][0]) - b * (p[1] - tri[0][1])) / i,v = (a * (p[1] - tri[0][1]) - c * (p[0] - tri[0][0])) / i;
/* If we're outside the tri,fail. */
if (u < 0.0 || v < 0.0 || (u + v) > 1.0) return null;
return [u,v];
}
}
;
if (typeof module !== "undefined") module.exports = Delaunay;
}
)();
CSS代码(style.css):
@charset "utf-8";canvas{position:absolute;backface-visibility:hidden;-webkit-backface-visibility:hidden;-moz-backface-visibility:hidden;-ms-backface-visibility:hidden;}
img{position:absolute;-webkit-transition:opacity .3s;transition:opacity .3s;}
#container{position:relative;width:768px;height:432px;margin:0 auto;}
